Samsung has 163 LED cabinets in this database, grouped into 32 series. Pixel pitch runs from 0.63 mm to 20.833 mm, and brightness runs from 300 nits to 10,000 nits.

73 are indoor cabinets and 90 are rated for outdoor use. Fixed install leads at 130 of them (80%), alongside 30 rental and 3 cinema models. 15 cabinets sit under 1.5 mm. The finest is the IW006B at 0.63 mm, and the brightest is the XHB080-L Flat-12 at 10,000 nits.

Samsung at a glance

Cabinets
163
Series
32
Pixel pitch
0.63–20.833 mm
Brightness
300–10,000 nits
Cabinet width
240–1,210 mm
Cabinet height
338–1,035 mm
Environments
outdoor (90) and indoor (73)
Applications
fixed-install (130), rental (30) and cinema (3)
LED type
SMD (120), COB (22), DIP (16) and GOB (3)

1–24 of 32 series · 163 cabinets

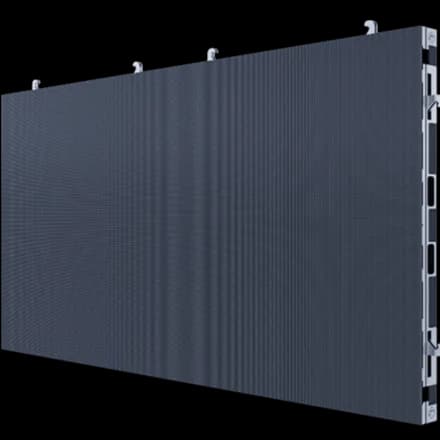

  • Samsung IBF

    Samsung

    IBF

    IndoorFixed install

    Samsung's Indoor LED IBF Display is cleanly designed for modern spaces and easy set-up

    3 variations:

    Pitch
    2.5 mm
    Size
    250×500 mm750×500 mm1000×500 mm
    Nits
    3,500 nits

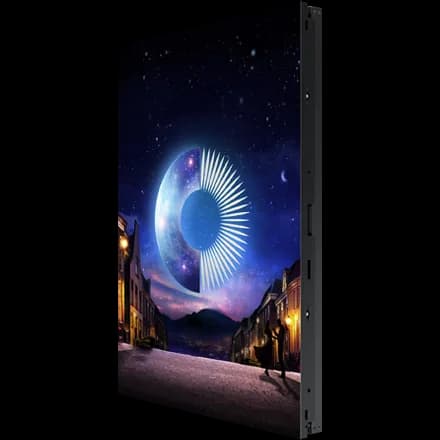

  • Samsung ICD

    Samsung

    ICD

    IndoorCinema

    Samsung Onyx represents the future of cinema. As the world's first cinema LED display, Onyx takes you beyond the ordinary with its true black and vivid color presentation, delivering a cinematic experience unlike anything you have seen before.

    3 variations:

    Pitch
    1.25 mm2.5 mm3.3 mm
    Size
    640×900 mm
    Nits
    300 nits

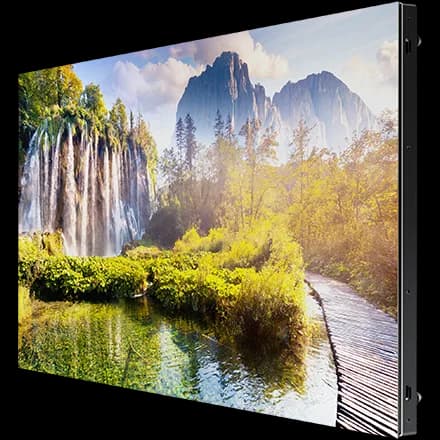

  • Samsung IEA

    Samsung

    IEA

    IndoorFixed install

    Samsung's IEA series LED displays deliver stunning picture quality at a cost-efficient price point. These displays can be custom-fit for specific space requirements so that customers can enjoy a more immersive experience.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    960×540 mm
    Nits
    500 nits

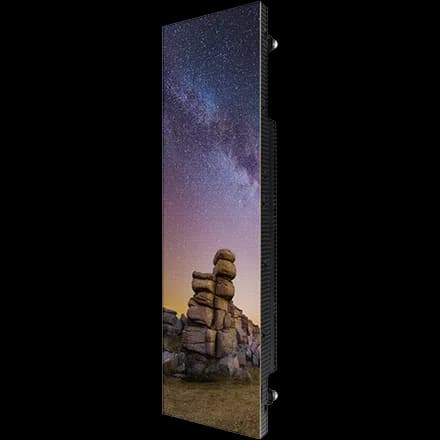

  • Samsung IEA-F

    Samsung

    IEA-F

    IndoorFixed install

    Samsung's IEA series LED displays deliver stunning picture quality at a cost-efficient price point. These displays can be custom-fit for specific space requirements so that customers can enjoy a more immersive experience.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    240×540 mm
    Nits
    500 nits

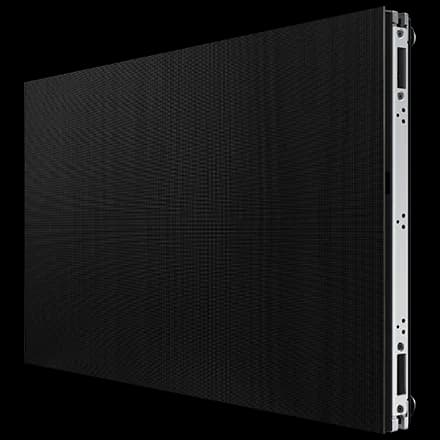

  • Samsung IEF

    Samsung

    IEF

    IndoorFixed install

    Indoor fixed-installation LED cabinet with a 1.25 mm pixel pitch, 600 × 338 mm panels and 600 nit brightness (SMD).

    1 variation:

    Pitch
    1.25 mm
    Size
    600×338 mm
    Nits
    600 nits

    View IE012F specs

  • Samsung IFR

    Samsung

    IFR

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    960×540 mm
    Nits
    800 nits900 nits1,000 nits
  • Samsung IFR-F

    Samsung

    IFR-F

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    240×540 mm
    Nits
    800 nits900 nits1,000 nits

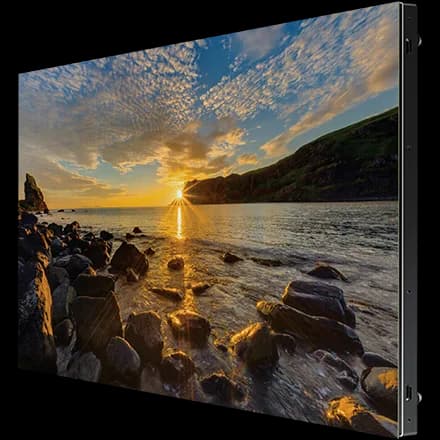

  • Samsung IFR-M

    Samsung

    IFR-M

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    1 variation:

    Pitch
    1.5 mm
    Size
    960×540 mm
    Nits
    1,000 nits

    View IF015R-M specs

  • Samsung IFR-MF

    Samsung

    IFR-MF

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    1 variation:

    Pitch
    1.5 mm
    Size
    240×540 mm
    Nits
    1,000 nits

    View IF015R-MF specs

  • Samsung IFR-V

    Samsung

    IFR-V

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    960×540 mm
    Nits
    800 nits900 nits1,000 nits

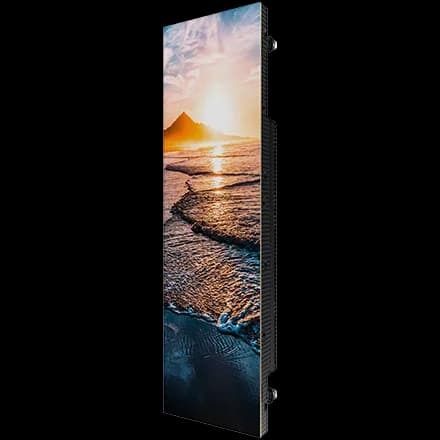

  • Samsung IFR-VF

    Samsung

    IFR-VF

    IndoorFixed install

    LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.

    4 variations:

    Pitch
    1.5 mm2 mm2.5 mm4 mm
    Size
    240×540 mm
    Nits
    800 nits900 nits1,000 nits
  • Samsung IHC

    Samsung

    IHC

    IndoorRental & staging

    Samsung's IHC series indoor LED display creates a brilliant centerpiece in any environment. Crisp, clear visuals capture audience attention regardless of surrounding light such as direct sunlight. The display also allows for easy installation and maintenance to improve business operation efficiency.

    6 variations:

    Pitch
    3.9 mm5.9 mm
    Size
    500×500 mm500×1000 mm
    Nits
    4,000 nits
  • Samsung ISC

    Samsung

    ISC

    IndoorRental & staging

    Uplevel the spectacle with immersive displays. Samsung's ISC series indoor LED display exceeds fans' visual expectations with uninterrupted and brilliant content.

    6 variations:

    Pitch
    3.9 mm5.9 mm
    Size
    500×500 mm500×1000 mm
    Nits
    2,000 nits

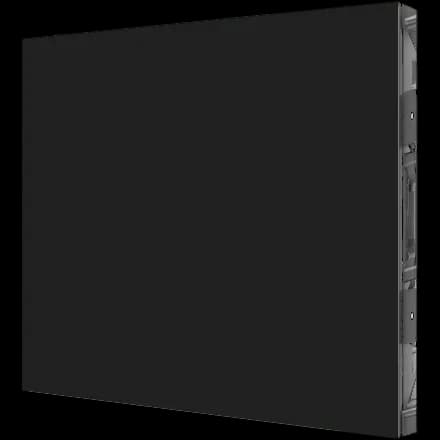

  • Samsung ISC-B

    Samsung

    ISC-B

    IndoorRental & staging

    Uplevel the spectacle with immersive displays. Samsung's ISC series indoor LED display exceeds fans' visual expectations with uninterrupted and brilliant content.

    6 variations:

    Pitch
    3.9 mm5.9 mm
    Size
    500×500 mm500×1000 mm
    Nits
    1,800 nits
  • Samsung IVC

    Samsung

    IVC

    IndoorFixed install

    The ultimate picture quality comes to your studio with The Wall IVC Virtual LED Series. Tap into powerful production capabilities and display stunning scenes on the screen. Samsung's visual technology helps you capture impressive levels of detail, texture, volume, and shades in virtual content creation environments.

    2 variations:

    Pitch
    1.68 mm2.1 mm
    Size
    403×907 mm
    Nits
    1,500 nits
  • Samsung IWA

    Samsung

    IWA

    IndoorFixed install

    The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

    3 variations:

    Pitch
    0.84 mm1.26 mm1.68 mm
    Size
    806×454 mm
    Nits
    500 nits800 nits1,000 nits
  • Samsung IWA-R

    Samsung

    IWA-R

    IndoorFixed install

    The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

    3 variations:

    Pitch
    0.84 mm1.26 mm1.68 mm
    Size
    806×454 mm
    Nits
    500 nits800 nits1,000 nits
  • Samsung IWA-V

    Samsung

    IWA-V

    IndoorFixed install

    The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

    1 variation:

    Pitch
    1.68 mm
    Size
    806×454 mm
    Nits
    1,000 nits

    View IW016A-V specs

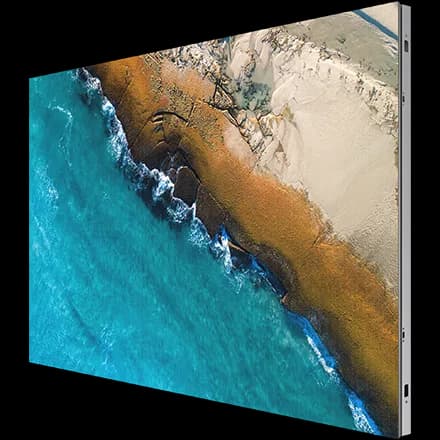

  • Samsung IWB

    Samsung

    IWB

    IndoorFixed install

    Make a bold statement with The Wall. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

    2 variations:

    Pitch
    0.63 mm0.945 mm
    Size
    1210×680 mm
    Nits
    400 nits600 nits

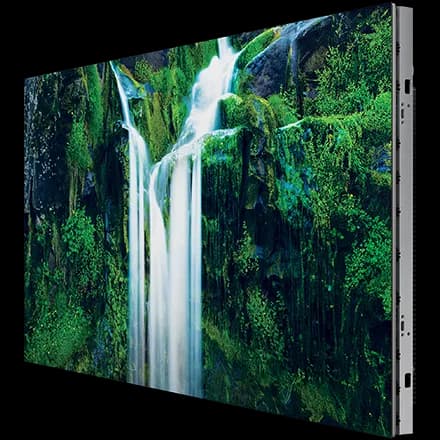

  • Samsung IWC

    Samsung

    IWC

    IndoorFixed install

    The Wall makes a bold, breathtaking statement like no other. There is nothing else quite like it. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.

    3 variations:

    Pitch
    0.84 mm1.26 mm1.68 mm
    Size
    806×454 mm
    Nits
    600 nits1,000 nits1,200 nits
  • Samsung MMF

    Samsung

    MMF

    IndoorFixed install

    The Wall is a pioneer, constantly opening new ways for unmatched visual statements. Leveraging Samsung's rich R&D heritage, it now offers a more business-focused solution while maintaining its signature picture quality. Introducing The Wall M series—designed to revolutionize the way you do business.

    3 variations:

    Pitch
    0.93 mm1.25 mm1.56 mm
    Size
    600×338 mm
    Nits
    600 nits

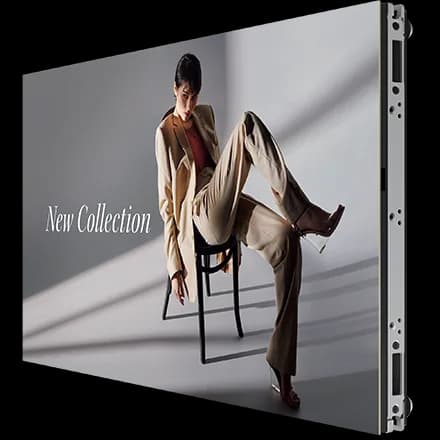

  • Samsung MMF-S

    Samsung

    MMF-S

    IndoorFixed install

    The Wall is a pioneer, constantly opening new ways for unmatched visual statements. Leveraging Samsung's rich R&D heritage, it now offers a more business-focused solution while maintaining its signature picture quality. Introducing The Wall M series—designed to revolutionize the way you do business.

    2 variations:

    Pitch
    1.25 mm1.56 mm
    Size
    600×338 mm
    Nits
    600 nits

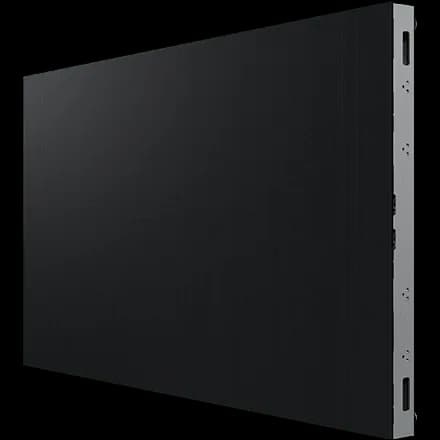

  • Samsung MPF

    Samsung

    MPF

    IndoorFixed install

    Samsung's MPF The Wall Premium Indoor LED Display makes a bold statement for businesses in multiple industries. Black Seal Technology+ delivers unparalleled contrast and the deepest black levels. Fully authentic color validated by PANTONE™, for accurate expression of 2,140 colors.

    3 variations:

    Pitch
    0.84 mm1.26 mm1.68 mm
    Size
    806×454 mm
    Nits
    1,000 nits1,200 nits

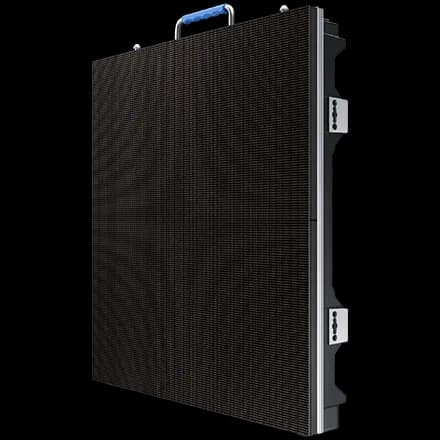

  • Samsung VMR-O

    Samsung

    VMR-O

    OutdoorRental & staging

    State-of-the-art rental solution for any event. Brilliant, bright display in any conditions. Optimum performance in any environment.

    2 variations:

    Pitch
    2.9 mm3.9 mm
    Size
    500×500 mm
    Nits
    4,000 nits4,500 nits

Every Samsung series

Where Samsung panels show up

Frequently asked

What pixel pitches does Samsung make?
This catalogue lists 163 Samsung cabinets from 0.63 mm to 20.833 mm: 15 under 1.5 mm, 55 in the 1.5–4 mm band and 93 at 4 mm and above. The finest is the IW006B at 0.63 mm.
Does Samsung make outdoor LED panels?
Yes — 90 of the 163 Samsung cabinets listed here are rated for outdoor use, reaching 10,000 nits. Check the IP rating on the spec sheet before specifying one for a permanent outdoor site.
How many Samsung series are there?
This catalogue lists 32 Samsung series. The largest is XHB-E, with 24 cabinets from 6.16 to 16.43 mm, followed by XHB-S, XHB-L, XRB, IHC and 27 more.
What are Samsung panels used for?
Mostly fixed install work: 130 of 163 cabinets (80%). The rest cover rental and cinema.
Which Samsung panel is the brightest?
The XHB080-L Flat-12 at 10,000 nits (XHB-L). 88 cabinets in the Samsung range reach 5,000 nits or more, which is the rough threshold for direct sunlight.
