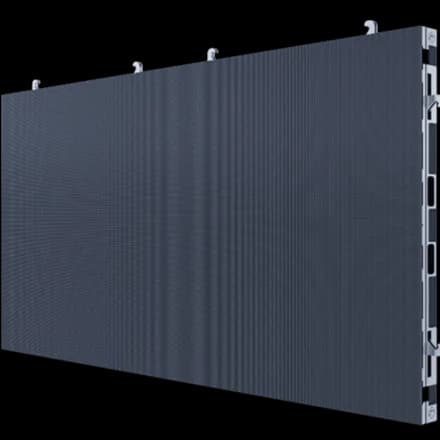

Samsung IB025F-T specs
Samsung's Indoor LED IBF Display is cleanly designed for modern spaces and easy set-up
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 750 × 500 × 42 mm
- Weight
- 10 kg
- Weight per m²
- 26.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 300 × 200 px (3:2)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 3,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- GOB
- Processing depth
- 14 bit
Power & thermal
- Max power
- 229 W
- Average power
- 80 W
- Max power per m²
- 611 W/m²
- Average power per m²
- 213 W/m²
- Thermal load
- 781 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -5 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- EMC Class A
Manufacturer details
- Usage
- window-facing
- Features
- hdr10,hdr10+,vxt
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- IB025F-T
- Weight published
- 10±5%(TBD)
- Color temperature
- 6500K±500K
- Contrast published
- 10,000:1
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH025IBFATA
- Modules per cabinet
- 3 × 2
- Pixel configuration
- SMD 3-in-1 (1R/1G/1B), GoB protective layer
- Brightness published
- 3,500 nit
- Installation options
- flat,concave,inner-l
All variations in the IBF series
All Samsung cabinets →Every Samsung IBF series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IB025F2.5 mm1000×500 mm3,500 nits
- Samsung IB025F-Q2.5 mm250×500 mm3,500 nits
- IB025F-Tthis model2.5 mm750×500 mm3,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 60,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
4,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
4,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,350cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IB025F-T in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IB025F-T draw?
- Each Samsung IB025F-T cabinet draws up to 229 W at full white and about 80 W with typical content — 611 W/m² max. A 10-cabinet wall therefore needs up to 2,290 W plus headroom.
- What is the resolution of the Samsung IB025F-T?
- One cabinet is 300 × 200 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 13 cabinets side by side reach 4K width (≈ 9.75 m).
- How heavy is a Samsung IB025F-T wall?
- A single cabinet weighs 10 kg (26.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 150 kg before mounting structure.
- Is the Samsung IB025F-T suitable for outdoor use?
- No — the Samsung IB025F-T is an indoor cabinet (IP30 front). Its 3,500 nits suit controlled lighting, not direct sun.
