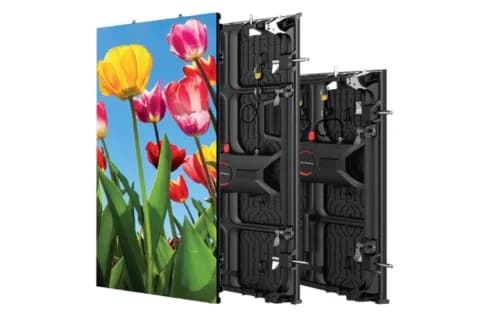

Leyard NEV026 HB specs
The Leyard NEV Series is a Made in Europe LED display for indoor fixed installation LED video walls. The NEV Series displays are available in different sizes, pixel pitches and brightness versions, allowing them to be used in a wide range of indoor applications for advertising and information in large venues and many more.
Physical
- Pixel pitch
- 2.60417 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 68 mm
- Weight
- 12.8 kg
- Weight per m²
- 25.6 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 192 × 384 px (1:2)
- Pixel density
- 147,456 px/m²
- Brightness (calibrated)
- 3,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 140°
- Processing depth
- 16 bit
Power & thermal
- Max power
- 300 W
- Average power
- 100 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 1,024 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, FCC, cTUVus, CB
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Storage temp
- -30 to 60 C
- Frame rates hz
- 50/60
- Cabinet variant
- 500x1000
- Pitch published
- 2.604
- Color temperature
- 3200-9300
- Module dimensions
- 250x250
- Module resolution
- 96x96
- Brightness variant
- high-brightness
- Module composition
- 2x4
- Operating humidity
- 10-90%
All variations in the NEV series
All Leyard cabinets →Every Leyard NEV series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard NEV0191.95312 mm500×1000 mm800 nits
- Leyard NEV0262.60417 mm500×1000 mm1,000 nits
- NEV026 HBthis model2.60417 mm500×1000 mm3,500 nits
- Leyard NEV0292.97619 mm500×1000 mm1,000 nits
- Leyard NEV029 HB2.97619 mm500×1000 mm3,500 nits
- Leyard NEV0393.90625 mm500×1000 mm1,000 nits
- Leyard NEV039 HB3.90625 mm500×1000 mm3,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 73,728 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
3,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
3,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,912cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
800cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
800cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard NEV026 HB in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard NEV026 HB draw?
- Each Leyard NEV026 HB cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
- What is the resolution of the Leyard NEV026 HB?
- One cabinet is 192 × 384 pixels at a 2.60417 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
- How heavy is a Leyard NEV026 HB wall?
- A single cabinet weighs 12.8 kg (25.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 192 kg before mounting structure.
- Is the Leyard NEV026 HB suitable for outdoor use?
- No — the Leyard NEV026 HB is an indoor cabinet (IP30 front). Its 3,500 nits suit controlled lighting, not direct sun.
