What pixel pitches does Sharp make?

This catalogue lists 82 Sharp cabinets from 0.938 mm to 3.906 mm: 41 under 1.5 mm and 41 in the 1.5–4 mm band. The finest is the LD-EC091 at 0.938 mm.

Does Sharp make outdoor LED panels?

No Sharp cabinet in this catalogue is rated for outdoor use — all 82 are indoor panels between 600 and 1,200 nits, built for controlled lighting.

How many Sharp series are there?

This catalogue lists 6 Sharp series. The largest is LD-FE, with 28 cabinets from 0.95 to 3.8 mm, followed by LD-EC, LD-E, LD-FA, LD-D and 1 more.

What are Sharp panels used for?

Every Sharp cabinet listed here is built for fixed install work — all 82 of them.

Which Sharp panel is the brightest?

The LD-FA252 at 1,200 nits (LD-FA). Nothing in the Sharp range listed here reaches 5,000 nits, so treat these as indoor or shaded-site cabinets.

Sharp LED panels

Sharp has 82 LED cabinets in this database, grouped into 6 series. Pixel pitch runs from 0.938 mm to 3.906 mm, and brightness runs from 600 nits to 1,200 nits.

Every cabinet listed here is an indoor, fixed-install panel; no weather-rated models appear in this catalogue. 41 cabinets sit under 1.5 mm. The finest is the LD-EC091 at 0.938 mm, and the brightest is the LD-FA252 at 1,200 nits.

Sharp at a glance

Cabinets: 82
Series: 6
Pixel pitch: 0.938–3.906 mm
Brightness: 600–1,200 nits
Cabinet width: 500–4,907 mm
Cabinet height: 338–2,858 mm
Environments: indoor (82)
Applications: fixed-install (82)
LED type: SMD (48), COB (26) and IMD (8)

1–6 of 6 series · 82 cabinets

Sharp
LD-D
IndoorFixed install
Next-Level Visual Performance. Built to Endure. Delivering vibrant colour, deep blacks, and extreme contrast, the Sharp D Series redefines the visual experience with captivating content, even in the brightest environments. Powered by advanced flip-chip CoB technology, it provides outstanding image clarity and true blacks, aligning it for presentation of detail-rich content, wayfinding, and immersive digital storytelling across a variety of settings.
11 variations:
Pitch
0.95 mm 1.2667 mm 1.5833 mm
Size
608×342 mm 2432×1488 mm 2472×1490 mm 3040×1710 mm 3080×1832 mm 3648×2174 mm 3688×2177 mm 4864×2736 mm 4904×2858 mm
Nits
800 nits
Sharp

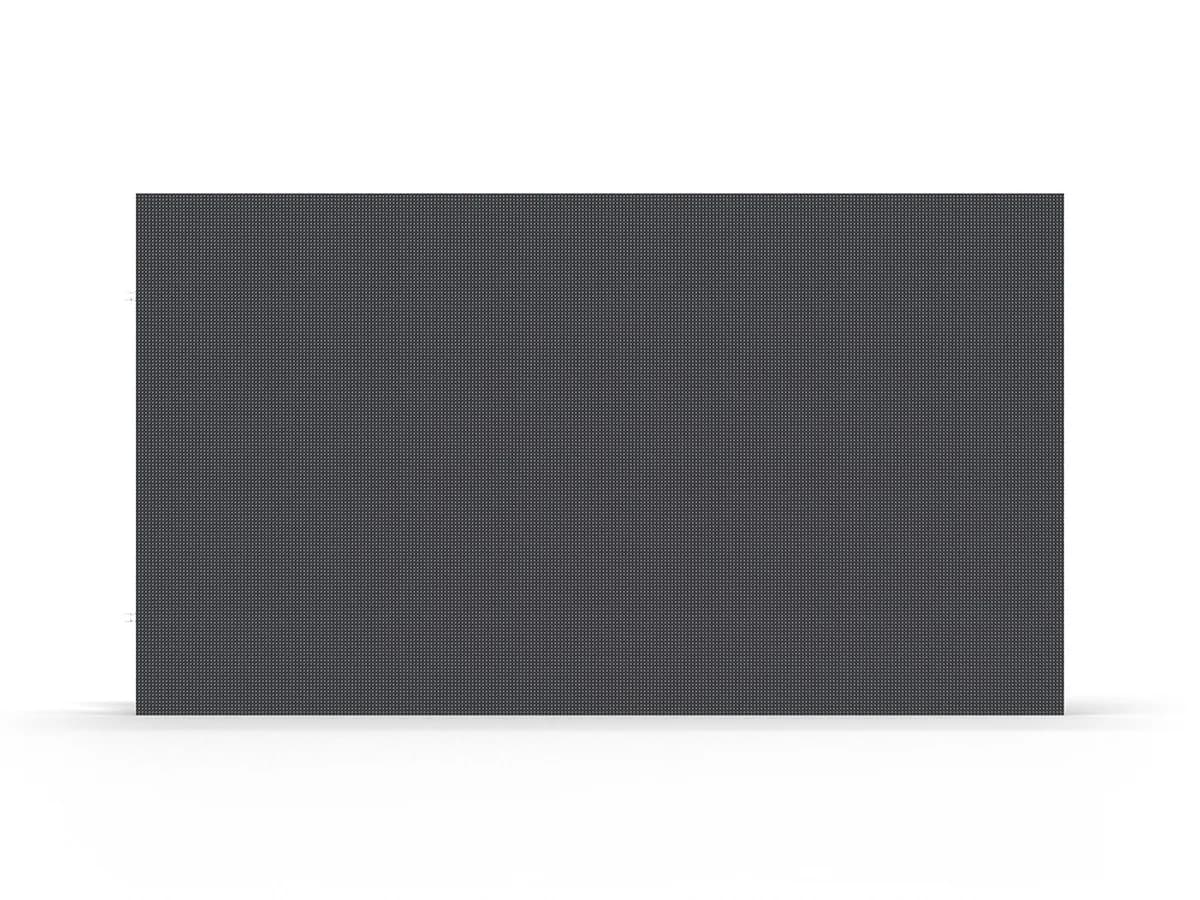

LD-E
IndoorFixed install
High Impact. Streamlined Value. Bring the brilliance of fine-pitch LED to value-driven environments, without compromising on performance. Purpose-built for corporate meeting rooms and digital signage, the Sharp E Series delivers vivid content clarity and brightness for excellent visibility.
14 variations:
Pitch
1.25 mm 1.5625 mm 1.875 mm 2.5 mm
Size
600×338 mm 2400×1350 mm 2412×1406 mm 3012×1688 mm 3012×1744 mm 3612×2081 mm 3612×2131 mm 4800×2700 mm 4812×2756 mm
Nits
600 nits 800 nits 1,000 nits
Sharp

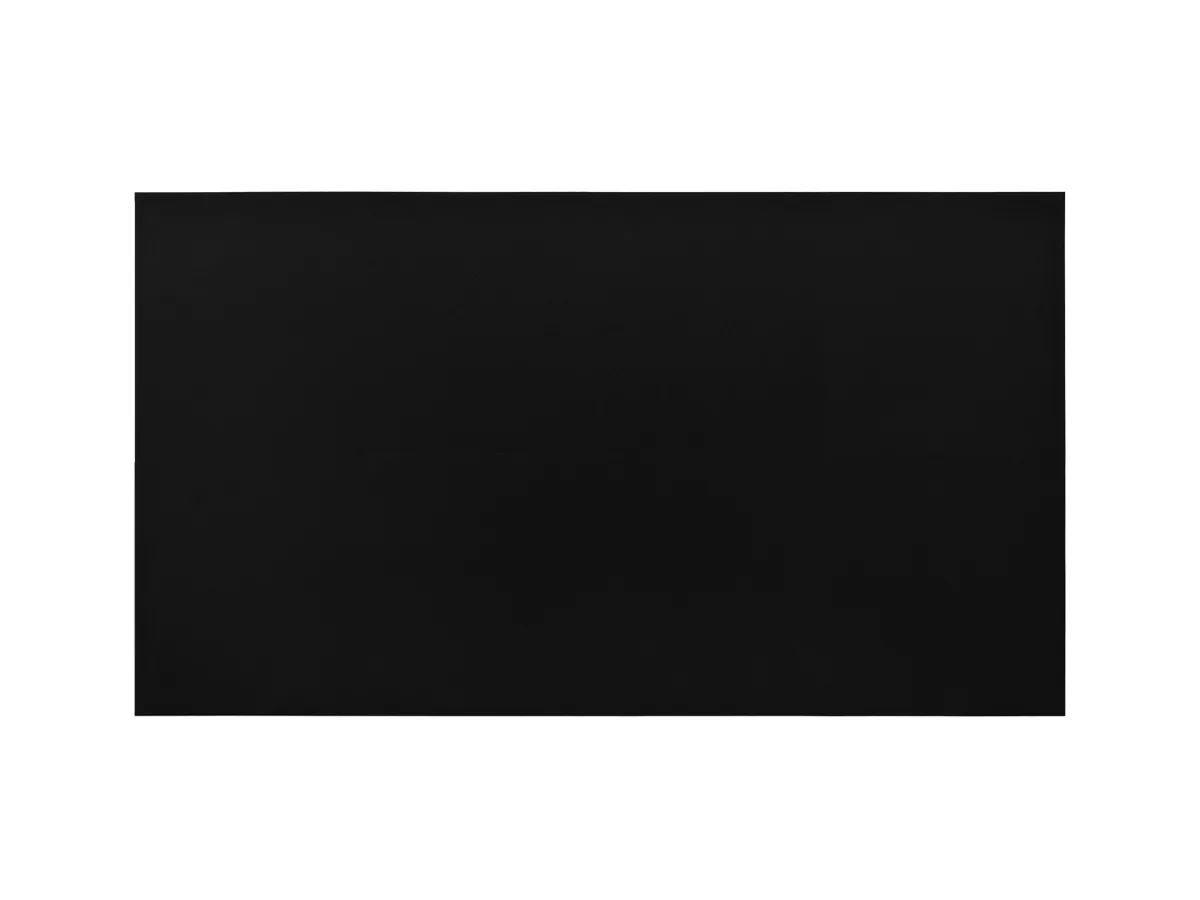

LD-EC
IndoorFixed install
Built to last, designed to inspire. Combining remarkable energy-efficiency with outstanding imaging performance, the LD-EC Series delivers all the benefits of advanced COB technology at a compelling price-performance ratio.
15 variations:
Pitch
0.9375 mm 1.25 mm 1.5625 mm 1.875 mm
Size
600×338 mm 2412×1362 mm 2412×1406 mm 3012×1700 mm 3012×1744 mm 3612×2037 mm 3612×2081 mm 4812×2712 mm 4812×2756 mm
Nits
600 nits
Sharp
LD-FA
IndoorFixed install
The Sharp FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today's most demanding applications. With 7 different fine pixel pitches (0.95mm, 1.2mm, 1.5mm, 1.9mm, 2.5mm, 3.1mm and 3.8mm) the optimum display resolution can be achieved regardless of viewing distance. The LD-FA092 is a 0.95mm pixel pitch module designed for vibrant and colorful content visualization delivering unmatched brightness among fine-pitch dvLEDs. Control rooms, corporate signage, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the Sharp FA series is designed to be integrated. The FA Series is engineered with high quality Multi-Color LEDs that deliver industry-leading imaging and reliability with no external cables required for installation. Built-in data and power redundancy with a front serviceable design helps to minimize downtime and deliver unmatched reliability. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
13 variations:
Pitch
0.95 mm 1.2667 mm 1.5833 mm 1.9 mm 2.5333 mm 3.1667 mm 3.8 mm
Size
608×342 mm 2444×1476 mm 3052×1818 mm 3660×2160 mm 4876×2844 mm
Nits
600 nits 800 nits 1,200 nits
Sharp

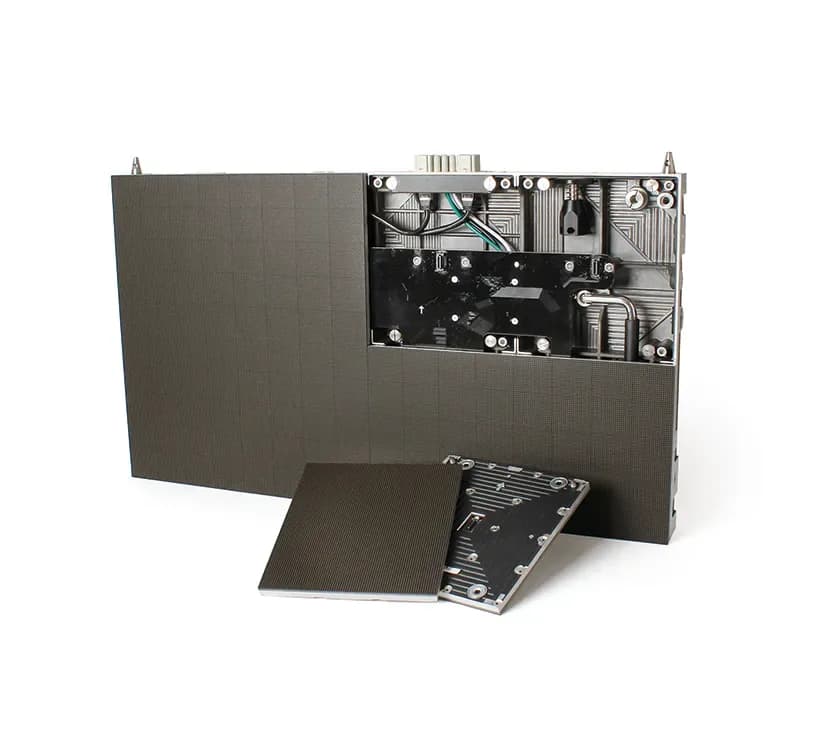

LD-FE
IndoorFixed install
Engineered for efficiency, without compromise. For bezel-free visual impact and long-lasting performance, the Sharp LD-FE3 Series sets a new benchmark in energy-efficient dvLED display technology. Built on NEC's legacy of engineering excellence, the third-generation FE Series features advanced Flip-Chip technology and industrial-grade components to deliver vibrant, high-contrast imagery while reducing energy consumption and heat output by up to 60%. The result is a substantial reduction in operating costs and HVAC demands, without compromising visual precision or performance.
28 variations:
Pitch
0.95 mm 1.2667 mm 1.5833 mm 1.9 mm 2.5333 mm 3.1667 mm 3.8 mm
Size
608×342 mm 2432×1488 mm 2444×1083 mm 2444×1476 mm 3040×1830 mm 3052×1818 mm 3648×2172 mm 3660×2160 mm 4876×2844 mm 4907×2856 mm
Nits
600 nits 700 nits 1,000 nits
Sharp
LED-B
IndoorFixed install
LED B Series - for mission critical interoperability. Designed to limit the interference caused by electromagnetic emissions with compliance to EMC Class B for installations up to 40sqm, Sharp LED B series modules are the first choice for applications demanding unhindered interoperability of multiple systems. Offering almost unlimited creativity in bezel-less digital surfaces, B series yields a powerful image even in the brightest environments making it ideal for any kind of signage scenario.
1 variation:
Pitch
3.9062 mm
Size
500×500 mm
Nits
1,000 nits
View LED-B039i specs

Every Sharp series

Where Sharp panels show up

Frequently asked

What pixel pitches does Sharp make?: This catalogue lists 82 Sharp cabinets from 0.938 mm to 3.906 mm: 41 under 1.5 mm and 41 in the 1.5–4 mm band. The finest is the LD-EC091 at 0.938 mm.
Does Sharp make outdoor LED panels?: No Sharp cabinet in this catalogue is rated for outdoor use — all 82 are indoor panels between 600 and 1,200 nits, built for controlled lighting.
How many Sharp series are there?: This catalogue lists 6 Sharp series. The largest is LD-FE, with 28 cabinets from 0.95 to 3.8 mm, followed by LD-EC, LD-E, LD-FA, LD-D and 1 more.
What are Sharp panels used for?: Every Sharp cabinet listed here is built for fixed install work — all 82 of them.
Which Sharp panel is the brightest?: The LD-FA252 at 1,200 nits (LD-FA). Nothing in the Sharp range listed here reaches 5,000 nits, so treat these as indoor or shaded-site cabinets.
