Sharp LD-E151 specs

High Impact. Streamlined Value. Bring the brilliance of fine-pitch LED to value-driven environments, without compromising on performance. Purpose-built for corporate meeting rooms and digital signage, the Sharp E Series delivers vivid content clarity and brightness for excellent visibility.

Pitch
1.25 mm1.5625 mm1.875 mm2.5 mm
Size
600×338 mm2412×1406 mm4812×2756 mm2400×1350 mm4800×2700 mm3012×1744 mm3012×1688 mm3612×2081 mm3612×2131 mm
Nits
600 nits800 nits1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

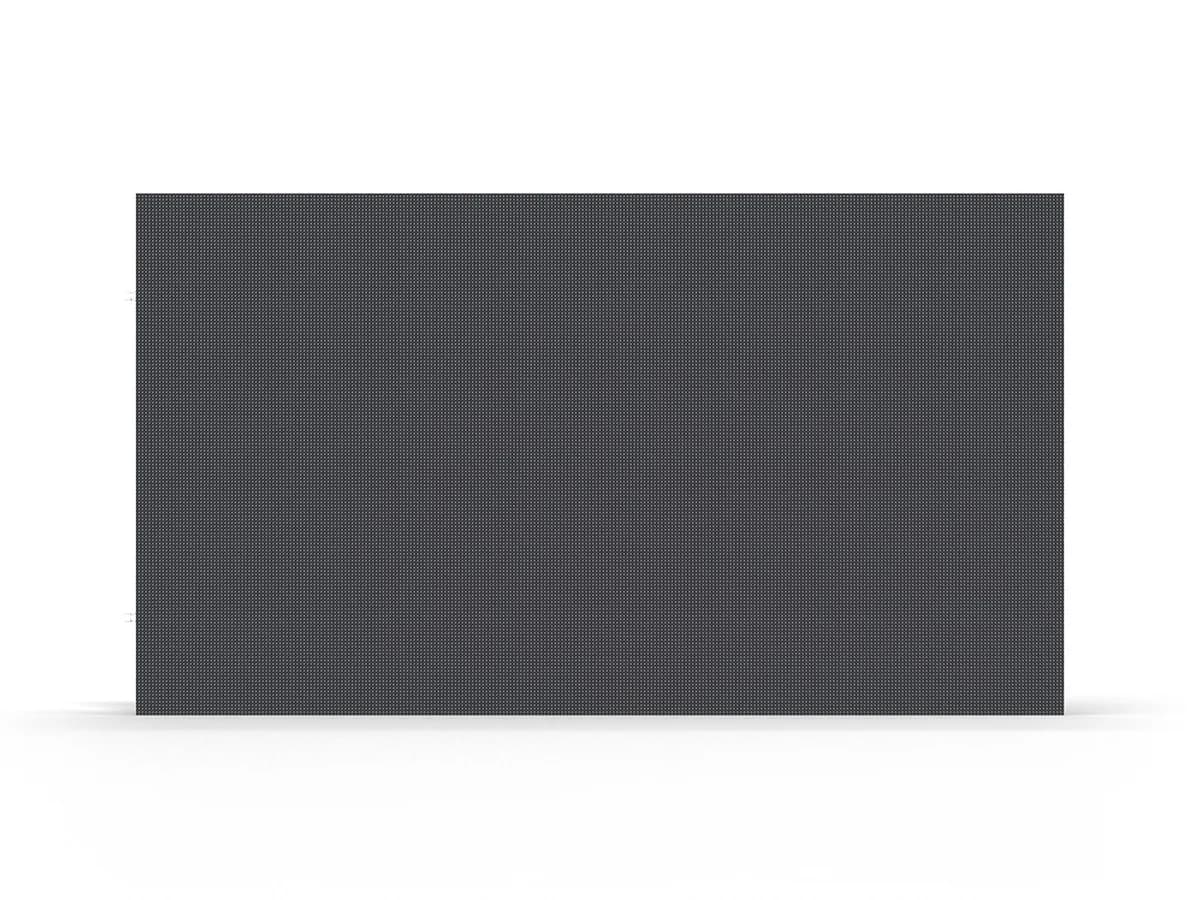

Sharp LD-E151 LED cabinet

Physical

Pixel pitch
1.5625 mm
Cabinet size (W×H×D)
600 × 338 × 29 mm
Weight
4.7 kg
Weight per m²
23.2 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
384 × 216 px (16:9)
Pixel density
409,600 px/m²
Brightness (calibrated)
600 nits
Refresh rate
3,840 Hz
Contrast
4,000:1
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
125 W
Average power
40 W
Max power per m²
617 W/m²
Average power per m²
198 W/m²
Thermal load
426 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP20
IP rating (rear)
IP20
Operating temperature
-20 to 40 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC Class A, RoHS

Manufacturer details

Dimming
256 levels
Features
Flush Surface SMD Design; Single Data Receiving Cards; Single Power Supplies
Warranty
2 years
Scan rate
1/54 dynamic scan
Order code
LDE151
Product group
1.5 mm Indoor FinePitch LED Module
Site category
Essential Indoor
Frame rates hz
50/60
Cabinet material
Aluminum Cabinet
Shipping content
LED Modules (1 Cabinets, 4 Pixel Cards); Spare Parts Kit
Color temperature
3000-9500 K
Module resolution
96x216
Contrast published
4000:1
Lifetime published
100000 hrs (50% brightness)
Operating humidity
10–80 %
Grayscale published
16 bit
Pixel configuration
SMD (1212) / 3-in-1 SMD (Black)
Brightness published
600 cd/m² (max.)
Manufacturer published
SHARP
Refresh rate published
≤ 3840 Hz
Led package published us
Huation (1212)

All variations in the LD-E series

All Sharp cabinets →

Every Sharp LD-E series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-E151 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Sharp LD-E151 draw?
Each Sharp LD-E151 cabinet draws up to 125 W at full white and about 40 W with typical content — 617 W/m² max. A 10-cabinet wall therefore needs up to 1,249 W plus headroom.
What is the resolution of the Sharp LD-E151?
One cabinet is 384 × 216 pixels at a 1.5625 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
How heavy is a Sharp LD-E151 wall?
A single cabinet weighs 4.7 kg (23.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 71 kg before mounting structure.
Is the Sharp LD-E151 suitable for outdoor use?
No — the Sharp LD-E151 is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
