LG has 55 LED cabinets in this database, grouped into 29 series. Pixel pitch runs from 0.78 mm to 16 mm, and brightness runs from 600 nits to 10,000 nits.

36 are indoor cabinets and 19 are rated for outdoor use. Fixed install leads at 42 of them (76%), alongside 6 production and 4 perimeter models. 9 cabinets sit under 1.5 mm. The finest is the LSAB007 at 0.78 mm, and the brightest is the GSEG100 at 10,000 nits.

LG at a glance

Cabinets
55
Series
29
Pixel pitch
0.78–16 mm
Brightness
600–10,000 nits
Cabinet width
480–1,600 mm
Cabinet height
338–1,920 mm
Environments
indoor (36) and outdoor (19)
Applications
fixed-install (42), production (6), perimeter (4) and rental (2)
LED type
SMD (48) and COB (7)

1–24 of 29 series · 55 cabinets

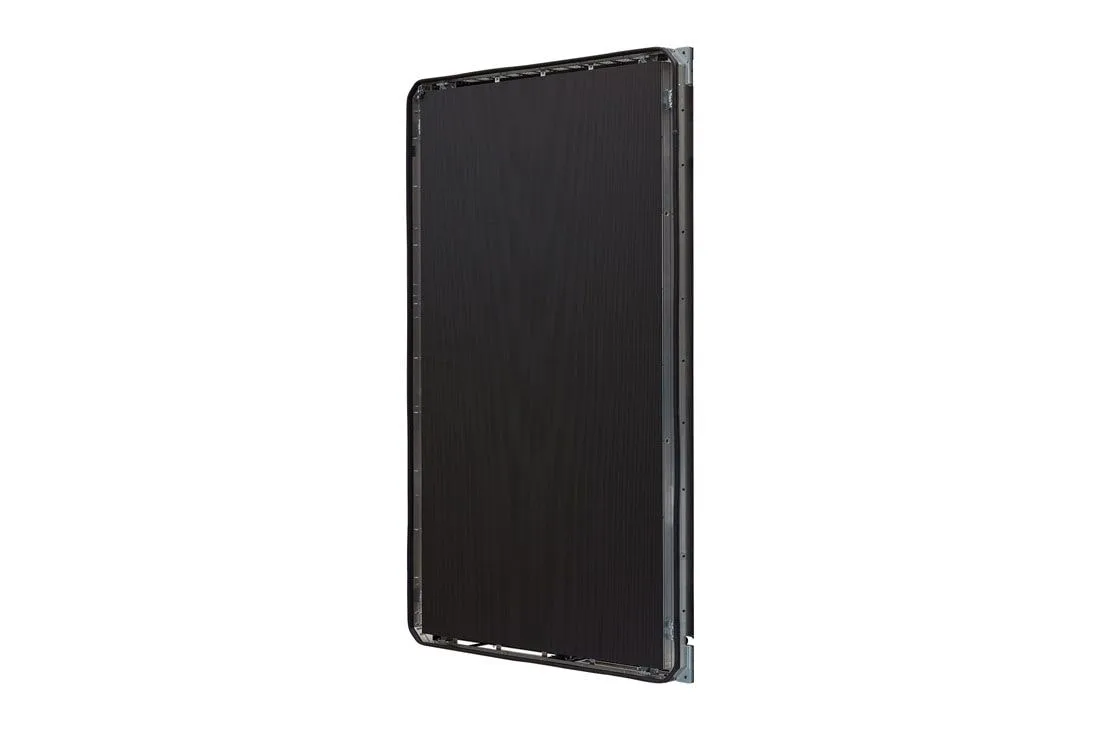

  • LG GEAA

    LG

    GEAA

    OutdoorOpen frame

    With its high picture quality, GEAA delivers clear content that captures the attention of passersby. Additionally, its high contrast ratio and outstanding low gray-scale performance allow it to convey a wide range of information effectively.

    1 variation:

    Pitch
    1.88 mm
    Size
    1080×1920 mm
    Nits
    3,500 nits

    View GEAA018-GQ8 specs

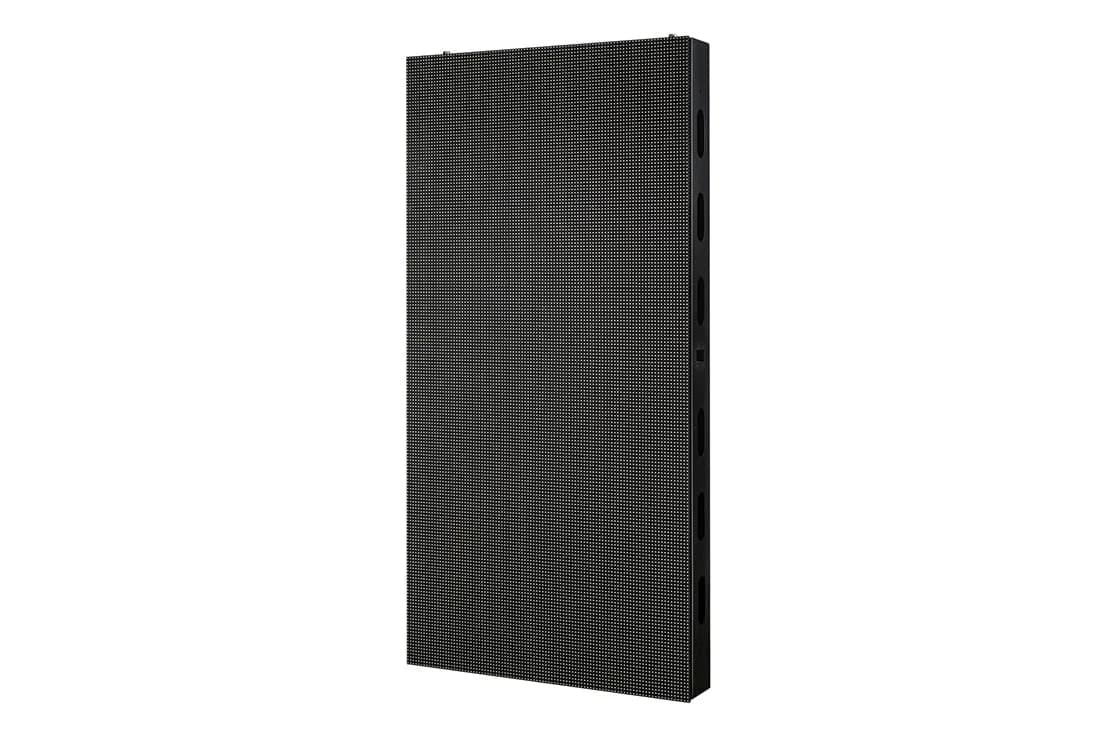

  • LG GNEA

    LG

    GNEA

    OutdoorFixed install

    GNEA083 is a high bright DVLED with an IP67 rating. It offers a high refresh rate and easy to install and maintain.

    2 variations:

    Pitch
    6.25 mm8.33 mm
    Size
    800×1600 mm
    Nits
    6,000 nits

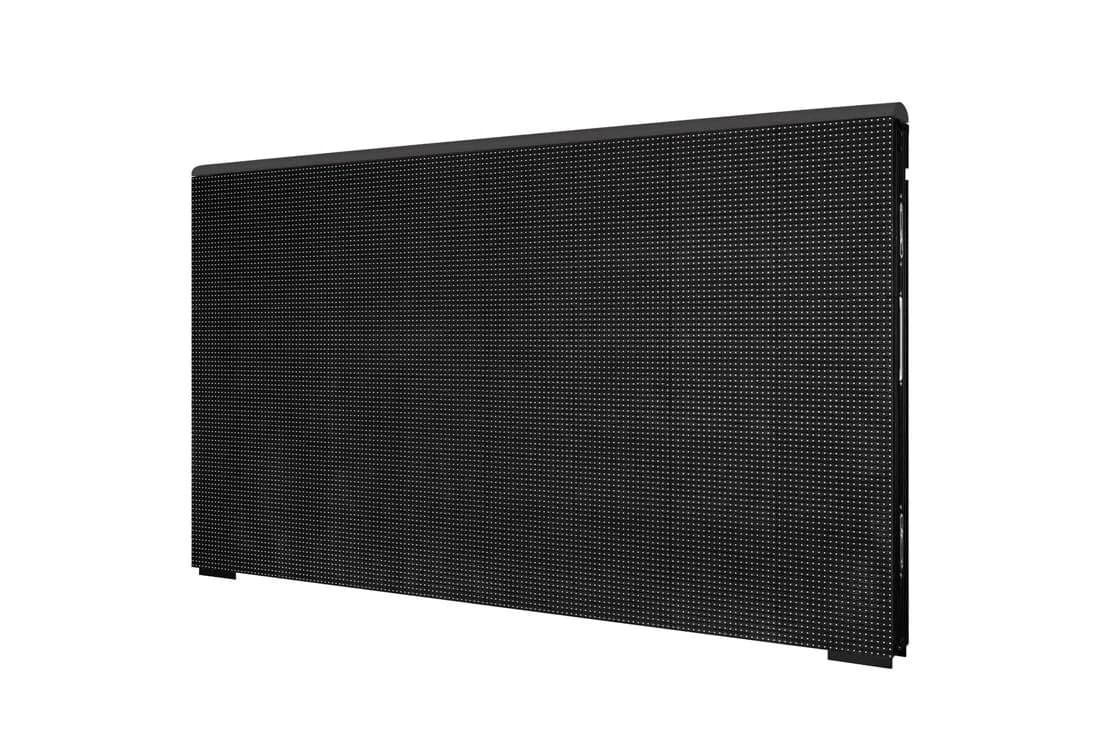

  • LG GPEJ

    LG

    GPEJ

    OutdoorPerimeter

    GPEJ100 is a 10 mm Outdoor Direct View LED for Stadium Peremiter, with IP65 Rating, HDR10/HDR10 Pro Support, LED Assistant, and SuperSign CMS.

    1 variation:

    Pitch
    10 mm
    Size
    1600×900 mm
    Nits
    6,000 nits

    View GPEJ100 specs

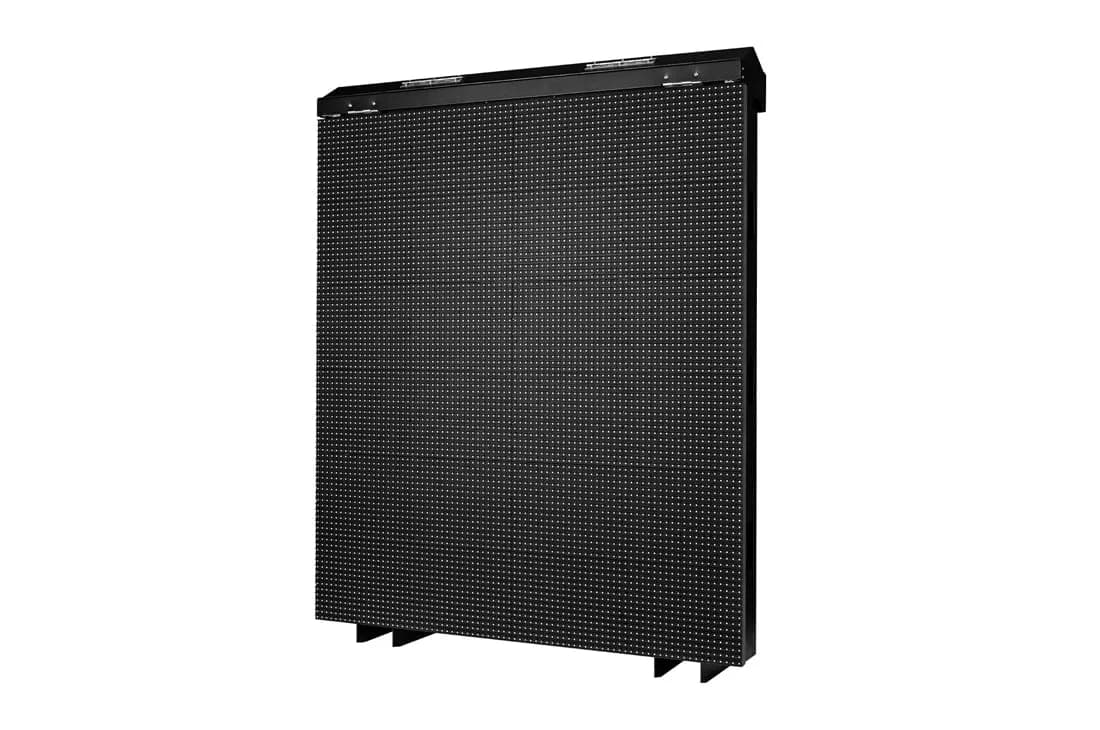

  • LG GREF

    LG

    GREF

    OutdoorPerimeter

    GREF is a high bright stadium series DVLED Ribbon Board. It offers a high refresh rate & an IP65 rating and stunning colors.

    1 variation:

    Pitch
    10 mm
    Size
    800×900 mm
    Nits
    6,000 nits

    View GREF100 specs

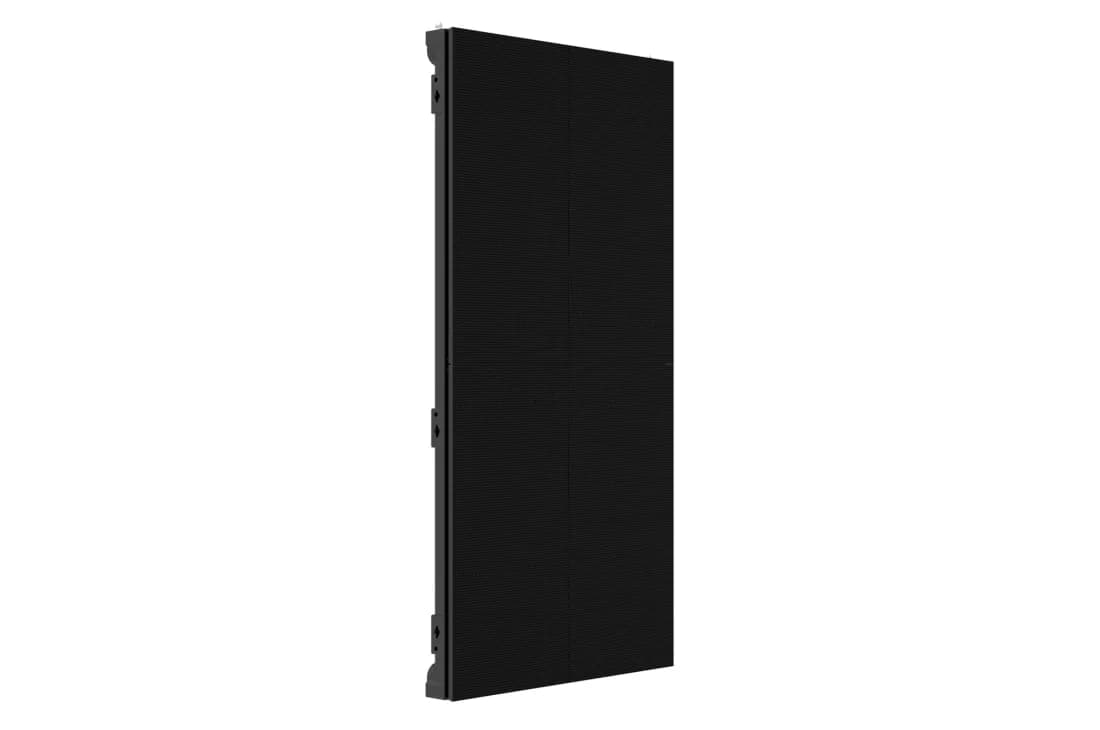

  • LG GSCA

    LG

    GSCA

    OutdoorFixed install

    GSCA is a versatile standard pitch high brightness LED signage for outdoor use. Great for rental or staging use, this LED is IPI65 rated, has optional 90° corners and two cabinet sizes to choose from.

    2 variations:

    Pitch
    3.91 mm4.63 mm
    Size
    500×1000 mm
    Nits
    5,000 nits

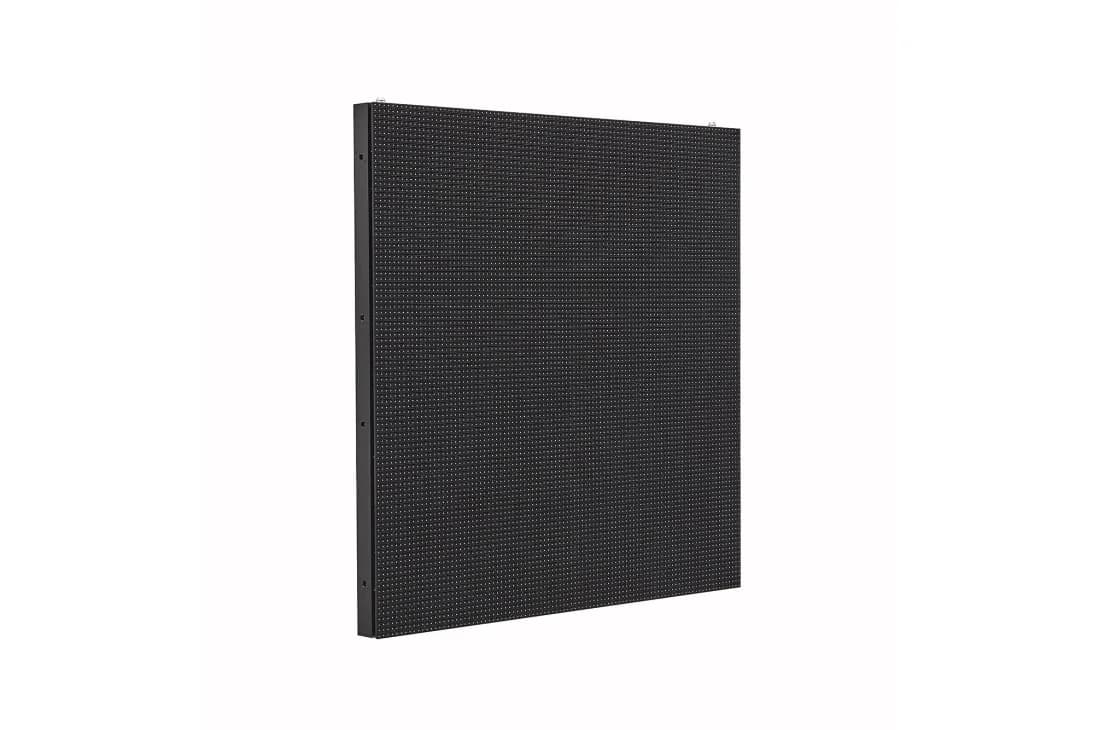

  • LG GSCD

    LG

    GSCD

    OutdoorFixed install

    GSCD039-KK is a high brightness outdoor LED that is lightweight and has two cabinet options. With a pixel pitch of 3.91mm, IP65 weatherproof design and the ability to have 90° corners, this a great LED for any business.

    2 variations:

    Pitch
    3.91 mm10.41 mm
    Size
    1000×1000 mm
    Nits
    5,000 nits7,000 nits
  • LG GSCE

    LG

    GSCE

    IndoorProduction

    Designed for immersive environments, the GSCE039 delivers high brightness and seamless integration, making it ideal for virtual production studios and XR stages.

    1 variation:

    Pitch
    3.91 mm
    Size
    500×1000 mm
    Nits
    5,000 nits

    View GSCE039 specs

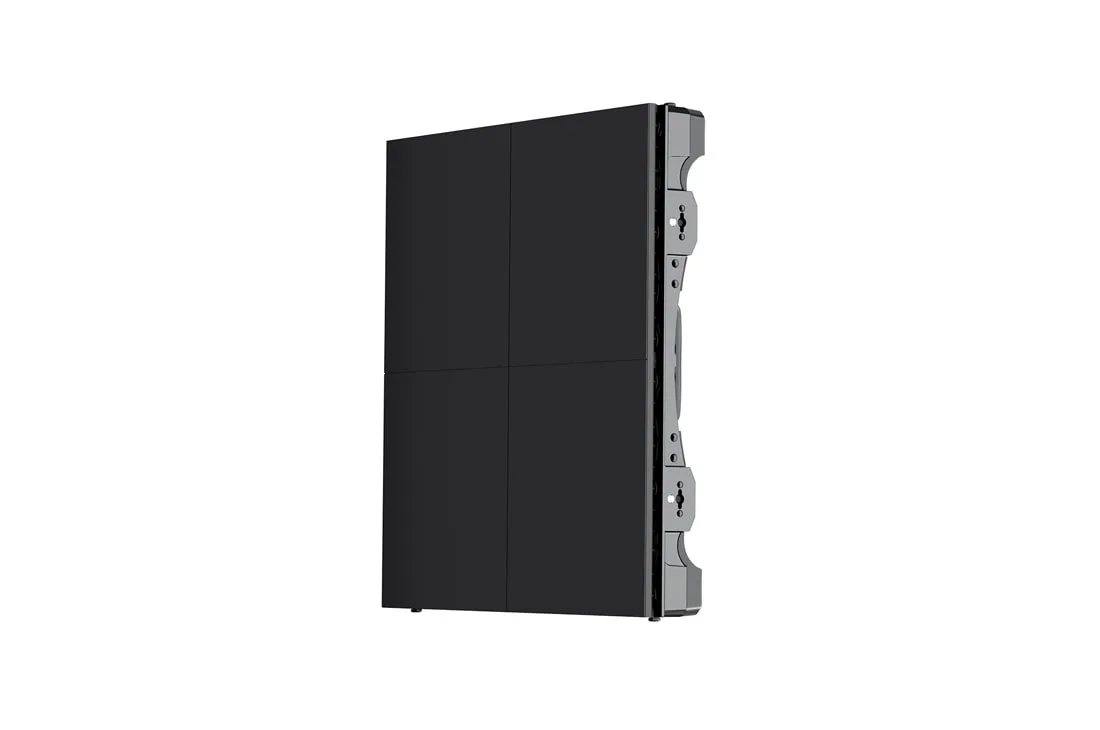

  • LG GSCF

    LG

    GSCF

    OutdoorFixed install

    Discover LG Outdoor LED Signage Display GSCF026-GP with a 2.6 mm pixel pitch, 5,500 nit brightness, and reliable IP65 rating.

    1 variation:

    Pitch
    2.6 mm
    Size
    500×500 mm
    Nits
    5,500 nits

    View GSCF026 specs

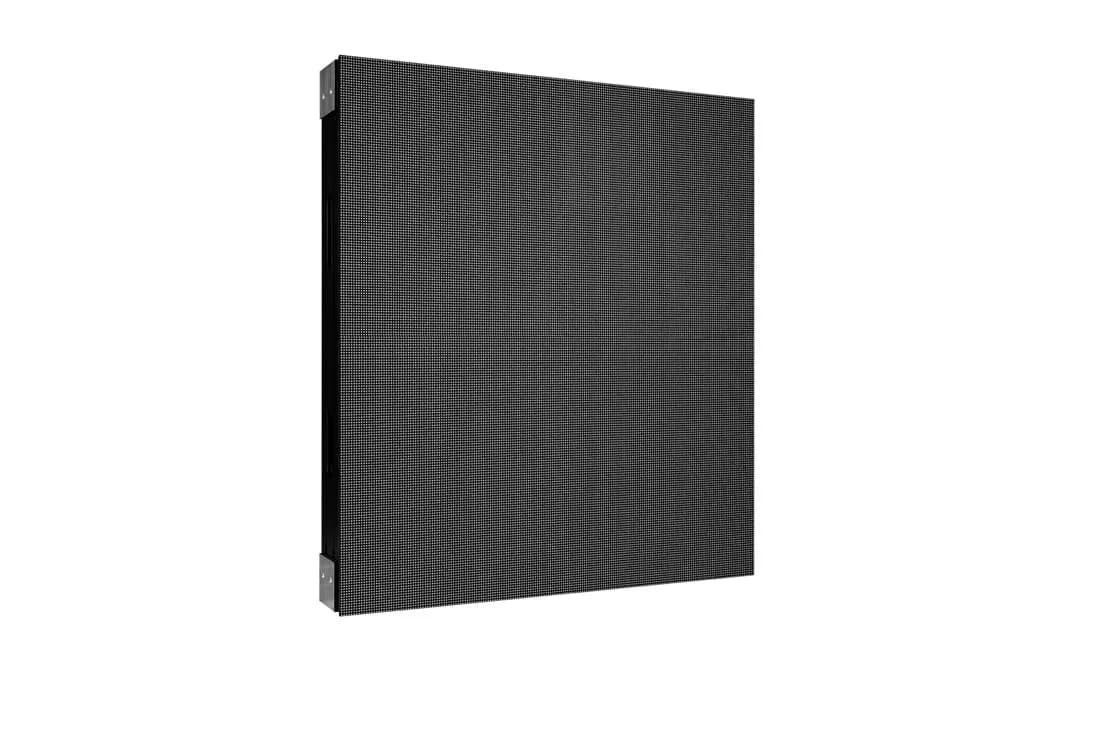

  • LG GSED

    LG

    GSED

    OutdoorFixed install

    Unlike the existing large-scale screen that used to be installed high to secure visibility, the GSED series has a lower pixel pitch of 2.5 mm, which allows installment for eye-level accessibility and to accurately display images on a smaller screen.

    1 variation:

    Pitch
    2.5 mm
    Size
    480×540 mm
    Nits
    4,000 nits

    View GSED025 specs

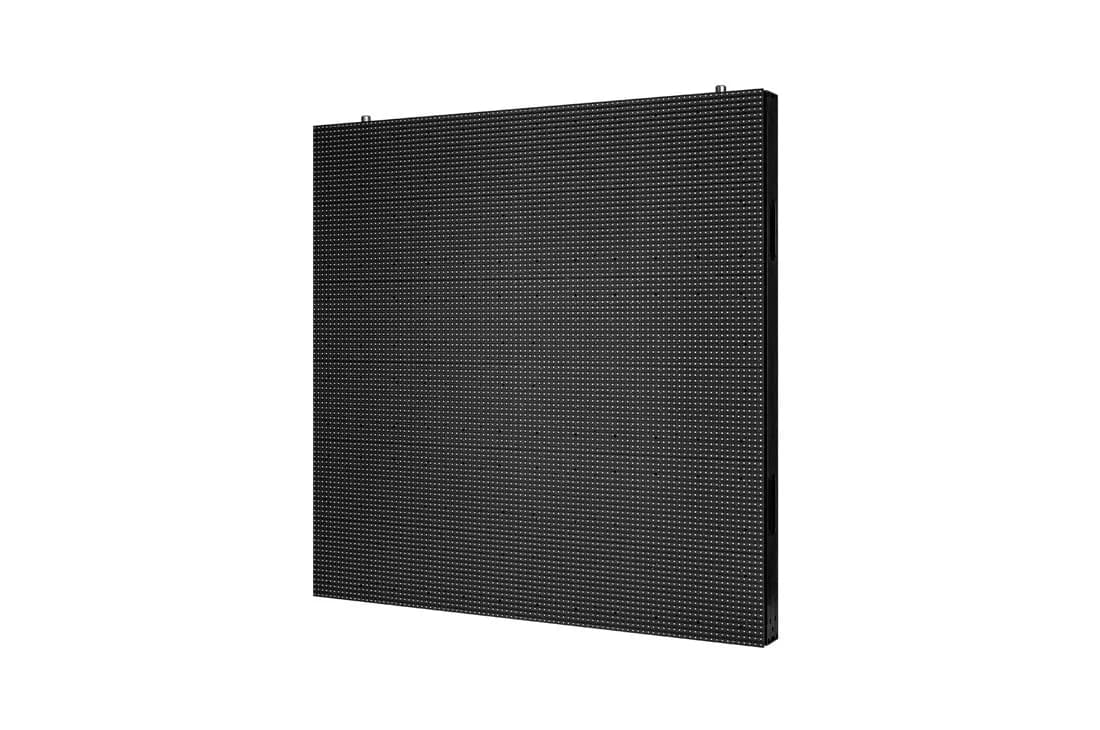

  • LG GSEG

    LG

    GSEG

    OutdoorFixed install

    GSEG083 is an 8 mm Cableless Direct View LED display with , IP65 Rating, HDR10/HDR10 Pro Support, and SuperSign CMS.

    3 variations:

    Pitch
    5.95 mm8.33 mm10.42 mm
    Size
    1000×1000 mm
    Nits
    6,000 nits7,000 nits10,000 nits

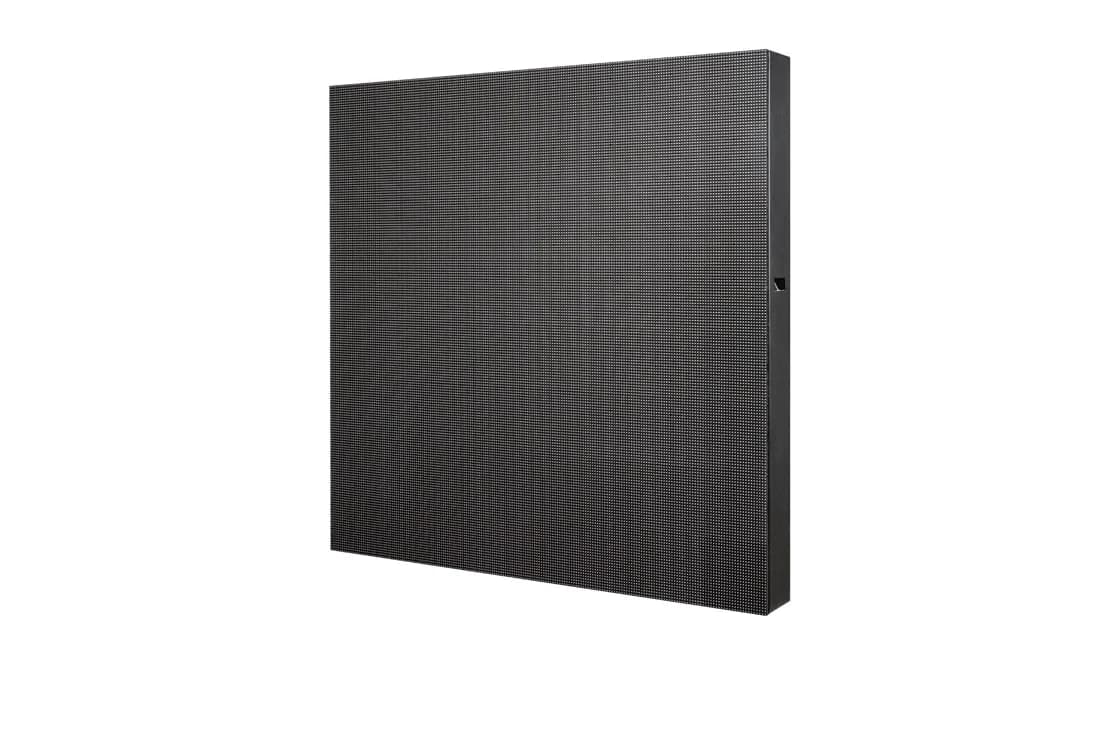

  • LG GSEH

    LG

    GSEH

    OutdoorFixed install

    GSEH060 is a 6 mm Ultra High Brightness Direct View LED display with IP65 and IP54 rating, HDR10/HDR10 Pro Support, And SuperSign CMS.

    1 variation:

    Pitch
    6 mm
    Size
    1152×768 mm
    Nits
    8,500 nits

    View GSEH060 specs

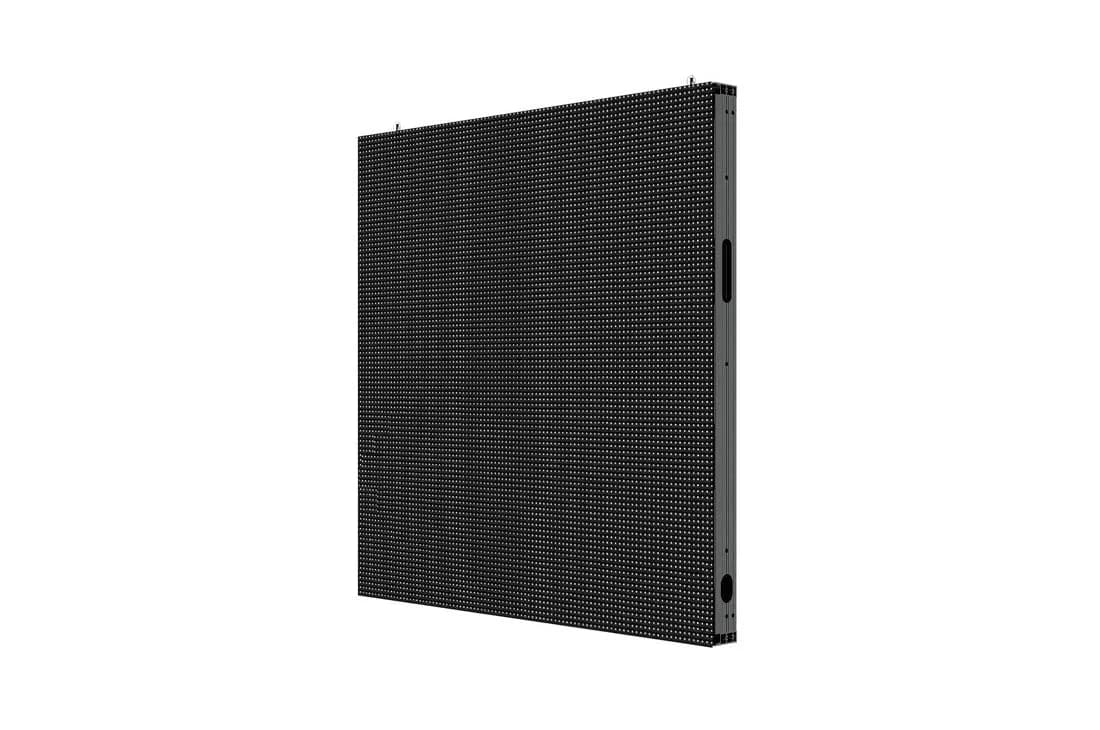

  • LG GSPA

    LG

    GSPA

    OutdoorFixed install

    Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals on our outdoor LED signage.

    2 variations:

    Pitch
    6.67 mm10 mm
    Size
    960×960 mm
    Nits
    8,000 nits10,000 nits
  • LG LBAF

    LG

    LBAF

    IndoorProduction

    LBAF is MicroLED 1.56 pixel pitch wall for virtual production. It offers LG's webOS™, immersive colors & is curvable. It can be stacked or hung and easy to install & maintain.

    1 variation:

    Pitch
    1.56 mm
    Size
    600×675 mm
    Nits
    1,500 nits

    View LBAF015 specs

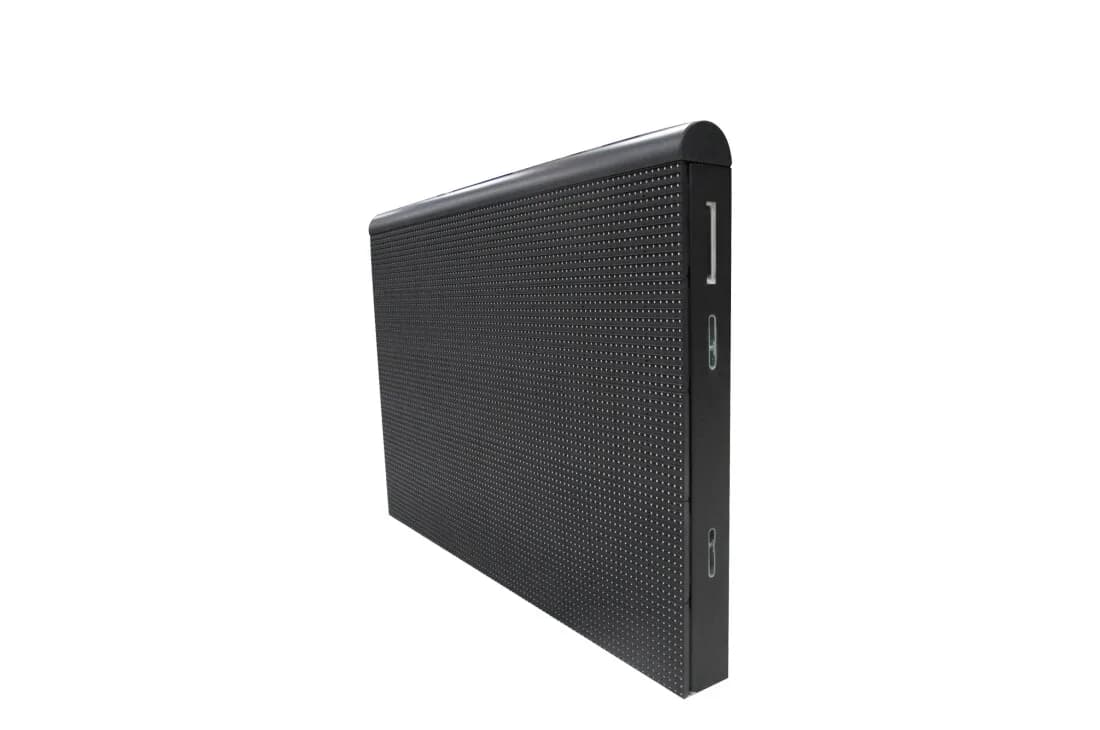

  • LG LBBD

    LG

    LBBD

    OutdoorPerimeter

    The LBB series meets the LED technical specifications of UEFA (Union of European Football Associations) that a perimeter LED signage should follow when installed in UEFA's stadiums.

    2 variations:

    Pitch
    10 mm16 mm
    Size
    1536×960 mm1600×900 mm
    Nits
    6,000 nits

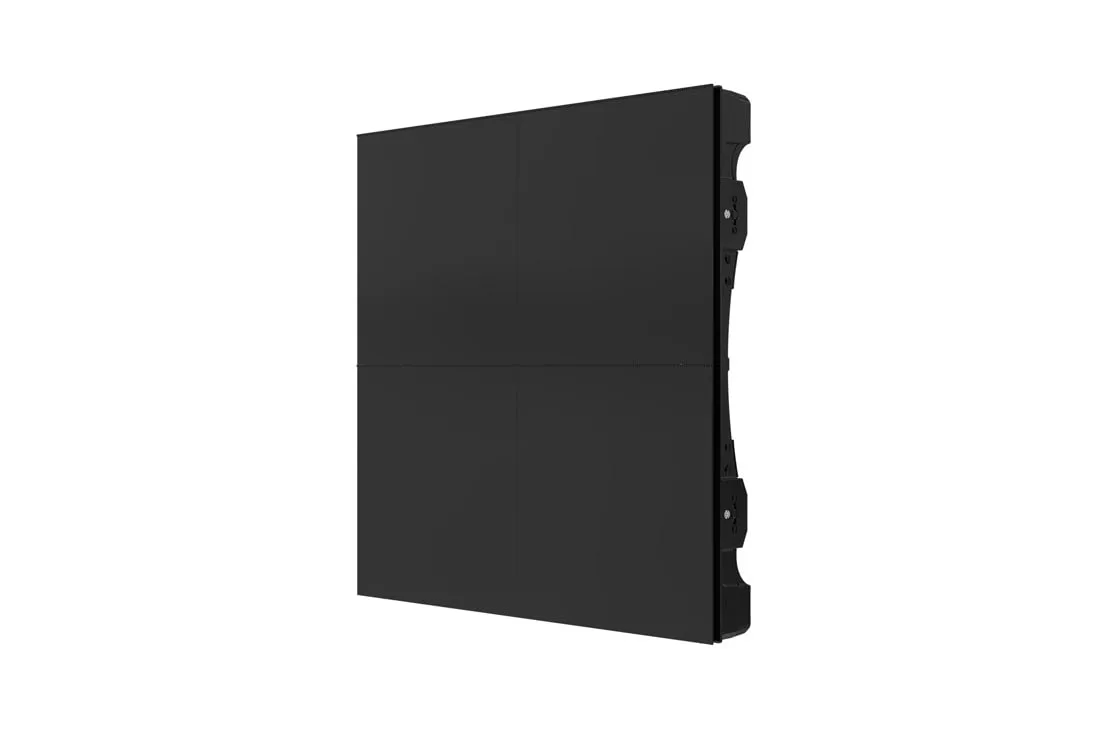

  • LG LBCG

    LG

    LBCG

    IndoorProduction

    The LBCG026 is engineered for immersive virtual production environments, offering flexible installation, curve effects, and broadcast-level visual performance.

    1 variation:

    Pitch
    2.6 mm
    Size
    500×500 mm
    Nits
    1,500 nits

    View LBCG026 specs

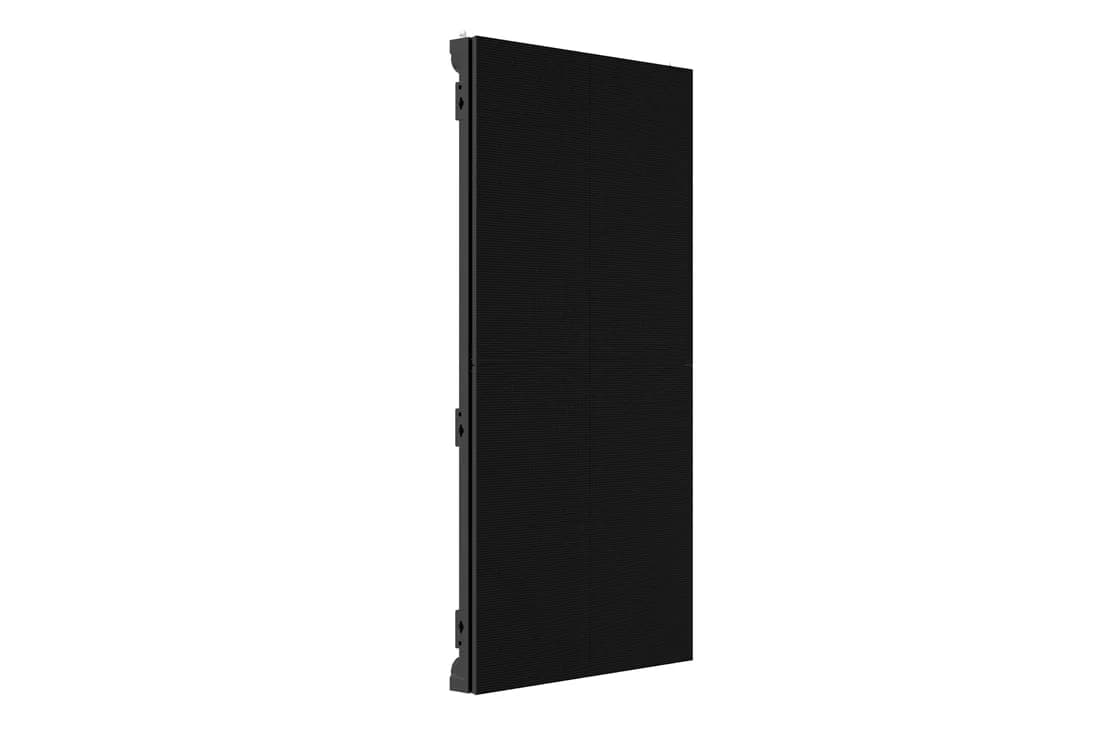

  • LG LBCK

    LG

    LBCK

    IndoorProduction

    This DVLED virtual production is easy to install and maintain & has 5,000 nit brightness.

    1 variation:

    Pitch
    3.91 mm
    Size
    500×1000 mm
    Nits
    5,000 nits

    View LBCK039 specs

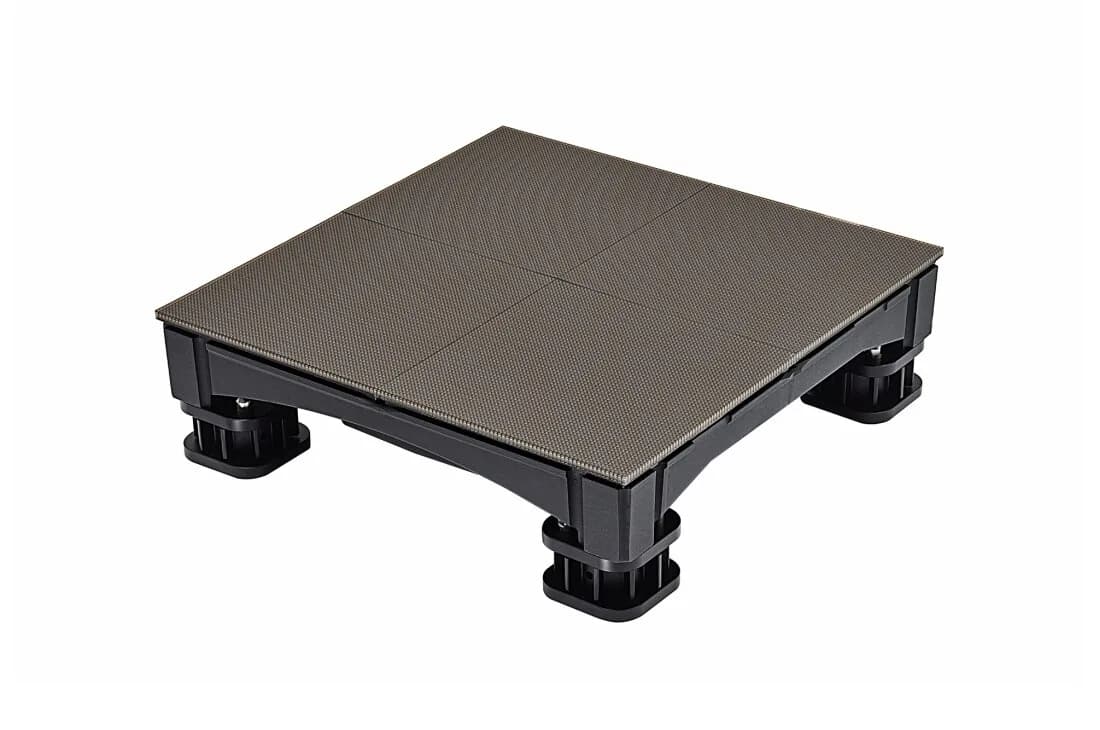

  • LG LFCG

    LG

    LFCG

    IndoorFixed install

    LFCG is a unique floor LED display with high durability designed to load up to 2,500 kg/sqm.

    1 variation:

    Pitch
    3.91 mm
    Size
    500×500 mm
    Nits
    1,500 nits

    View LFCG039 specs

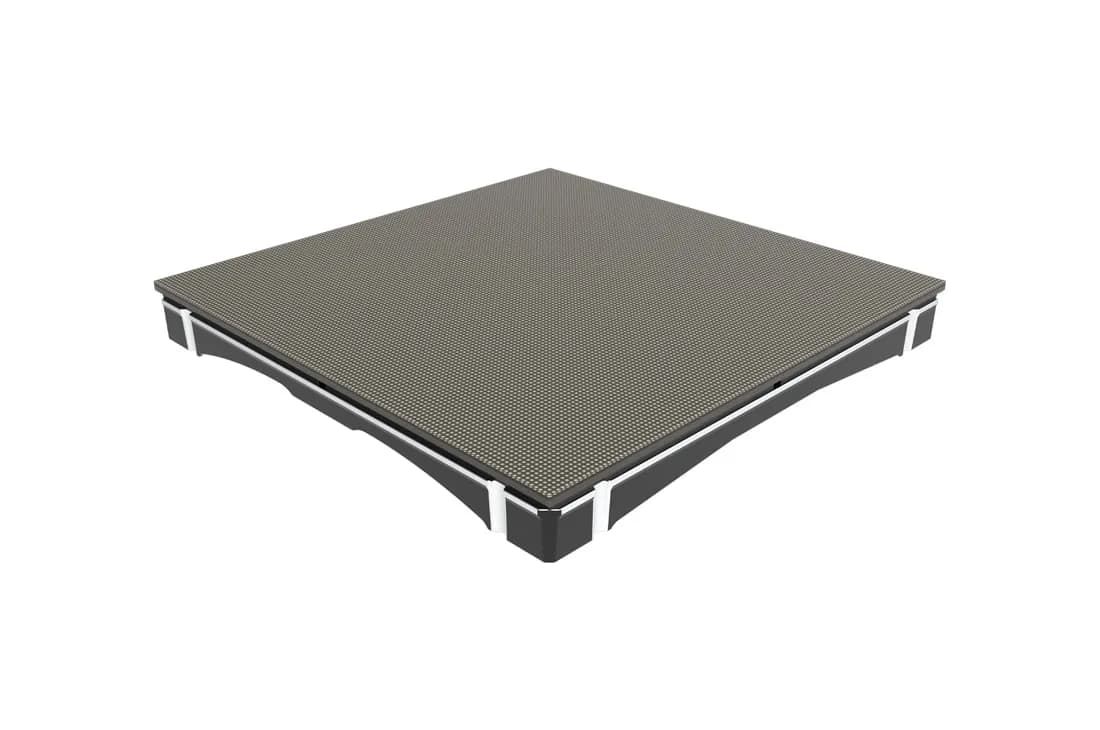

  • LG LFCL

    LG

    LFCL

    IndoorProduction

    The LFCL039 is engineered for immersive environments, offering high durability and visual performance tailored for virtual production studios and XR stages.

    1 variation:

    Pitch
    3.91 mm
    Size
    500×500 mm
    Nits
    3,000 nits

    View LFCL039 specs

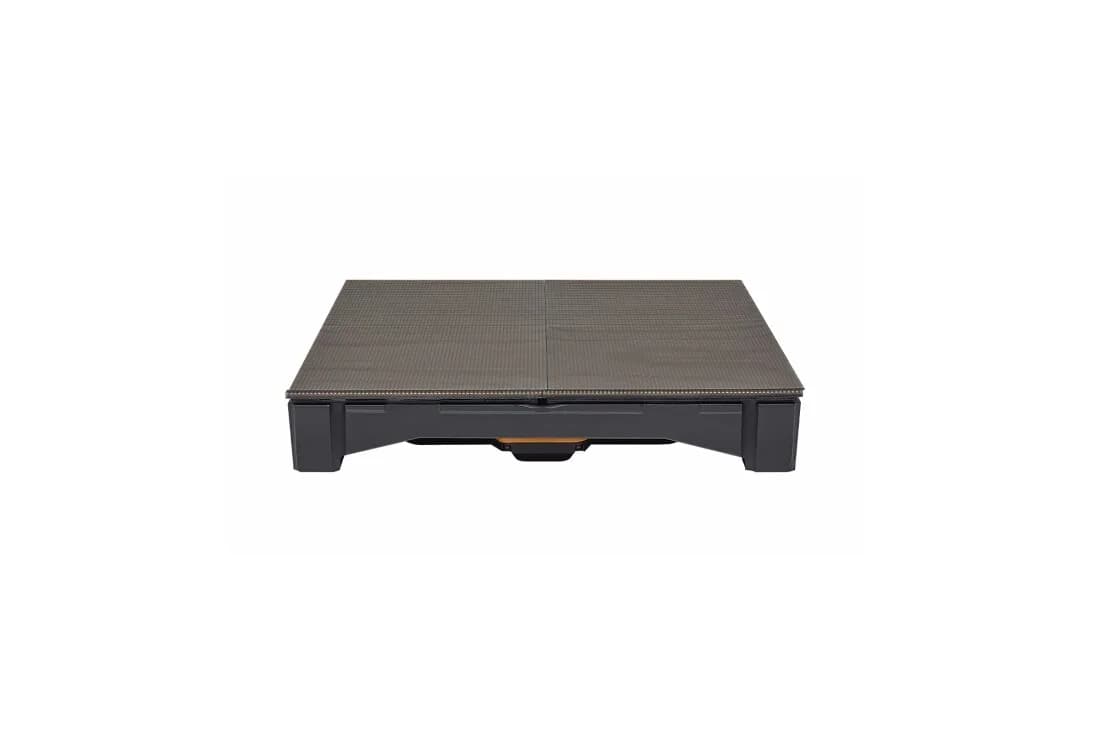

  • LG LFCM

    LG

    LFCM

    IndoorProduction

    LFCM is a unique floor LED display designed for virtual production with high durability, capable of supporting up to 1,500 kg/sqm.

    1 variation:

    Pitch
    3.91 mm
    Size
    500×500 mm
    Nits
    1,500 nits

    View LFCM039 specs

  • LG LSAB

    LG

    LSAB

    IndoorFixed install

    LG MAGNIT delivers immersive and eye-popping visuals that make every viewing experience memorable. Bring your imagination into life, through ultra-fine details visualised by a colourful mosaic of Micro LED chips.

    3 variations:

    Pitch
    0.78 mm0.94 mm1.25 mm
    Size
    600×338 mm
    Nits
    1,000 nits1,500 nits

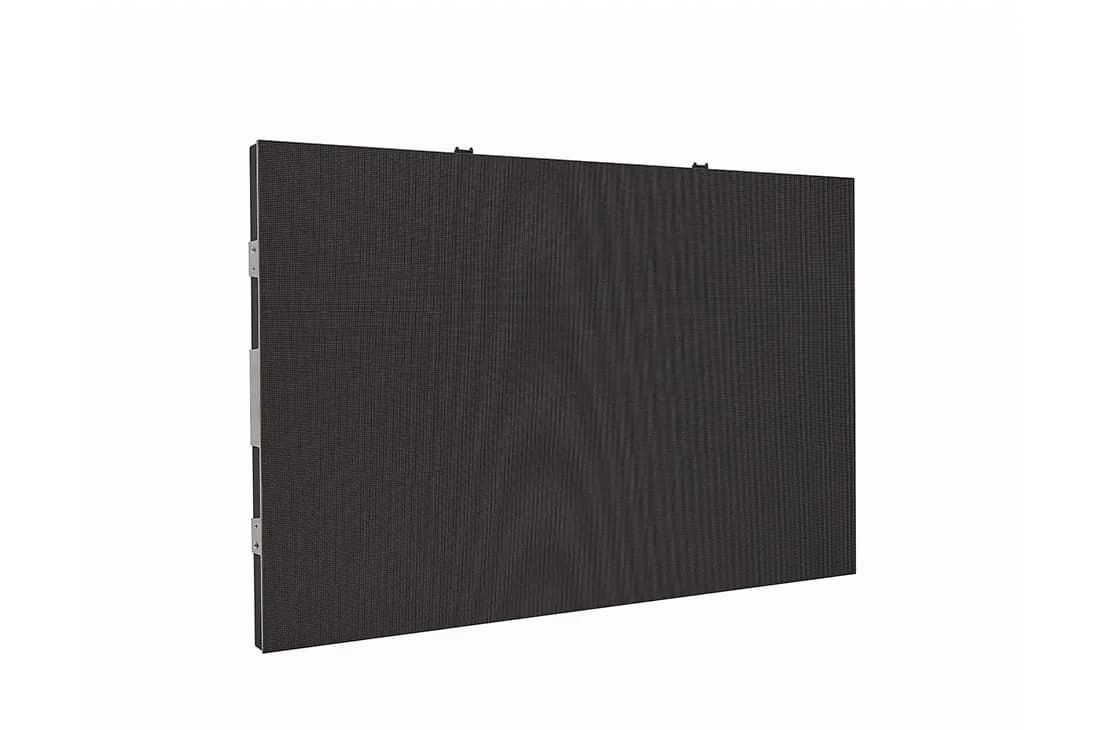

  • LG LSAC

    LG

    LSAC

    IndoorFixed install

    The LG LSAC018 is a 54" LED Video Wall Display featuring 1.875 mm pixel pitch, 600 nit brightness, cable-less signal transmission, and HDR support.

    3 variations:

    Pitch
    1.25 mm1.875 mm2.5 mm
    Size
    1200×675 mm
    Nits
    600 nits
  • LG LSAP

    LG

    LSAP

    IndoorFixed install

    Compatible with the Megapixel VR HELIOS® Controller this Micro LED delivers stunning colors & true black. It offers IP50/IP20 rating, & is LG software compatible.

    3 variations:

    Pitch
    0.78 mm0.94 mm1.25 mm
    Size
    600×338 mm
    Nits
    600 nits800 nits1,000 nits

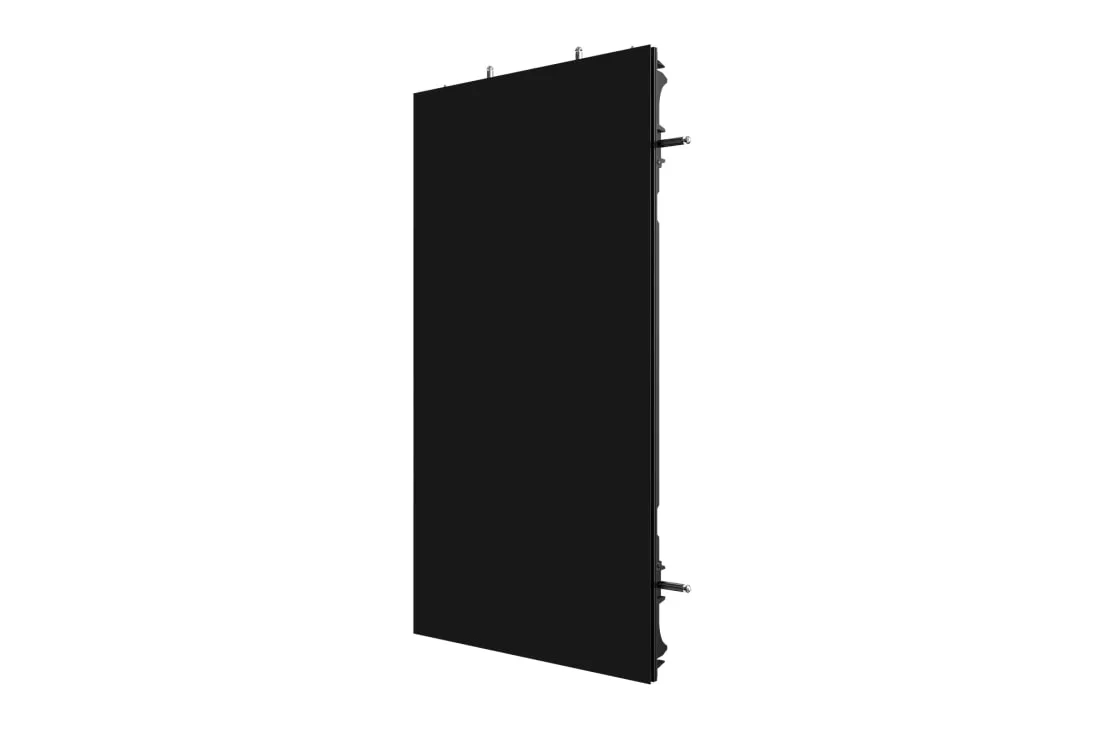

  • LG LSBC

    LG

    LSBC

    IndoorFixed install

    With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

    4 variations:

    Pitch
    1.95 mm2.604 mm2.976 mm3.906 mm
    Size
    500×1000 mm
    Nits
    800 nits1,000 nits

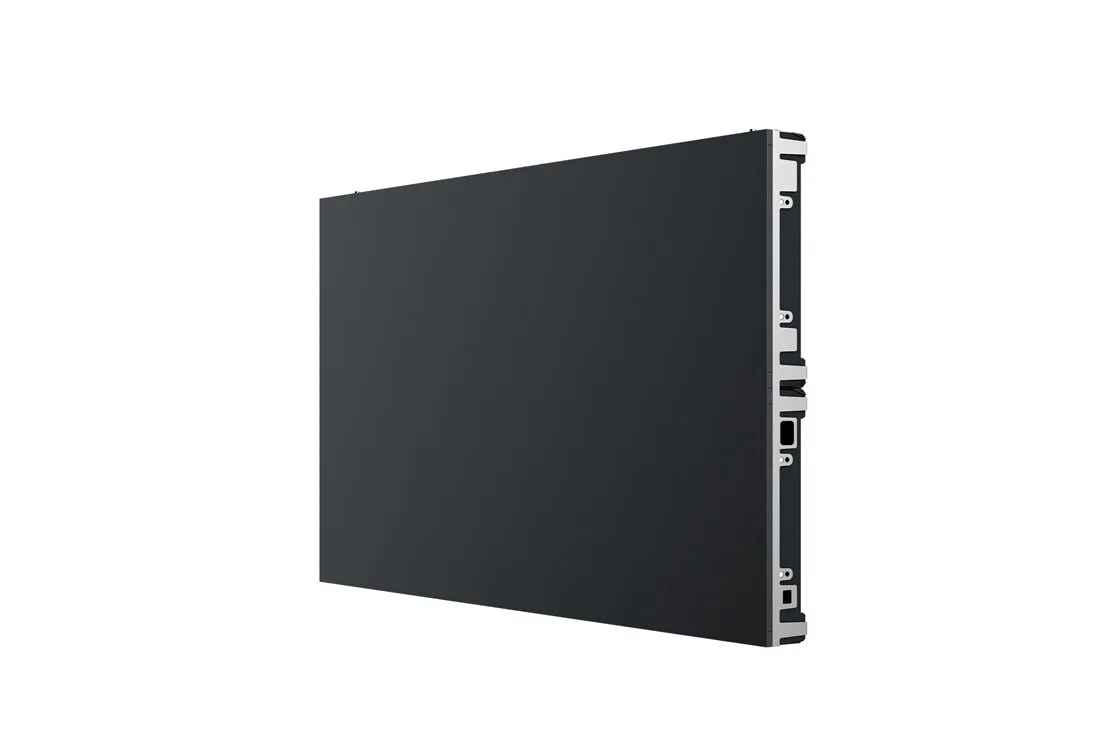

  • LG LSBF

    LG

    LSBF

    IndoorFixed install

    This cost effective indoor LED series features a durable frame design & allows you to combine 54'' & 27'' models to create custom screens.

    4 variations:

    Pitch
    1.25 mm1.56 mm1.88 mm2.5 mm
    Size
    1200×675 mm
    Nits
    600 nits

Every LG series

Where LG panels show up

Frequently asked

What pixel pitches does LG make?
This catalogue lists 55 LG cabinets from 0.78 mm to 16 mm: 9 under 1.5 mm, 32 in the 1.5–4 mm band and 14 at 4 mm and above. The finest is the LSAB007 at 0.78 mm.
Does LG make outdoor LED panels?
Yes — 19 of the 55 LG cabinets listed here are rated for outdoor use, reaching 10,000 nits. Check the IP rating on the spec sheet before specifying one for a permanent outdoor site.
How many LG series are there?
This catalogue lists 29 LG series. The largest is LSBC, with 4 cabinets from 1.95 to 3.906 mm, followed by LSBF, GSEG, LSAB, LSAC and 24 more.
What are LG panels used for?
Mostly fixed install work: 42 of 55 cabinets (76%). The rest cover production, perimeter and rental.
Which LG panel is the brightest?
The GSEG100 at 10,000 nits (GSEG). 19 cabinets in the LG range reach 5,000 nits or more, which is the rough threshold for direct sunlight.
