LG LSAB012 specs

LG MAGNIT delivers immersive and eye-popping visuals that make every viewing experience memorable. Bring your imagination into life, through ultra-fine details visualised by a colourful mosaic of Micro LED chips.

Pitch
0.78 mm0.94 mm1.25 mm
Size
600×338 mm
Nits
1,000 nits1,500 nits
Open in calculatorCompareControllersRunning cost

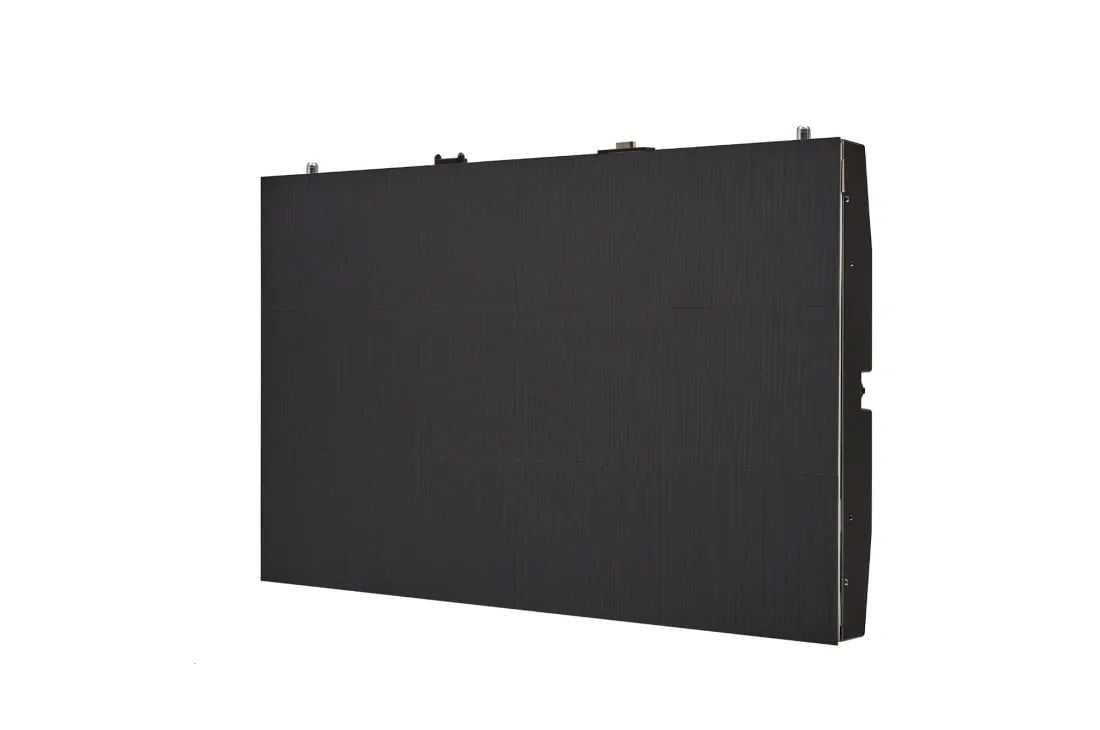

LG LSAB012 LED cabinet

Physical

Pixel pitch
1.25 mm
Cabinet size (W×H×D)
600 × 338 × 45 mm
Weight
7.8 kg
Weight per m²
38.5 kg/m²
Cabinet type
Fixed install


Cabinet resolution
480 × 270 px (16:9)
Pixel density
640,000 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
160° / 160°
LED type
COB
Processing depth
20 bit

Power & thermal

Max power
60 W
Average power
35 W
Max power per m²
296 W/m²
Average power per m²
173 W/m²
Thermal load
205 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP50
IP rating (rear)
IP20
Operating temperature
0 to 40 °C
LED lifetime
100,000 h
Certifications
Safety 60950-1, EMC Class B, BS476 Part7 Class1, TÜV certified

Manufacturer details

Power supply
100 to 240
Frame rates hz
50 / 60
Short description
Micro LED Display with advanced features for immersive visuals.
Operating humidity
10 ~ 80%
Pixel configuration
Micro LED

All variations in the LSAB series

All LG cabinets →

Every LG LSAB series cabinet and the exact pitch, size and brightness pairing it ships with.

  • LG LSAB0070.78 mm600×338 mm1,000 nits
  • LG LSAB0090.94 mm600×338 mm1,500 nits
  • LSAB012this model1.25 mm600×338 mm1,500 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSAB012 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LSAB012 draw?
Each LG LSAB012 cabinet draws up to 60 W at full white and about 35 W with typical content — 296 W/m² max. A 10-cabinet wall therefore needs up to 600 W plus headroom.
What is the resolution of the LG LSAB012?
One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
How heavy is a LG LSAB012 wall?
A single cabinet weighs 7.8 kg (38.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
Is the LG LSAB012 suitable for outdoor use?
No — the LG LSAB012 is an indoor cabinet (IP50 front). Its 1,500 nits suit controlled lighting, not direct sun.
