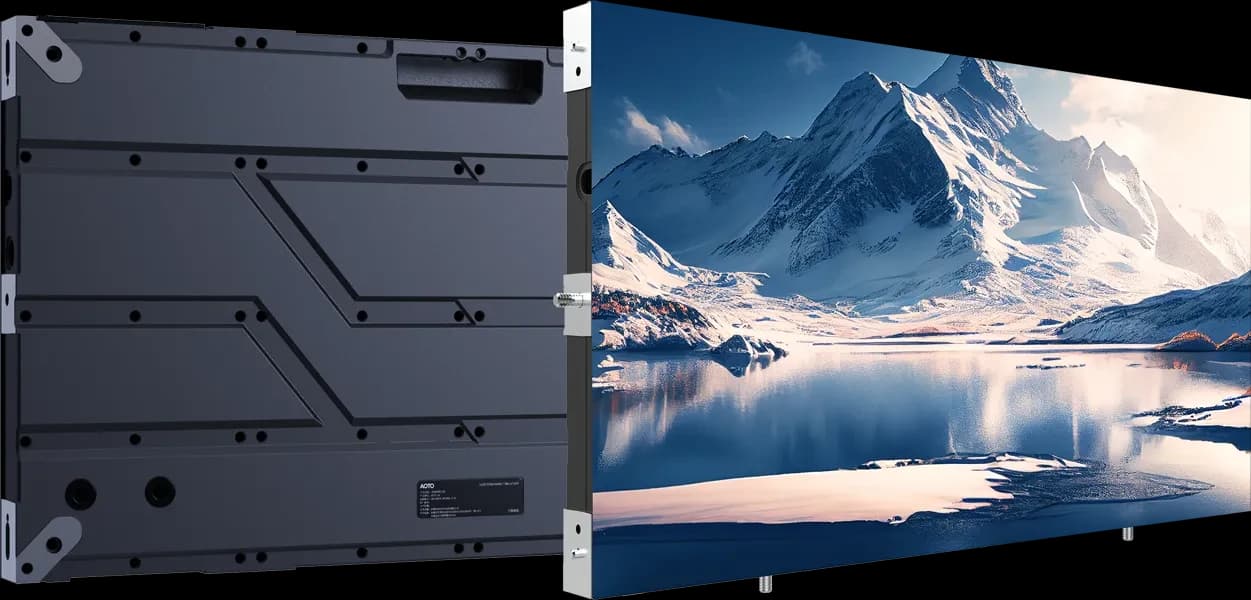

AOTO CVES1.2 specs
CV MINI Series is characterized with smaller LED chip, more stable screen robustness and better sealing & optical design. Multiple packaging can be selected for better satisfying different application scenarios.
Physical
- Pixel pitch
- 1.25 mm
- Cabinet size (W×H×D)
- 600 × 338 × 38 mm
- Weight
- 5 kg
- Weight per m²
- 24.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 640,000 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 6,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- IMD
Power & thermal
- Max power
- 110 W
- Average power
- 45 W
- Max power per m²
- 543 W/m²
- Average power per m²
- 222 W/m²
- Thermal load
- 375 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP30
- IP rating (rear)
- IP30
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- AC100-240V 50/60Hz
- Site category
- Fixed Installation
- Pitch published
- 1.25mm
- Cabinet material
- die-cast aluminium, black
- Operating humidity
- 10-80% RH
- Pixel configuration
- MINI (AOTO Mini 4-in-1 IMD), 1R1G1B
All variations in the CV MINI series
All AOTO cabinets →Every AOTO CV MINI series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO CVES0.90.9375 mm600×338 mm550 nits
- CVES1.2this model1.25 mm600×338 mm600 nits
- AOTO CVES1.51.5625 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO CVES1.2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO CVES1.2 draw?
- Each AOTO CVES1.2 cabinet draws up to 110 W at full white and about 45 W with typical content — 543 W/m² max. A 10-cabinet wall therefore needs up to 1,100 W plus headroom.
- What is the resolution of the AOTO CVES1.2?
- One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a AOTO CVES1.2 wall?
- A single cabinet weighs 5 kg (24.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 75 kg before mounting structure.
- Is the AOTO CVES1.2 suitable for outdoor use?
- No — the AOTO CVES1.2 is an indoor cabinet (IP30 front). Its 600 nits suit controlled lighting, not direct sun.
