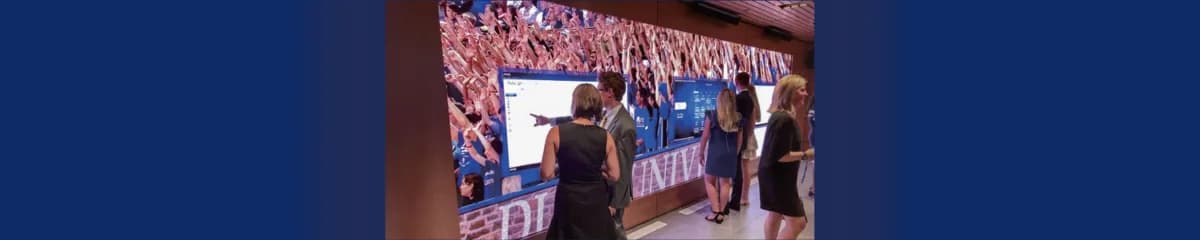

Leyard VDS012 specs
The Leyard VDS Series is Leyard Europe's latest MicroLED technology using Chip on Board (COB) technology. COB MicroLED technology is becoming increasingly popular and Leyard Europe has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio.
Physical
- Pixel pitch
- 1.25 mm
- Cabinet size (W×H×D)
- 600 × 338 × 44 mm
- Weight
- 5.1 kg
- Weight per m²
- 25 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 640,000 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 20,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 66 W
- Average power
- 32 W
- Max power per m²
- 325 W/m²
- Average power per m²
- 160 W/m²
- Thermal load
- 225 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP54
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50/60
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 150x168.75 mm
- Module resolution
- 120x135
- Module composition
- 4x2
- Pixel configuration
- Flip-Chip MicroLED COB
All variations in the VDS series
All Leyard cabinets →Every Leyard VDS series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard VDS0070.78125 mm600×338 mm600 nits
- Leyard VDS0090.9375 mm600×338 mm600 nits
- VDS012this model1.25 mm600×338 mm600 nits
- Leyard VDS0151.5625 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard VDS012 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard VDS012 draw?
- Each Leyard VDS012 cabinet draws up to 66 W at full white and about 32 W with typical content — 325 W/m² max. A 10-cabinet wall therefore needs up to 658 W plus headroom.
- What is the resolution of the Leyard VDS012?
- One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a Leyard VDS012 wall?
- A single cabinet weighs 5.1 kg (25 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 76 kg before mounting structure.
- Is the Leyard VDS012 suitable for outdoor use?
- No — the Leyard VDS012 is an indoor cabinet (IP54 front). Its 600 nits suit controlled lighting, not direct sun.
