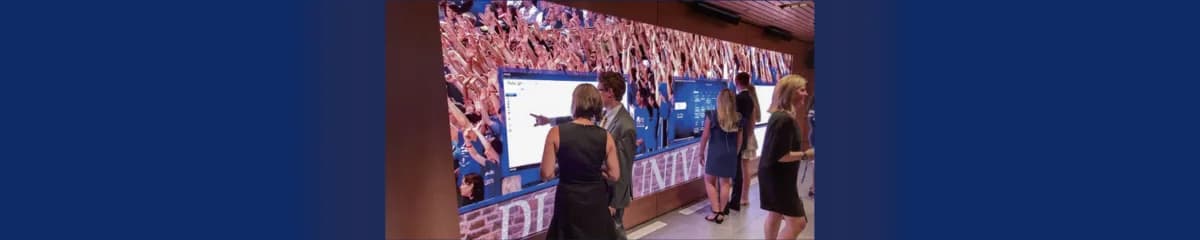

Leyard VDS009 specs
The Leyard VDS Series is Leyard Europe's latest MicroLED technology using Chip on Board (COB) technology. COB MicroLED technology is becoming increasingly popular and Leyard Europe has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio.
Physical
- Pixel pitch
- 0.9375 mm
- Cabinet size (W×H×D)
- 600 × 338 × 44 mm
- Weight
- 5.1 kg
- Weight per m²
- 25 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 640 × 360 px (16:9)
- Pixel density
- 1,137,778 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 20,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 76 W
- Average power
- 35 W
- Max power per m²
- 375 W/m²
- Average power per m²
- 175 W/m²
- Thermal load
- 259 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP54
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50/60
- Pitch published
- 0.935
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 150x168.75 mm
- Module resolution
- 160x180
- Module composition
- 4x2
- Pixel configuration
- Flip-Chip MicroLED COB
All variations in the VDS series
All Leyard cabinets →Every Leyard VDS series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard VDS0070.78125 mm600×338 mm600 nits
- VDS009this model0.9375 mm600×338 mm600 nits
- Leyard VDS0121.25 mm600×338 mm600 nits
- Leyard VDS0151.5625 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
611cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard VDS009 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard VDS009 draw?
- Each Leyard VDS009 cabinet draws up to 76 W at full white and about 35 W with typical content — 375 W/m² max. A 10-cabinet wall therefore needs up to 759 W plus headroom.
- What is the resolution of the Leyard VDS009?
- One cabinet is 640 × 360 pixels at a 0.9375 mm pixel pitch (1,137,778 px/m²). About 6 cabinets side by side reach 4K width (≈ 3.60 m).
- How heavy is a Leyard VDS009 wall?
- A single cabinet weighs 5.1 kg (25 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 76 kg before mounting structure.
- Is the Leyard VDS009 suitable for outdoor use?
- No — the Leyard VDS009 is an indoor cabinet (IP54 front). Its 600 nits suit controlled lighting, not direct sun.
