LG LSAC018 specs

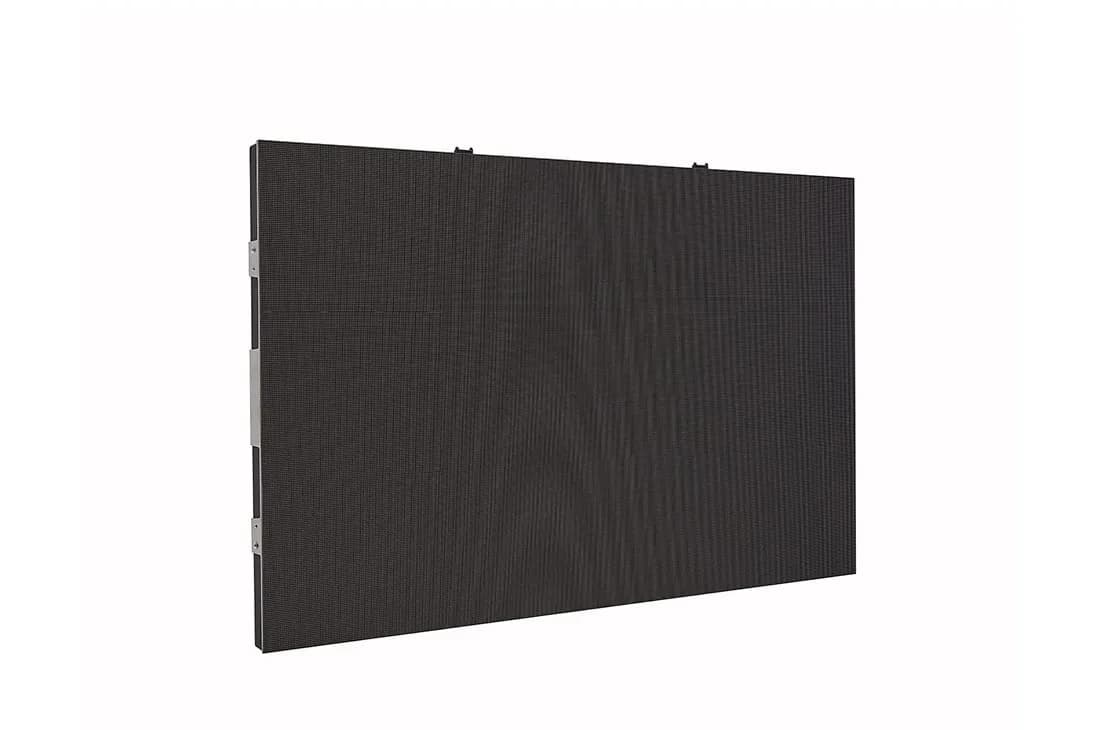

The LG LSAC018 is a 54" LED Video Wall Display featuring 1.875 mm pixel pitch, 600 nit brightness, cable-less signal transmission, and HDR support.
Physical
- Pixel pitch
- 1.875 mm
- Cabinet size (W×H×D)
- 1,200 × 675 × 51 mm
- Weight
- 23.2 kg
- Weight per m²
- 28.6 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 640 × 360 px (16:9)
- Pixel density
- 284,444 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 20 bit
Power & thermal
- Max power
- 320 W
- Average power
- 210 W
- Max power per m²
- 395 W/m²
- Average power per m²
- 259 W/m²
- Thermal load
- 1,092 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- Safety 62368-1, EMC Class B, BS476 Part7 Class1
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- The LSAC series is the innovative LED signage applying the cableless transmission technology with non connectors.
- Operating humidity
- 10 ~ 80%
- Pixel configuration
- Single SMD
All variations in the LSAC series
All LG cabinets →Every LG LSAC series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LSAC0121.25 mm1200×675 mm600 nits
- LSAC018this model1.875 mm1200×675 mm600 nits
- LG LSAC0252.5 mm1200×675 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
611cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSAC018 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSAC018 draw?
- Each LG LSAC018 cabinet draws up to 320 W at full white and about 210 W with typical content — 395 W/m² max. A 10-cabinet wall therefore needs up to 3,200 W plus headroom.
- What is the resolution of the LG LSAC018?
- One cabinet is 640 × 360 pixels at a 1.875 mm pixel pitch (284,444 px/m²). About 6 cabinets side by side reach 4K width (≈ 7.20 m).
- How heavy is a LG LSAC018 wall?
- A single cabinet weighs 23.2 kg (28.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 348 kg before mounting structure.
- Is the LG LSAC018 suitable for outdoor use?
- No — the LG LSAC018 is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
