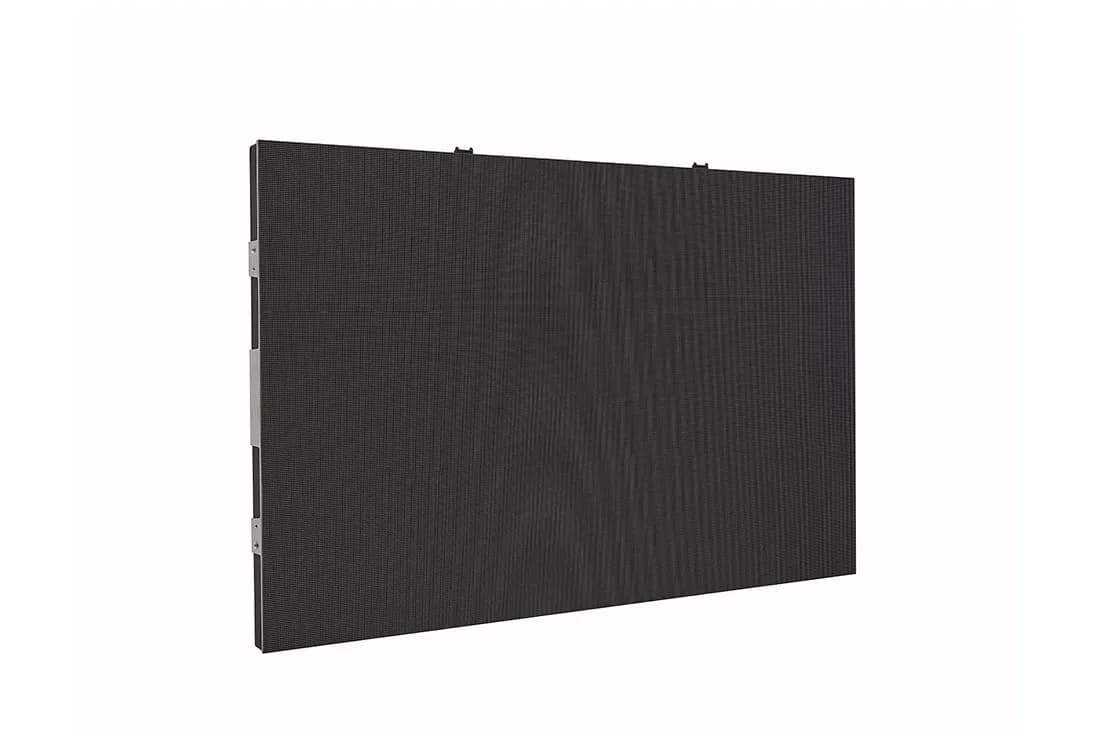

LG LSAC025 specs
The LG LSAC018 is a 54" LED Video Wall Display featuring 1.875 mm pixel pitch, 600 nit brightness, cable-less signal transmission, and HDR support.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 1,200 × 675 × 51 mm
- Weight
- 22.5 kg
- Weight per m²
- 27.8 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 20 bit
Power & thermal
- Max power
- 290 W
- Average power
- 190 W
- Max power per m²
- 358 W/m²
- Average power per m²
- 235 W/m²
- Thermal load
- 989 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- 54” LED Video Wall Display with cable-less signal transmission and power docking.
- Operating humidity
- 10 ~ 80%
- Pixel configuration
- 3 in 1 SMD
All variations in the LSAC series
All LG cabinets →Every LG LSAC series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LSAC0121.25 mm1200×675 mm600 nits
- LG LSAC0181.875 mm1200×675 mm600 nits
- LSAC025this model2.5 mm1200×675 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSAC025 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSAC025 draw?
- Each LG LSAC025 cabinet draws up to 290 W at full white and about 190 W with typical content — 358 W/m² max. A 10-cabinet wall therefore needs up to 2,900 W plus headroom.
- What is the resolution of the LG LSAC025?
- One cabinet is 480 × 270 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 9.60 m).
- How heavy is a LG LSAC025 wall?
- A single cabinet weighs 22.5 kg (27.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 338 kg before mounting structure.
- Is the LG LSAC025 suitable for outdoor use?
- No — the LG LSAC025 is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
