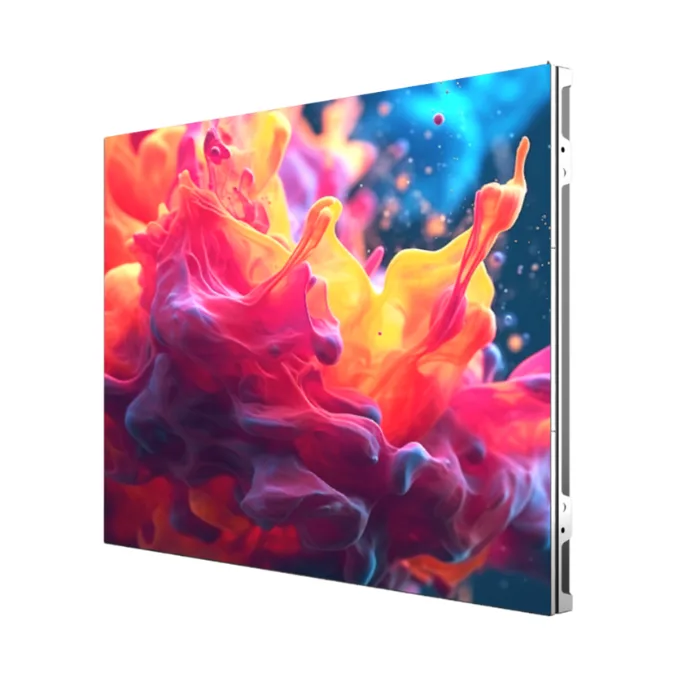

Leyard HKS II 2.5 specs
Lightweight indoor fine pitch LED displays with a slim profile and maintenance access The Leyard® HKSII Series Indoor Fine Pitch LED Display is designed to deliver stunning visual performance with ultra-slim installation and hassle-free maintenance.
Physical
- Pixel pitch
- 2.5 mm
- Cabinet size (W×H×D)
- 640 × 480 × 64 mm
- Weight
- 6.5 kg
- Weight per m²
- 21.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 256 × 192 px (4:3)
- Pixel density
- 160,000 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 4,800 Hz
- Contrast
- 8,000:1
- Viewing angle (H/V)
- 160° / 140°
- Processing depth
- 18 bit
Power & thermal
- Max power
- 151 W
- Average power
- 51 W
- Max power per m²
- 490 W/m²
- Average power per m²
- 165 W/m²
- Thermal load
- 514 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP61
- IP rating (rear)
- IP41
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Hdr
- HDR10
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50&60 Hz
- Color temperature
- 3000~38000 K, Adjustable
- Module resolution
- 128x64
- Refresh published
- >=4800 Hz
- Module composition
- 2x3
- Brightness published
- >=600 cd/m2
- Processing published
- 14~18 Bits
All variations in the HKS II series
All Leyard cabinets →Every Leyard HKS II series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard HKS II 1.251.25 mm640×480 mm550 nits
- Leyard HKS II 1.531.53 mm640×480 mm500 nits
- Leyard HKS II 1.861.86 mm640×480 mm500 nits
- Leyard HKS II 2.02 mm640×480 mm500 nits
- HKS II 2.5this model2.5 mm640×480 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 49,152 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
5,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
5,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
2,868cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
2,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard HKS II 2.5 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard HKS II 2.5 draw?
- Each Leyard HKS II 2.5 cabinet draws up to 151 W at full white and about 51 W with typical content — 490 W/m² max. A 10-cabinet wall therefore needs up to 1,505 W plus headroom.
- What is the resolution of the Leyard HKS II 2.5?
- One cabinet is 256 × 192 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 15 cabinets side by side reach 4K width (≈ 9.60 m).
- How heavy is a Leyard HKS II 2.5 wall?
- A single cabinet weighs 6.5 kg (21.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 98 kg before mounting structure.
- Is the Leyard HKS II 2.5 suitable for outdoor use?
- No — the Leyard HKS II 2.5 is an indoor cabinet (IP61 front). Its 600 nits suit controlled lighting, not direct sun.
