How much power does the Absen K1.8 V3 XXXL draw?

Each Absen K1.8 V3 XXXL cabinet draws up to 141 W at full white and about 47 W with typical content — 451 W/m² max. A 10-cabinet wall therefore needs up to 1,410 W plus headroom.

What is the resolution of the Absen K1.8 V3 XXXL?

One cabinet is 660 × 132 pixels at a 1.89 mm pixel pitch (278,784 px/m²). About 6 cabinets side by side reach 4K width (≈ 7.50 m).

How heavy is a Absen K1.8 V3 XXXL wall?

A single cabinet weighs 7.9 kg (25.3 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 119 kg before mounting structure.

Is the Absen K1.8 V3 XXXL suitable for outdoor use?

No — the Absen K1.8 V3 XXXL is an indoor cabinet (IP40 front). Its 700 nits suit controlled lighting, not direct sun.

1.89 mm pitchIndoorSMD

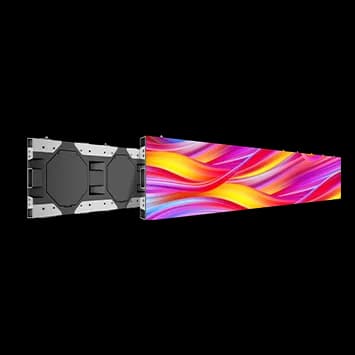

Absen K1.8 V3 XXXL specs

The K V3 series, for retail application scenarios, is available in 1.89mm, 2.5mm, 3.9mm pixel pitches. With the versatility of our 3+1+1 configuration, we make inventory management seamless for our esteemed clientele. The panel has a thickness of 39.5mm and a weight of 25kg/m2.

Pitch

1.56 mm1.89 mm2.5 mm 3.9 mm 3.91 mm

Size

750×250 mm 1000×250 mm1250×250 mm

Nits

700 nits3,000 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 1.89 mm
Cabinet size (W×H×D): 1,250 × 250 × 40 mm
Weight: 7.9 kg
Weight per m²: 25.3 kg/m²
Cabinet type: Fixed install
Service access: Front & rear


Cabinet resolution: 660 × 132 px (5:1)
Pixel density: 278,784 px/m²
Brightness (calibrated): 700 nits
Refresh rate: 3,840 Hz
Contrast: 4,500:1
Viewing angle (H/V): 160° / 160°
LED type: SMD
Processing depth: 14 bit

Power & thermal

Max power: 141 W
Average power: 47 W
Max power per m²: 451 W/m²
Average power per m²: 150 W/m²
Thermal load: 481 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP40
IP rating (rear): IP21
Operating temperature: 10 to 40 °C
LED lifetime: 100,000 h
Certifications: CCC, CE, ETL, FCC, RoHS, TUV

Manufacturer details

Power supply: 100 to 240
Cabinet material: Die-casting aluminum
Short description: • The panel has a thickness of 39.5mm(1.55") and a weight of 25kg/m2(55.11lbs/m2) • Support wall-mounting, hanging and stacking installation • Support full front and rear maintenance of module, PSU and receiving card
Operating humidity: 10 ~ 80%
Pixel configuration: Black SMD 3in1 1515

All variations in the K V3 series

All Absen cabinets →

Every Absen K V3 series cabinet and the exact pitch, size and brightness pairing it ships with.

Absen K1.5 V3 XL1.56 mm750×250 mm700 nits
Absen K1.5 V3 XXL1.56 mm1000×250 mm700 nits
Absen K1.5 V3 XXXL1.56 mm1250×250 mm700 nits
Absen K1.8 V3 XL1.89 mm750×250 mm700 nits
Absen K1.8 V3 XL HBR1.89 mm750×250 mm3,000 nits
Absen K1.8 V3 XXL1.89 mm1000×250 mm700 nits
Absen K1.8 V3 XXL HBR1.89 mm1000×250 mm3,000 nits
K1.8 V3 XXXLthis model1.89 mm1250×250 mm700 nits
Absen K1.8 V3 XXXL HBR1.89 mm1250×250 mm3,000 nits
Absen K2.5 V3 XL2.5 mm750×250 mm700 nits
Absen K2.5 V3 XL HBR2.5 mm750×250 mm3,000 nits
Absen K2.5 V3 XXL2.5 mm1000×250 mm700 nits
Absen K2.5 V3 XXL HBR2.5 mm1000×250 mm3,000 nits
Absen K2.5 V3 XXXL2.5 mm1250×250 mm700 nits
Absen K2.5 V3 XXXL HBR2.5 mm1250×250 mm3,000 nits
Absen K3.9 V3 XL3.9 mm750×250 mm700 nits
Absen K3.9 V3 XL HBR3.9 mm750×250 mm3,000 nits
Absen K3.9 V3 XXL3.9 mm1000×250 mm700 nits
Absen K3.9 V3 XXL HBR3.9 mm1000×250 mm3,000 nits
Absen K3.9 V3 XXXL3.91 mm1250×250 mm700 nits
Absen K3.9 V3 XXXL HBR3.91 mm1250×250 mm3,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 87,120 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
2,800cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
1,618cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
700cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
700cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen K1.8 V3 XXXL in the calculator to lay out the real chains and validate them.
