How much power does the Absen K3.9 V3 XXL draw?

Each Absen K3.9 V3 XXL cabinet draws up to 75 W at full white and about 25 W with typical content — 300 W/m² max. A 10-cabinet wall therefore needs up to 750 W plus headroom.

What is the resolution of the Absen K3.9 V3 XXL?

One cabinet is 256 × 64 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 15 cabinets side by side reach 4K width (≈ 15.00 m).

How heavy is a Absen K3.9 V3 XXL wall?

A single cabinet weighs 6.2 kg (24.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 93 kg before mounting structure.

Is the Absen K3.9 V3 XXL suitable for outdoor use?

No — the Absen K3.9 V3 XXL is an indoor cabinet (IP40 front). Its 700 nits suit controlled lighting, not direct sun.

3.9 mm pitchIndoorSMD

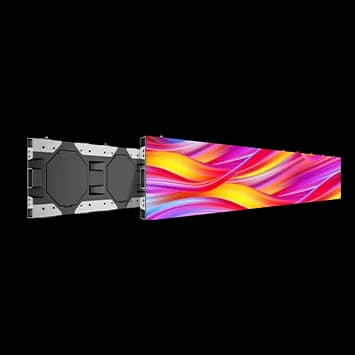

Absen K3.9 V3 XXL specs

The K V3 series, for retail application scenarios, is available in 1.89mm, 2.5mm, 3.9mm pixel pitches. With the versatility of our 3+1+1 configuration, we make inventory management seamless for our esteemed clientele. The panel has a thickness of 39.5mm and a weight of 25kg/m2.

Pitch

1.56 mm 1.89 mm 2.5 mm3.9 mm3.91 mm

Size

750×250 mm1000×250 mm1250×250 mm

Nits

700 nits3,000 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 3.9 mm
Cabinet size (W×H×D): 1,000 × 250 × 40 mm
Weight: 6.2 kg
Weight per m²: 24.8 kg/m²
Cabinet type: Fixed install
Service access: Front & rear


Cabinet resolution: 256 × 64 px (4:1)
Pixel density: 65,536 px/m²
Brightness (calibrated): 700 nits
Refresh rate: 3,840 Hz
Contrast: 4,500:1
Viewing angle (H/V): 160° / 160°
LED type: SMD
Processing depth: 14 bit

Power & thermal

Max power: 75 W
Average power: 25 W
Max power per m²: 300 W/m²
Average power per m²: 100 W/m²
Thermal load: 256 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP40
IP rating (rear): IP21
Operating temperature: 10 to 40 °C
LED lifetime: 100,000 h
Certifications: CCC, CE, ETL, FCC, RoHS, TUV

Manufacturer details

Power supply: 100 to 240
Cabinet material: Die-casting aluminum
Short description: • The panel has a thickness of 39.5mm(1.55") and a weight of 25kg/m2(55.11lbs/m2) • Support wall-mounting, hanging and stacking installation • Support full front and rear maintenance of module, PSU and receiving card
Operating humidity: 10 ~ 80%
Pixel configuration: Black SMD 3in1 2121

All variations in the K V3 series

All Absen cabinets →

Every Absen K V3 series cabinet and the exact pitch, size and brightness pairing it ships with.

Absen K1.5 V3 XL1.56 mm750×250 mm700 nits
Absen K1.5 V3 XXL1.56 mm1000×250 mm700 nits
Absen K1.5 V3 XXXL1.56 mm1250×250 mm700 nits
Absen K1.8 V3 XL1.89 mm750×250 mm700 nits
Absen K1.8 V3 XL HBR1.89 mm750×250 mm3,000 nits
Absen K1.8 V3 XXL1.89 mm1000×250 mm700 nits
Absen K1.8 V3 XXL HBR1.89 mm1000×250 mm3,000 nits
Absen K1.8 V3 XXXL1.89 mm1250×250 mm700 nits
Absen K1.8 V3 XXXL HBR1.89 mm1250×250 mm3,000 nits
Absen K2.5 V3 XL2.5 mm750×250 mm700 nits
Absen K2.5 V3 XL HBR2.5 mm750×250 mm3,000 nits
Absen K2.5 V3 XXL2.5 mm1000×250 mm700 nits
Absen K2.5 V3 XXL HBR2.5 mm1000×250 mm3,000 nits
Absen K2.5 V3 XXXL2.5 mm1250×250 mm700 nits
Absen K2.5 V3 XXXL HBR2.5 mm1250×250 mm3,000 nits
Absen K3.9 V3 XL3.9 mm750×250 mm700 nits
Absen K3.9 V3 XL HBR3.9 mm750×250 mm3,000 nits
K3.9 V3 XXLthis model3.9 mm1000×250 mm700 nits
Absen K3.9 V3 XXL HBR3.9 mm1000×250 mm3,000 nits
Absen K3.9 V3 XXXL3.91 mm1250×250 mm700 nits
Absen K3.9 V3 XXXL HBR3.91 mm1250×250 mm3,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
15,600cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
15,600cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
8,605cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
7,800cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
3,900cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
3,900cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen K3.9 V3 XXL in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen K3.9 V3 XXL draw?: Each Absen K3.9 V3 XXL cabinet draws up to 75 W at full white and about 25 W with typical content — 300 W/m² max. A 10-cabinet wall therefore needs up to 750 W plus headroom.
What is the resolution of the Absen K3.9 V3 XXL?: One cabinet is 256 × 64 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 15 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a Absen K3.9 V3 XXL wall?: A single cabinet weighs 6.2 kg (24.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 93 kg before mounting structure.
Is the Absen K3.9 V3 XXL suitable for outdoor use?: No — the Absen K3.9 V3 XXL is an indoor cabinet (IP40 front). Its 700 nits suit controlled lighting, not direct sun.

Size a wall with the K3.9 V3 XXL

Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
