How much power does the Absen K2.5 V3 XL HBR draw?

Each Absen K2.5 V3 XL HBR cabinet draws up to 68 W at full white and about 23 W with typical content — 363 W/m² max. A 10-cabinet wall therefore needs up to 680 W plus headroom.

What is the resolution of the Absen K2.5 V3 XL HBR?

One cabinet is 300 × 100 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 13 cabinets side by side reach 4K width (≈ 9.75 m).

How heavy is a Absen K2.5 V3 XL HBR wall?

A single cabinet weighs 4.6 kg (24.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 69 kg before mounting structure.

Is the Absen K2.5 V3 XL HBR suitable for outdoor use?

No — the Absen K2.5 V3 XL HBR is an indoor cabinet (IP40 front). Its 3,000 nits suit controlled lighting, not direct sun.

2.5 mm pitchIndoorSMD

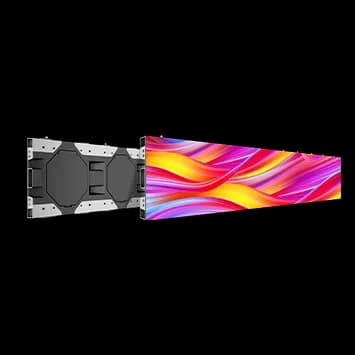

Absen K2.5 V3 XL HBR specs

The K V3 series, for retail application scenarios, is available in 1.89mm, 2.5mm, 3.9mm pixel pitches. With the versatility of our 3+1+1 configuration, we make inventory management seamless for our esteemed clientele. The panel has a thickness of 39.5mm and a weight of 25kg/m2.

Pitch

1.56 mm 1.89 mm2.5 mm3.9 mm 3.91 mm

Size

750×250 mm1000×250 mm 1250×250 mm

Nits

700 nits3,000 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 2.5 mm
Cabinet size (W×H×D): 750 × 250 × 40 mm
Weight: 4.6 kg
Weight per m²: 24.5 kg/m²
Cabinet type: Fixed install
Service access: Front & rear


Cabinet resolution: 300 × 100 px (3:1)
Pixel density: 160,000 px/m²
Brightness (calibrated): 3,000 nits
Refresh rate: 3,840 Hz
Contrast: 8,000:1
Viewing angle (H/V): 160° / 160°
LED type: SMD
Processing depth: 14 bit

Power & thermal

Max power: 68 W
Average power: 23 W
Max power per m²: 363 W/m²
Average power per m²: 123 W/m²
Thermal load: 232 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP40
IP rating (rear): IP21
Operating temperature: 10 to 40 °C
LED lifetime: 100,000 h
Certifications: CCC, CE, ETL, FCC, RoHS, TUV

Manufacturer details

Power supply: 100 to 240
Cabinet material: Die-casting aluminum
Short description: • The panel has a thickness of 39.5mm(1.55") and a weight of 25kg/m2(55.11lbs/m2) • Support wall-mounting, hanging and stacking installation • Support full front and rear maintenance of module, PSU and receiving card
Operating humidity: 10 ~ 80%
Pixel configuration: SMD 3in1 1415

All variations in the K V3 series

All Absen cabinets →

Every Absen K V3 series cabinet and the exact pitch, size and brightness pairing it ships with.

Absen K1.5 V3 XL1.56 mm750×250 mm700 nits
Absen K1.5 V3 XXL1.56 mm1000×250 mm700 nits
Absen K1.5 V3 XXXL1.56 mm1250×250 mm700 nits
Absen K1.8 V3 XL1.89 mm750×250 mm700 nits
Absen K1.8 V3 XL HBR1.89 mm750×250 mm3,000 nits
Absen K1.8 V3 XXL1.89 mm1000×250 mm700 nits
Absen K1.8 V3 XXL HBR1.89 mm1000×250 mm3,000 nits
Absen K1.8 V3 XXXL1.89 mm1250×250 mm700 nits
Absen K1.8 V3 XXXL HBR1.89 mm1250×250 mm3,000 nits
Absen K2.5 V3 XL2.5 mm750×250 mm700 nits
K2.5 V3 XL HBRthis model2.5 mm750×250 mm3,000 nits
Absen K2.5 V3 XXL2.5 mm1000×250 mm700 nits
Absen K2.5 V3 XXL HBR2.5 mm1000×250 mm3,000 nits
Absen K2.5 V3 XXXL2.5 mm1250×250 mm700 nits
Absen K2.5 V3 XXXL HBR2.5 mm1250×250 mm3,000 nits
Absen K3.9 V3 XL3.9 mm750×250 mm700 nits
Absen K3.9 V3 XL HBR3.9 mm750×250 mm3,000 nits
Absen K3.9 V3 XXL3.9 mm1000×250 mm700 nits
Absen K3.9 V3 XXL HBR3.9 mm1000×250 mm3,000 nits
Absen K3.9 V3 XXXL3.91 mm1250×250 mm700 nits
Absen K3.9 V3 XXXL HBR3.91 mm1250×250 mm3,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 30,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
8,400cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
8,400cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
4,700cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
4,200cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
2,100cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
2,100cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen K2.5 V3 XL HBR in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen K2.5 V3 XL HBR draw?: Each Absen K2.5 V3 XL HBR cabinet draws up to 68 W at full white and about 23 W with typical content — 363 W/m² max. A 10-cabinet wall therefore needs up to 680 W plus headroom.
What is the resolution of the Absen K2.5 V3 XL HBR?: One cabinet is 300 × 100 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 13 cabinets side by side reach 4K width (≈ 9.75 m).
How heavy is a Absen K2.5 V3 XL HBR wall?: A single cabinet weighs 4.6 kg (24.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 69 kg before mounting structure.
Is the Absen K2.5 V3 XL HBR suitable for outdoor use?: No — the Absen K2.5 V3 XL HBR is an indoor cabinet (IP40 front). Its 3,000 nits suit controlled lighting, not direct sun.
