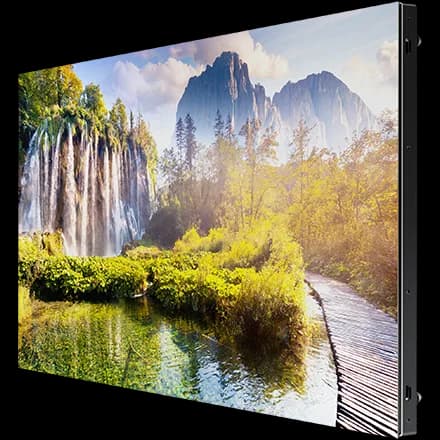

Samsung IE040A specs
Samsung's IEA series LED displays deliver stunning picture quality at a cost-efficient price point. These displays can be custom-fit for specific space requirements so that customers can enjoy a more immersive experience.
Physical
- Pixel pitch
- 4 mm
- Cabinet size (W×H×D)
- 960 × 540 × 80 mm
- Weight
- 10.8 kg
- Weight per m²
- 20.8 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 240 × 135 px (16:9)
- Pixel density
- 62,500 px/m²
- Brightness (calibrated)
- 500 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 150° / 150°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 180 W
- Average power
- 60 W
- Max power per m²
- 347 W/m²
- Average power per m²
- 116 W/m²
- Thermal load
- 614 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class A
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Weight published
- 10.8 kg
- Color temperature
- 6,500K ± 500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH040IEACLS
- Pixel configuration
- SMD 3-in-1 2121
- Brightness published
- 800 nit / 500 nit
- Installation options
- flat,concave,inner-l
All variations in the IEA series
All Samsung cabinets →Every Samsung IEA series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IE015A1.5 mm960×540 mm500 nits
- Samsung IE020A2 mm960×540 mm500 nits
- Samsung IE025A2.5 mm960×540 mm500 nits
- IE040Athis model4 mm960×540 mm500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
8,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
8,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,351cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IE040A in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IE040A draw?
- Each Samsung IE040A cabinet draws up to 180 W at full white and about 60 W with typical content — 347 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
- What is the resolution of the Samsung IE040A?
- One cabinet is 240 × 135 pixels at a 4 mm pixel pitch (62,500 px/m²). About 16 cabinets side by side reach 4K width (≈ 15.36 m).
- How heavy is a Samsung IE040A wall?
- A single cabinet weighs 10.8 kg (20.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 162 kg before mounting structure.
- Is the Samsung IE040A suitable for outdoor use?
- No — the Samsung IE040A is an indoor cabinet (IP20 front). Its 500 nits suit controlled lighting, not direct sun.
