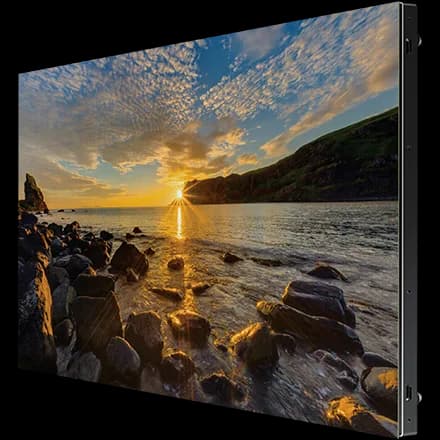

Samsung IF040R-V specs
LED signage has become an increasingly popular tool for businesses to deliver compelling messages to customers. Samsung's IFR series combines best-in-class LED picture quality, flexible design options and efficient operation in any environment.
Physical
- Pixel pitch
- 4 mm
- Cabinet size (W×H×D)
- 960 × 540 × 80 mm
- Weight
- 12.4 kg
- Weight per m²
- 23.9 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 240 × 135 px (16:9)
- Pixel density
- 62,500 px/m²
- Brightness (calibrated)
- 900 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 260 W
- Average power
- 87 W
- Max power per m²
- 502 W/m²
- Average power per m²
- 168 W/m²
- Thermal load
- 887 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class A
Manufacturer details
- Usage
- indoor,virtual-production
- Features
- hdr10,hdr10+
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Weight published
- 12.4 (kg
- Color temperature
- 6,500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH040IFRCLV
- Pixel configuration
- SMD 3-in-1
- Brightness published
- 1,500 nit / 900 nit
- Installation options
- flat,concave,inner-l
All variations in the IFR-V series
All Samsung cabinets →Every Samsung IFR-V series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IF015R-V1.5 mm960×540 mm800 nits
- Samsung IF020R-V2 mm960×540 mm1,000 nits
- Samsung IF025R-V2.5 mm960×540 mm1,000 nits
- IF040R-Vthis model4 mm960×540 mm900 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
8,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
8,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,351cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IF040R-V in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IF040R-V draw?
- Each Samsung IF040R-V cabinet draws up to 260 W at full white and about 87 W with typical content — 502 W/m² max. A 10-cabinet wall therefore needs up to 2,600 W plus headroom.
- What is the resolution of the Samsung IF040R-V?
- One cabinet is 240 × 135 pixels at a 4 mm pixel pitch (62,500 px/m²). About 16 cabinets side by side reach 4K width (≈ 15.36 m).
- How heavy is a Samsung IF040R-V wall?
- A single cabinet weighs 12.4 kg (23.9 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 186 kg before mounting structure.
- Is the Samsung IF040R-V suitable for outdoor use?
- No — the Samsung IF040R-V is an indoor cabinet (IP20 front). Its 900 nits suit controlled lighting, not direct sun.
