How much power does the LG LSBF018 draw?

Each LG LSBF018 cabinet draws up to 413 W at full white and about 166 W with typical content — 510 W/m² max. A 10-cabinet wall therefore needs up to 4,130 W plus headroom.

What is the resolution of the LG LSBF018?

One cabinet is 640 × 360 pixels at a 1.88 mm pixel pitch (284,444 px/m²). About 6 cabinets side by side reach 4K width (≈ 7.20 m).

How heavy is a LG LSBF018 wall?

A single cabinet weighs 23 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 345 kg before mounting structure.

Is the LG LSBF018 suitable for outdoor use?

No — the LG LSBF018 is an indoor cabinet (IP50 front). Its 600 nits suit controlled lighting, not direct sun.

1.88 mm pitchIndoorSMD

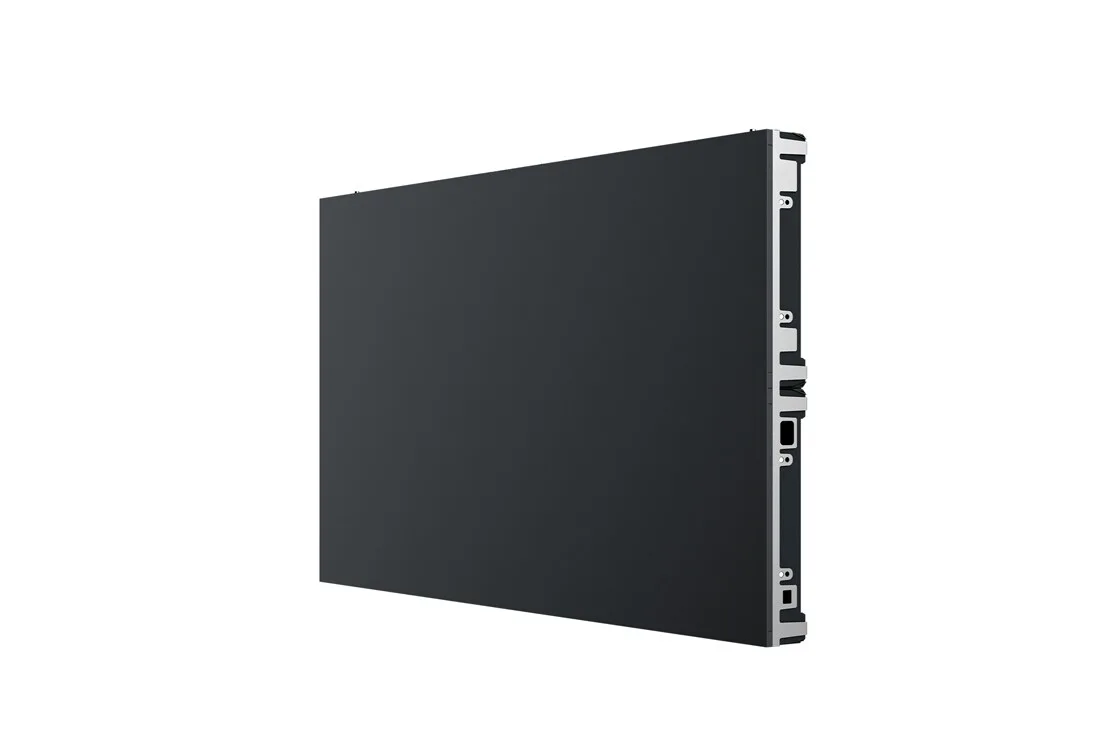

LG LSBF018 specs

This cost effective indoor LED series features a durable frame design & allows you to combine 54'' & 27'' models to create custom screens.

Pitch

1.25 mm 1.56 mm1.88 mm2.5 mm

Size

1200×675 mm

Nits

600 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 1.88 mm
Cabinet size (W×H×D): 1,200 × 675 × 72 mm
Weight: 23 kg
Weight per m²: 28.4 kg/m²
Cabinet type: Fixed install


Cabinet resolution: 640 × 360 px (16:9)
Pixel density: 284,444 px/m²
Brightness (calibrated): 600 nits
Refresh rate: 3,840 Hz
Viewing angle (H/V): 160° / 150°
LED type: SMD
Processing depth: 14 bit

Power & thermal

Max power: 413 W
Average power: 166 W
Max power per m²: 510 W/m²
Average power per m²: 205 W/m²
Thermal load: 1,409 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP50
IP rating (rear): IP50
Operating temperature: -20 to 40 °C
LED lifetime: 100,000 h

Manufacturer details

Power supply: 100 to 240
Frame rates hz: 50 / 60
Short description: LSBF Indoor LED Series
Operating humidity: 10 ~ 80%
Pixel configuration: Single SMD

All variations in the LSBF series

All LG cabinets →

Every LG LSBF series cabinet and the exact pitch, size and brightness pairing it ships with.

LG LSBF0121.25 mm1200×675 mm600 nits
LG LSBF0151.56 mm1200×675 mm600 nits
LSBF018this model1.88 mm1200×675 mm600 nits
LG LSBF0252.5 mm1200×675 mm600 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
800cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
800cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
611cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
400cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
200cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
200cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSBF018 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LSBF018 draw?: Each LG LSBF018 cabinet draws up to 413 W at full white and about 166 W with typical content — 510 W/m² max. A 10-cabinet wall therefore needs up to 4,130 W plus headroom.
What is the resolution of the LG LSBF018?: One cabinet is 640 × 360 pixels at a 1.88 mm pixel pitch (284,444 px/m²). About 6 cabinets side by side reach 4K width (≈ 7.20 m).
How heavy is a LG LSBF018 wall?: A single cabinet weighs 23 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 345 kg before mounting structure.
Is the LG LSBF018 suitable for outdoor use?: No — the LG LSBF018 is an indoor cabinet (IP50 front). Its 600 nits suit controlled lighting, not direct sun.
