wikiLED
1.56 mm pitchIndoorSMD

LG LSBF015 specs

This cost effective indoor LED series features a durable frame design & allows you to combine 54'' & 27'' models to create custom screens.

Pitch
1.25 mm1.56 mm1.88 mm2.5 mm
Size
1200×675 mm
Nits
600 nits
Open in calculatorCompareControllersRunning cost

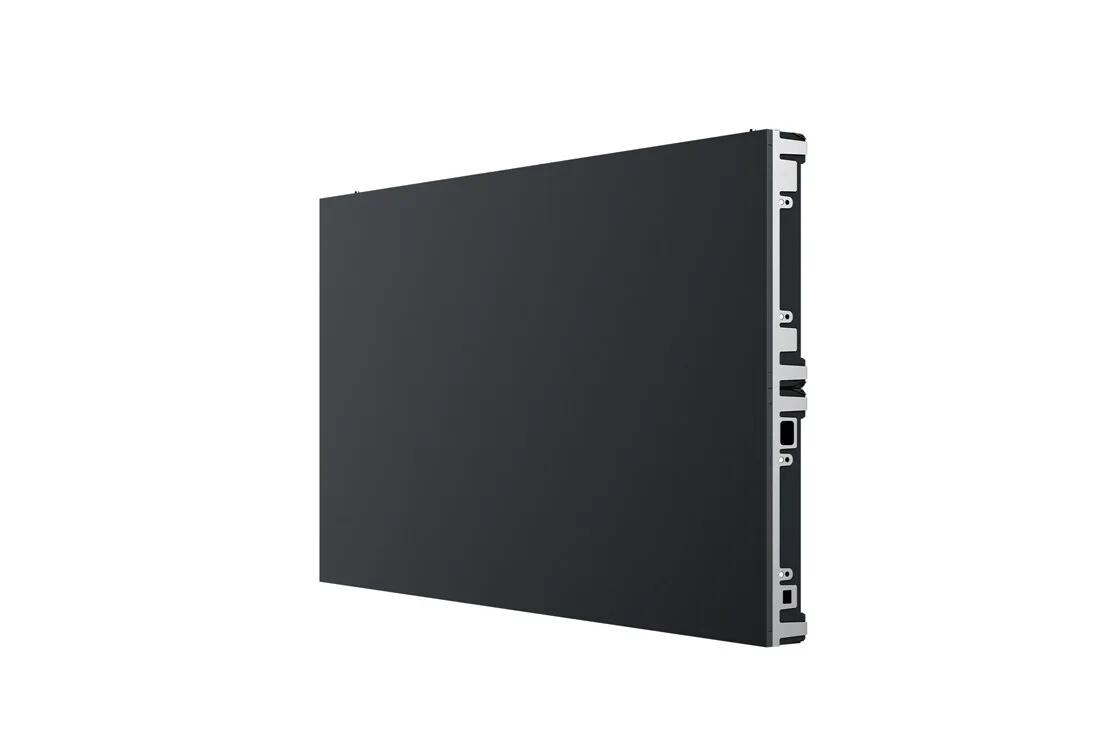

LG LSBF015 LED cabinet

Physical

Pixel pitch
1.56 mm
Cabinet size (W×H×D)
1,200 × 675 × 72 mm
Weight
23 kg
Weight per m²
28.4 kg/m²
Cabinet type
Fixed install


Cabinet resolution
768 × 432 px (16:9)
Pixel density
409,600 px/m²
Brightness (calibrated)
600 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
160° / 150°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
428 W
Average power
182 W
Max power per m²
528 W/m²
Average power per m²
225 W/m²
Thermal load
1,460 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP50
IP rating (rear)
IP50
Operating temperature
-20 to 40 °C
LED lifetime
100,000 h

Manufacturer details

Power supply
100 to 240
Frame rates hz
50 / 60
Short description
Indoor LED display with high brightness and easy maintenance.
Operating humidity
10 ~ 80%
Pixel configuration
Single SMD

All variations in the LSBF series

All LG cabinets →

Every LG LSBF series cabinet and the exact pitch, size and brightness pairing it ships with.

  • LG LSBF0121.25 mm1200×675 mm600 nits
  • LSBF015this model1.56 mm1200×675 mm600 nits
  • LG LSBF0181.88 mm1200×675 mm600 nits
  • LG LSBF0252.5 mm1200×675 mm600 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 331,776 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSBF015 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LSBF015 draw?
Each LG LSBF015 cabinet draws up to 428 W at full white and about 182 W with typical content — 528 W/m² max. A 10-cabinet wall therefore needs up to 4,280 W plus headroom.
What is the resolution of the LG LSBF015?
One cabinet is 768 × 432 pixels at a 1.56 mm pixel pitch (409,600 px/m²). About 5 cabinets side by side reach 4K width (≈ 6.00 m).
How heavy is a LG LSBF015 wall?
A single cabinet weighs 23 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 345 kg before mounting structure.
Is the LG LSBF015 suitable for outdoor use?
No — the LG LSBF015 is an indoor cabinet (IP50 front). Its 600 nits suit controlled lighting, not direct sun.
