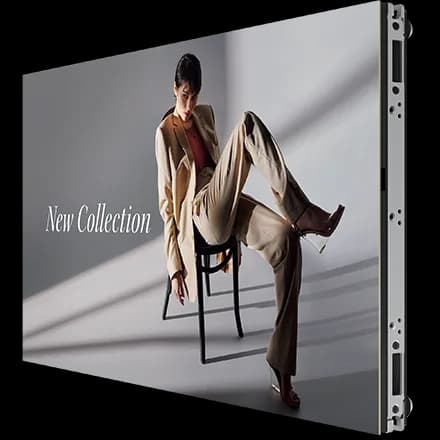

Samsung MM015F-S specs
The Wall is a pioneer, constantly opening new ways for unmatched visual statements. Leveraging Samsung's rich R&D heritage, it now offers a more business-focused solution while maintaining its signature picture quality. Introducing The Wall M series—designed to revolutionize the way you do business.
Physical
- Pixel pitch
- 1.56 mm
- Cabinet size (W×H×D)
- 600 × 338 × 50 mm
- Weight
- 5.1 kg
- Weight per m²
- 25.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 409,600 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 160°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 83 W
- Average power
- 55 W
- Max power per m²
- 410 W/m²
- Average power per m²
- 272 W/m²
- Thermal load
- 283 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class A, TUV Eye Comfort
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60 (100/120 FRC)
- Weight published
- 5.1 (kg
- Color temperature
- 6,500K ± 500K
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH015MMFYGS
- Pixel configuration
- Flip-chip RGB LED
- Brightness published
- 800 nit / 600 nit
- Installation options
- flat,concave,inner-l
All variations in the MMF-S series
All Samsung cabinets →Every Samsung MMF-S series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung MM012F-S1.25 mm600×338 mm600 nits
- MM015F-Sthis model1.56 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung MM015F-S in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung MM015F-S draw?
- Each Samsung MM015F-S cabinet draws up to 83 W at full white and about 55 W with typical content — 410 W/m² max. A 10-cabinet wall therefore needs up to 830 W plus headroom.
- What is the resolution of the Samsung MM015F-S?
- One cabinet is 384 × 216 pixels at a 1.56 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
- How heavy is a Samsung MM015F-S wall?
- A single cabinet weighs 5.1 kg (25.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 77 kg before mounting structure.
- Is the Samsung MM015F-S suitable for outdoor use?
- No — the Samsung MM015F-S is an indoor cabinet (IP40 front). Its 600 nits suit controlled lighting, not direct sun.
