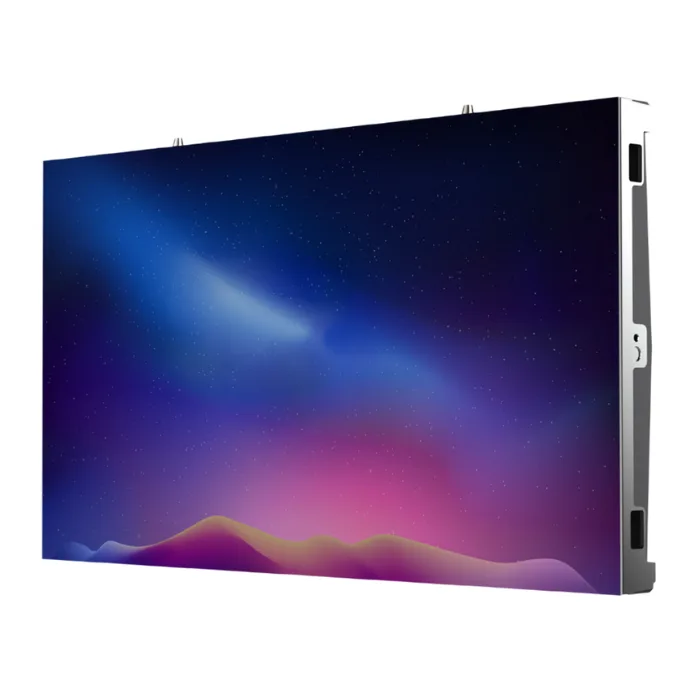

Leyard MG-2COB-1.5 specs
The Leyard® MG-2COB Series video wall delivers unmatched visual performance with the benefits of Chip-On-Board (COB) technology using flip-chip MicroLEDs. Available in 0.93, 1.25 and 1.56mm pixel pitches, these displays deliver high resolution, vibrant and reliable performance.
Physical
- Pixel pitch
- 1.5625 mm
- Cabinet size (W×H×D)
- 600 × 338 × 40 mm
- Weight
- 4.3 kg
- Weight per m²
- 21.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 384 × 216 px (16:9)
- Pixel density
- 409,600 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 25,000:1
- Viewing angle (H/V)
- 170° / 150°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 81 W
- Average power
- 25 W
- Max power per m²
- 400 W/m²
- Average power per m²
- 125 W/m²
- Thermal load
- 276 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP65
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50/60
- Pitch published
- 1.56
- Color temperature
- 3000-10000 K adjustable
- Module dimensions
- 300x168.75 mm
- Module resolution
- 192x108
- Refresh published
- 1600-3840 Hz
- Module composition
- 2x2
- Pixel configuration
- Full Flip Chip COB
All variations in the MG-2COB series
All Leyard cabinets →Every Leyard MG-2COB series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard MG-2COB-0.90.9375 mm600×338 mm800 nits
- Leyard MG-2COB-1.21.25 mm600×338 mm600 nits
- MG-2COB-1.5this model1.5625 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard MG-2COB-1.5 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard MG-2COB-1.5 draw?
- Each Leyard MG-2COB-1.5 cabinet draws up to 81 W at full white and about 25 W with typical content — 400 W/m² max. A 10-cabinet wall therefore needs up to 810 W plus headroom.
- What is the resolution of the Leyard MG-2COB-1.5?
- One cabinet is 384 × 216 pixels at a 1.5625 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
- How heavy is a Leyard MG-2COB-1.5 wall?
- A single cabinet weighs 4.3 kg (21.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 65 kg before mounting structure.
- Is the Leyard MG-2COB-1.5 suitable for outdoor use?
- No — the Leyard MG-2COB-1.5 is an indoor cabinet (IP65 front). Its 600 nits suit controlled lighting, not direct sun.
