INFiLED IRWK1.56-SSC specs

High-resolution fine-pitch LED engineered for corporate, education and value-driven projects — where premium performance and intelligent economics must coexist.

Pitch
0.93 mm1.2 mm1.25 mm1.5 mm1.56 mm1.8 mm1.875 mm2.5 mm
Size
600×338 mm
Nits
600 nits700 nits
Open in calculatorCompareControllersRunning costDatasheet

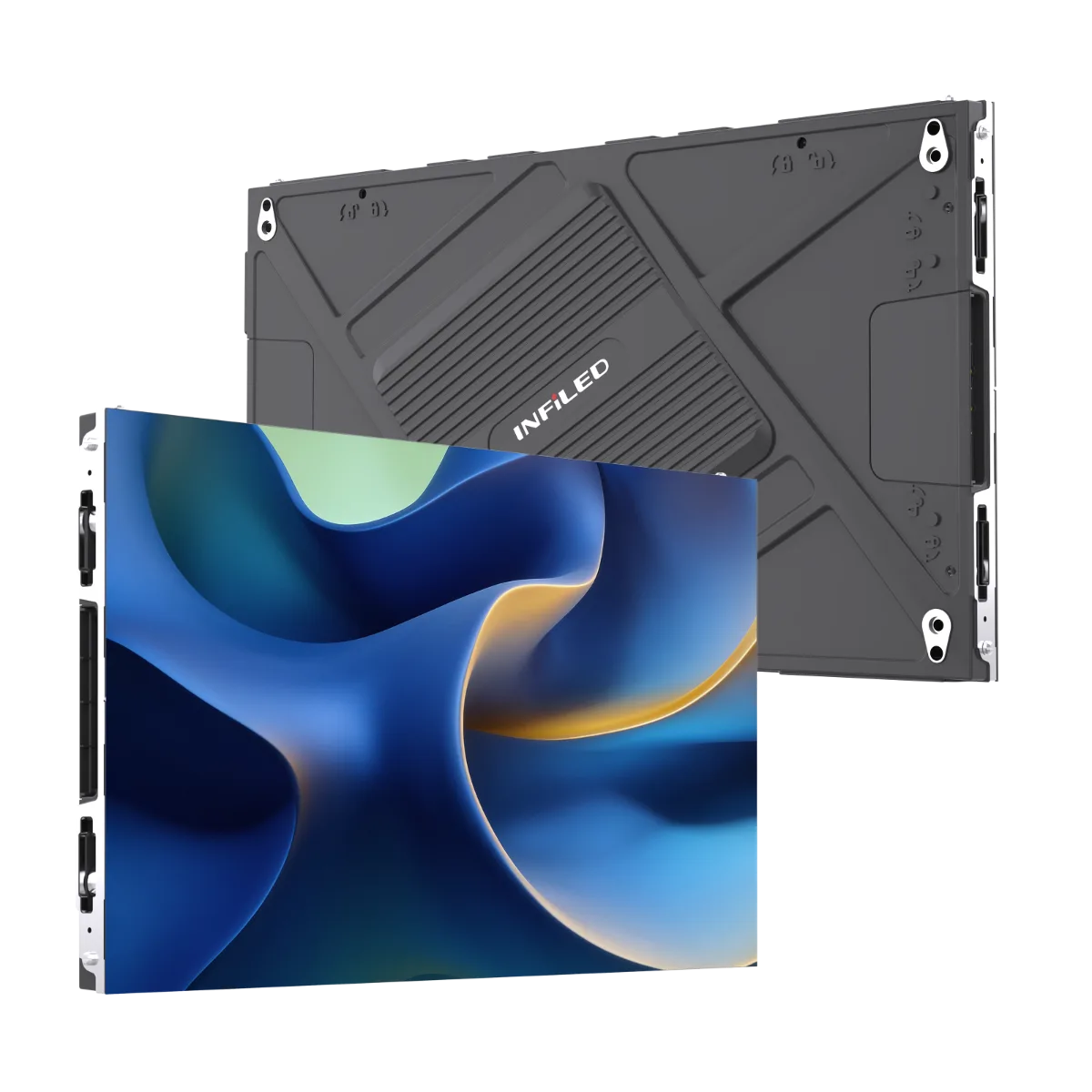

INFiLED IRWK1.56-SSC LED cabinet

Physical

Pixel pitch
1.56 mm
Cabinet size (W×H×D)
600 × 338 × 30 mm
Weight
5.2 kg
Weight per m²
25.7 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
384 × 216 px (16:9)
Pixel density
409,600 px/m²
Brightness (calibrated)
600 nits
Refresh rate
3,840 Hz
Contrast
30,000:1
Viewing angle (H/V)
160° / 160°
LED type
COB
Processing depth
13 bit

Power & thermal

Max power
60 W
Average power
20 W
Max power per m²
296 W/m²
Average power per m²
99 W/m²
Thermal load
205 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP65
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/48
Brochure url
https://www.infiled.com/wp-content/uploads/2024/09/aaff_brochure_wk_2026cob.pdf
Control mode
Synchronous control
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Fixed Installation
Display colors
0.55T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
1,56mm
Power published
60 / 20 W/panel (max / avg)
Cabinet material
Die-cast Aluminum
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
409.600pixels/㎡
Weight published
5,2kg (11,46lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
150x168,8mm
Module resolution
96x108pixels
Contrast published
30000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
13bit
Pixel configuration
COB
Brightness published
600nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front

All variations in the WK series

All INFiLED cabinets →

Every INFiLED WK series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRWK1.56-SSC in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRWK1.56-SSC draw?
Each INFiLED IRWK1.56-SSC cabinet draws up to 60 W at full white and about 20 W with typical content — 296 W/m² max. A 10-cabinet wall therefore needs up to 600 W plus headroom.
What is the resolution of the INFiLED IRWK1.56-SSC?
One cabinet is 384 × 216 pixels at a 1.56 mm pixel pitch (409,600 px/m²). About 10 cabinets side by side reach 4K width (≈ 6.00 m).
How heavy is a INFiLED IRWK1.56-SSC wall?
A single cabinet weighs 5.2 kg (25.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 78 kg before mounting structure.
Is the INFiLED IRWK1.56-SSC suitable for outdoor use?
No — the INFiLED IRWK1.56-SSC is an indoor cabinet (IP65 front). Its 600 nits suit controlled lighting, not direct sun.
