How much power does the LG LSBF025 draw?

Each LG LSBF025 cabinet draws up to 372 W at full white and about 145 W with typical content — 459 W/m² max. A 10-cabinet wall therefore needs up to 3,720 W plus headroom.

What is the resolution of the LG LSBF025?

One cabinet is 480 × 270 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 9.60 m).

How heavy is a LG LSBF025 wall?

A single cabinet weighs 23 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 345 kg before mounting structure.

Is the LG LSBF025 suitable for outdoor use?

No — the LG LSBF025 is an indoor cabinet (IP50 front). Its 600 nits suit controlled lighting, not direct sun.

2.5 mm pitchIndoorSMD

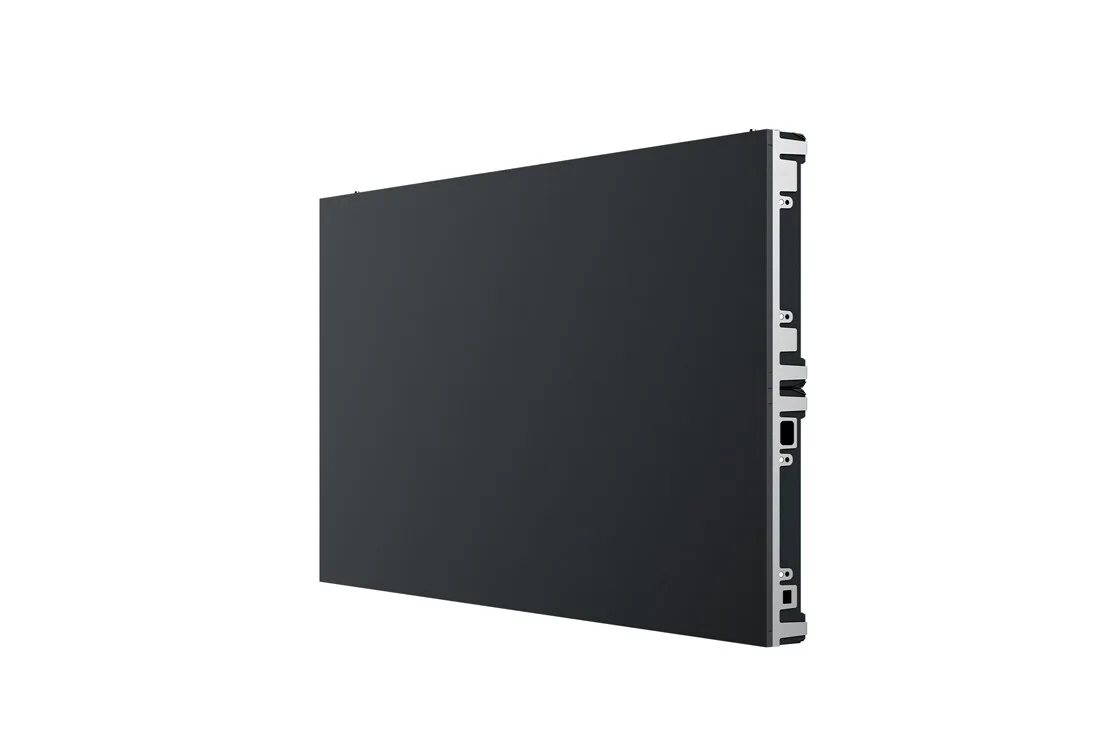

LG LSBF025 specs

This cost effective indoor LED series features a durable frame design & allows you to combine 54'' & 27'' models to create custom screens.

Pitch

1.25 mm 1.56 mm 1.88 mm2.5 mm

Size

1200×675 mm

Nits

600 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 2.5 mm
Cabinet size (W×H×D): 1,200 × 675 × 72 mm
Weight: 23 kg
Weight per m²: 28.4 kg/m²
Cabinet type: Fixed install


Cabinet resolution: 480 × 270 px (16:9)
Pixel density: 160,000 px/m²
Brightness (calibrated): 600 nits
Viewing angle (H/V): 160° / 150°
LED type: SMD
Processing depth: 14 bit

Power & thermal

Max power: 372 W
Average power: 145 W
Max power per m²: 459 W/m²
Average power per m²: 179 W/m²
Thermal load: 1,269 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP50
IP rating (rear): IP50
Operating temperature: -20 to 40 °C

Manufacturer details

Short description: LSBF Indoor LED Series
Operating humidity: 10 ~ 80%
Pixel configuration: Single SMD

All variations in the LSBF series

All LG cabinets →

Every LG LSBF series cabinet and the exact pitch, size and brightness pairing it ships with.

LG LSBF0121.25 mm1200×675 mm600 nits
LG LSBF0151.56 mm1200×675 mm600 nits
LG LSBF0181.88 mm1200×675 mm600 nits
LSBF025this model2.5 mm1200×675 mm600 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
2,000cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
1,087cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
500cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
500cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSBF025 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LSBF025 draw?: Each LG LSBF025 cabinet draws up to 372 W at full white and about 145 W with typical content — 459 W/m² max. A 10-cabinet wall therefore needs up to 3,720 W plus headroom.
What is the resolution of the LG LSBF025?: One cabinet is 480 × 270 pixels at a 2.5 mm pixel pitch (160,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 9.60 m).
How heavy is a LG LSBF025 wall?: A single cabinet weighs 23 kg (28.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 345 kg before mounting structure.
Is the LG LSBF025 suitable for outdoor use?: No — the LG LSBF025 is an indoor cabinet (IP50 front). Its 600 nits suit controlled lighting, not direct sun.
