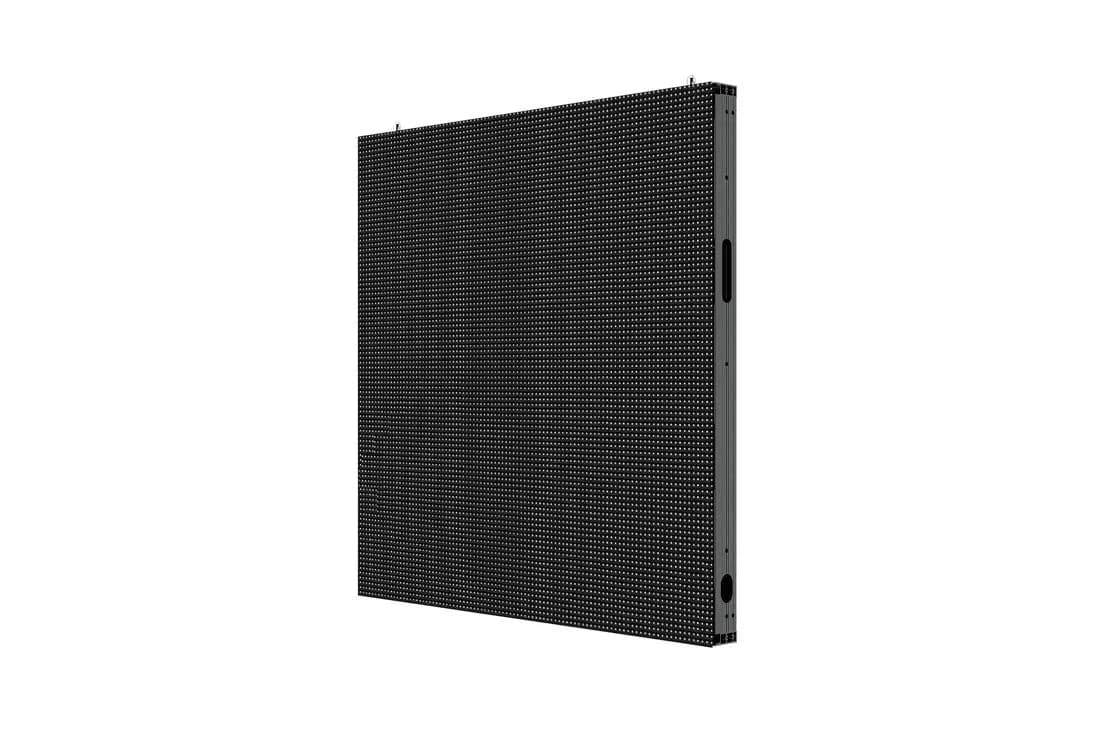

LG GSPA100-GA specs
Ideal for long-distance visibility, our GSPA6.6/10.0 models are perfect for large billboards and mid-to-high building facades. Capture attention from a distance with crisp, clear text and vibrant visuals on our outdoor LED signage.
Physical
- Pixel pitch
- 10 mm
- Cabinet size (W×H×D)
- 960 × 960 × 68 mm
- Weight
- 20.5 kg
- Weight per m²
- 22.2 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 96 × 96 px (1:1)
- Pixel density
- 10,000 px/m²
- Brightness (calibrated)
- 10,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 580 W
- Average power
- 193 W
- Max power per m²
- 629 W/m²
- Average power per m²
- 209 W/m²
- Thermal load
- 1,979 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -30 to 60 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, CB, ETL, FCC, BIS, KC (TBD), RoHS, REACH, UAE RoHS
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Outdoor Signage with Long-Range Visibility
- Operating humidity
- 10 ~ 80%
- Pixel configuration
- Single SMD
All variations in the GSPA series
All LG cabinets →Every LG GSPA series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG GSPA066-GA6.67 mm960×960 mm8,000 nits
- GSPA100-GAthis model10 mm960×960 mm10,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 9,216 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
28,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
28,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
15,299cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
14,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
7,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
7,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG GSPA100-GA in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG GSPA100-GA draw?
- Each LG GSPA100-GA cabinet draws up to 580 W at full white and about 193 W with typical content — 629 W/m² max. A 10-cabinet wall therefore needs up to 5,800 W plus headroom.
- What is the resolution of the LG GSPA100-GA?
- One cabinet is 96 × 96 pixels at a 10 mm pixel pitch (10,000 px/m²). About 40 cabinets side by side reach 4K width (≈ 38.40 m).
- How heavy is a LG GSPA100-GA wall?
- A single cabinet weighs 20.5 kg (22.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 308 kg before mounting structure.
- Is the LG GSPA100-GA suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 10,000 nits of calibrated brightness.
