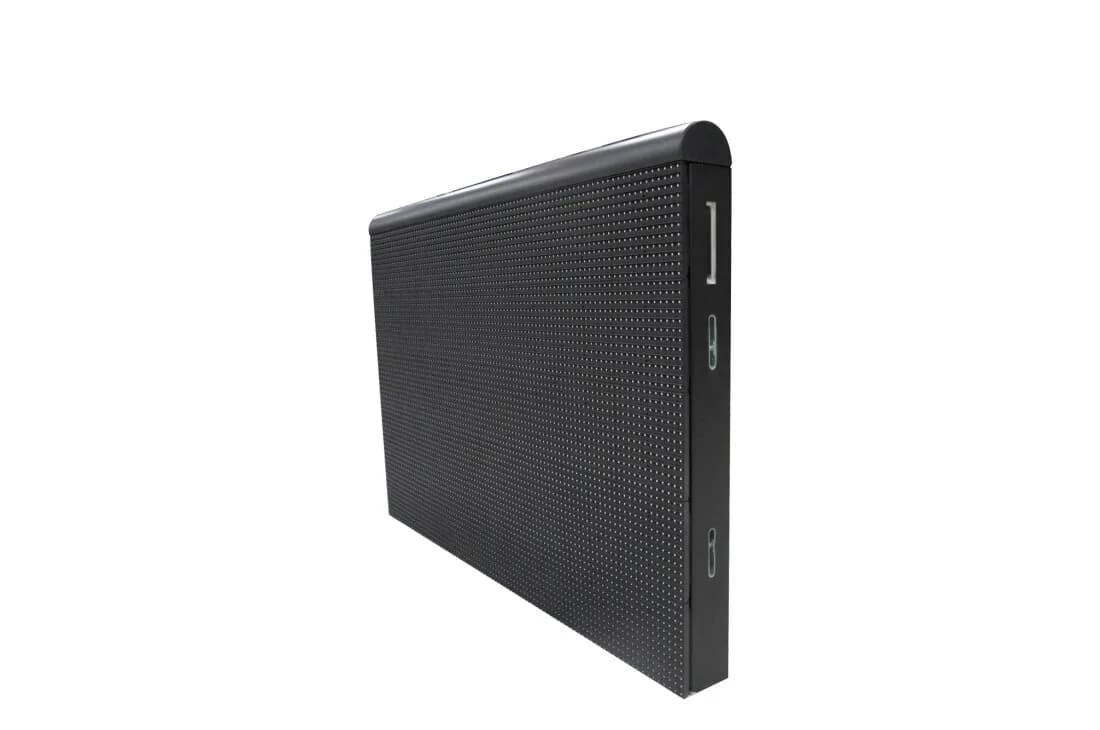

LG LBB160DA4D2 specs
The LBB series meets the LED technical specifications of UEFA (Union of European Football Associations) that a perimeter LED signage should follow when installed in UEFA's stadiums.
Physical
- Pixel pitch
- 16 mm
- Cabinet size (W×H×D)
- 1,536 × 960 × 215 mm
- Weight
- 71 kg
- Weight per m²
- 48.1 kg/m²
- Cabinet type
- Perimeter
- Cabinet resolution
- 96 × 60 px (8:5)
- Pixel density
- 3,906 px/m²
- Brightness (calibrated)
- 6,000 nits
- Refresh rate
- 4,000 Hz
- Viewing angle (H/V)
- 160° / 105°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 1,050 W
- Average power
- 420 W
- Max power per m²
- 712 W/m²
- Average power per m²
- 285 W/m²
- Thermal load
- 3,583 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, FCC, ETL, RoHS, REACH
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Stadium Series (Perimeter)
- Operating humidity
- 10 ~ 99%
- Pixel configuration
- 3 in 1 SMD
All variations in the LBBD series
All LG cabinets →Every LG LBBD series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LBB100DD310 mm1600×900 mm6,000 nits
- LBB160DA4D2this model16 mm1536×960 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 5,760 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
44,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
44,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
24,479cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
22,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
11,200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
11,200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LBB160DA4D2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LBB160DA4D2 draw?
- Each LG LBB160DA4D2 cabinet draws up to 1,050 W at full white and about 420 W with typical content — 712 W/m² max. A 10-cabinet wall therefore needs up to 10,500 W plus headroom.
- What is the resolution of the LG LBB160DA4D2?
- One cabinet is 96 × 60 pixels at a 16 mm pixel pitch (3,906 px/m²). About 40 cabinets side by side reach 4K width (≈ 61.44 m).
- How heavy is a LG LBB160DA4D2 wall?
- A single cabinet weighs 71 kg (48.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 1,065 kg before mounting structure.
- Is the LG LBB160DA4D2 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 6,000 nits of calibrated brightness.
Size a wall with the LBB160DA4D2
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
