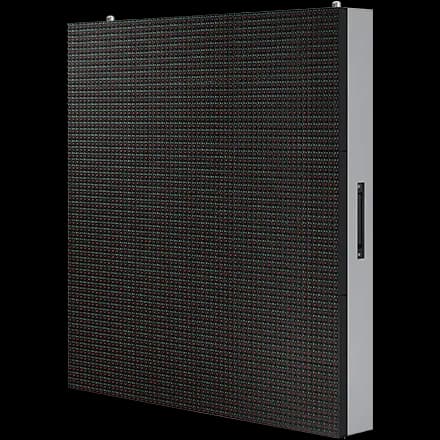

Samsung XA160T specs
The XAT series is engineered to deliver essential business content to audiences outside, regardless of surrounding environmental conditions. An all-encompassing outdoor signage solution will help businesses achieve their goals and broaden their exposure without incurring substantial costs.
Physical
- Pixel pitch
- 16 mm
- Cabinet size (W×H×D)
- 960 × 960 × 125 mm
- Weight
- 40 kg
- Weight per m²
- 43.4 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 60 × 60 px (1:1)
- Pixel density
- 3,906 px/m²
- Brightness (calibrated)
- 7,300 nits
- Refresh rate
- 1,920 Hz
- Contrast
- 3,000:1
- Viewing angle (H/V)
- 120° / 60°
- LED type
- DIP
- Processing depth
- 14 bit
Power & thermal
- Max power
- 553 W
- Average power
- 201 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 218 W/m²
- Thermal load
- 1,887 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -30 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- IEC 62368, EMC Class A
Manufacturer details
- Depth note
- depth not published for this model; taken from XA067T user manual (same 960x960 cabinet platform)
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Weight published
- 40Kg
- Color temperature
- 6,500K (+/- 500K)
- Contrast published
- 3,000:1
- Operating humidity
- 10 ~ 90%
- Modules per cabinet
- 9
- Pixel configuration
- DIP (DIP346)
- Brightness published
- 7,300 nit
All variations in the XAT series
All Samsung cabinets →Every Samsung XAT series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung XA067T6.67 mm960×960 mm6,000 nits
- Samsung XA100T10 mm960×960 mm6,000 nits
- XA160Tthis model16 mm960×960 mm7,300 nits
Controllers that drive this panel
All controllers →Each cabinet carries 3,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
72,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
72,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
39,166cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
36,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
18,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
18,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XA160T in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung XA160T draw?
- Each Samsung XA160T cabinet draws up to 553 W at full white and about 201 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 5,530 W plus headroom.
- What is the resolution of the Samsung XA160T?
- One cabinet is 60 × 60 pixels at a 16 mm pixel pitch (3,906 px/m²). About 64 cabinets side by side reach 4K width (≈ 61.44 m).
- How heavy is a Samsung XA160T wall?
- A single cabinet weighs 40 kg (43.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 600 kg before mounting structure.
- Is the Samsung XA160T suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 7,300 nits of calibrated brightness.
