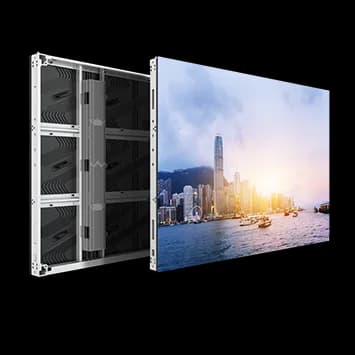

Absen A1621D specs
Up to 10000nit High Brightness Energy-saving LED Display · Pixel Pitch: P10 / P16 · Panel Material: Aluminum
Physical
- Pixel pitch
- 16 mm
- Cabinet size (W×H×D)
- 1,280 × 960 × 80 mm
- Weight
- 35 kg
- Weight per m²
- 28.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 80 × 60 px (4:3)
- Pixel density
- 3,906 px/m²
- Brightness (calibrated)
- 10,000 nits
- Refresh rate
- 26,000 Hz
- Contrast
- 24,000:1
- Viewing angle (H/V)
- 145° / 70°
- LED type
- DIP
- Processing depth
- 16 bit
Power & thermal
- Max power
- 406 W
- Average power
- 136 W
- Max power per m²
- 330 W/m²
- Average power per m²
- 111 W/m²
- Thermal load
- 1,385 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Aluminum
- Short description
- • Pixel Pitch: P4 / P6 / P8 / P10 / P16 • Panel Material: Aluminum • Low power consumption • Low heat dissipation • Longer lifespan • High Refresh Rate 3840+ Hz • High Gray Scale 16bit • Multi-Layered Water Resistant Design • Clear Images in Even the Strongest Sunlight
- Operating humidity
- 10 to 90%
- Pixel configuration
- DIP 346
All variations in the A series
All Absen cabinets →Every Absen A series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen A04214.44 mm1280×960 mm7,500 nits
- Absen A06216.66 mm1280×960 mm10,000 nits
- Absen A08218 mm1280×960 mm10,000 nits
- Absen A102110 mm1280×960 mm10,000 nits
- Absen A1021D10.66 mm1280×960 mm10,000 nits
- A1621Dthis model16 mm1280×960 mm10,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 4,800 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
54,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
54,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
29,375cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
27,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
13,500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
13,500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen A1621D in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen A1621D draw?
- Each Absen A1621D cabinet draws up to 406 W at full white and about 136 W with typical content — 330 W/m² max. A 10-cabinet wall therefore needs up to 4,060 W plus headroom.
- What is the resolution of the Absen A1621D?
- One cabinet is 80 × 60 pixels at a 16 mm pixel pitch (3,906 px/m²). About 48 cabinets side by side reach 4K width (≈ 61.44 m).
- How heavy is a Absen A1621D wall?
- A single cabinet weighs 35 kg (28.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 525 kg before mounting structure.
- Is the Absen A1621D suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 10,000 nits of calibrated brightness.
