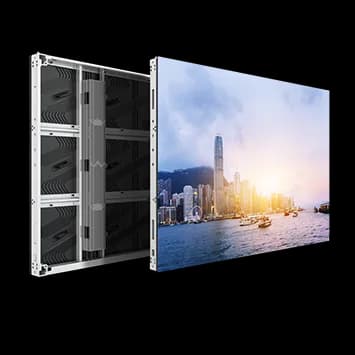

Absen A0621 specs
Up to 10000nit High Brightness Energy-saving LED Display · Pixel Pitch: P10 / P16 · Panel Material: Aluminum
Physical
- Pixel pitch
- 6.66 mm
- Cabinet size (W×H×D)
- 1,280 × 960 × 72 mm
- Weight
- 31 kg
- Weight per m²
- 25.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 192 × 144 px (4:3)
- Pixel density
- 22,500 px/m²
- Brightness (calibrated)
- 10,000 nits
- Refresh rate
- 6,000 Hz
- Contrast
- 9,500:1
- Viewing angle (H/V)
- 160° / 75°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 836 W
- Average power
- 279 W
- Max power per m²
- 680 W/m²
- Average power per m²
- 227 W/m²
- Thermal load
- 2,852 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Aluminum
- Short description
- • Pixel Pitch: P4 / P6 / P8 / P10 / P16 • Panel Material: Aluminum • Low power consumption • Low heat dissipation • Longer lifespan • High Refresh Rate 3840+ Hz • High Gray Scale 16bit • Multi-Layered Water Resistant Design • Clear Images in Even the Strongest Sunlight
- Operating humidity
- 10 to 90%
- Pixel configuration
- Single SMD
All variations in the A series
All Absen cabinets →Every Absen A series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen A04214.44 mm1280×960 mm7,500 nits
- A0621this model6.66 mm1280×960 mm10,000 nits
- Absen A08218 mm1280×960 mm10,000 nits
- Absen A102110 mm1280×960 mm10,000 nits
- Absen A1021D10.66 mm1280×960 mm10,000 nits
- Absen A1621D16 mm1280×960 mm10,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 27,648 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
9,200cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
9,200cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
5,099cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,600cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,300cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,300cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen A0621 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen A0621 draw?
- Each Absen A0621 cabinet draws up to 836 W at full white and about 279 W with typical content — 680 W/m² max. A 10-cabinet wall therefore needs up to 8,360 W plus headroom.
- What is the resolution of the Absen A0621?
- One cabinet is 192 × 144 pixels at a 6.66 mm pixel pitch (22,500 px/m²). About 20 cabinets side by side reach 4K width (≈ 25.60 m).
- How heavy is a Absen A0621 wall?
- A single cabinet weighs 31 kg (25.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 465 kg before mounting structure.
- Is the Absen A0621 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 10,000 nits of calibrated brightness.
