How much power does the Samsung XHB160-E LTYPE-42 draw?

Each Samsung XHB160-E LTYPE-42 cabinet draws up to 390 W at full white and about 130 W with typical content — 819 W/m² max. A 10-cabinet wall therefore needs up to 3,900 W plus headroom.

What is the resolution of the Samsung XHB160-E LTYPE-42?

One cabinet is 42 × 42 pixels at a 16.43 mm pixel pitch (3,705 px/m²). About 91 cabinets side by side reach 4K width (≈ 62.79 m).

How heavy is a Samsung XHB160-E LTYPE-42 wall?

A single cabinet weighs 30.4 kg (63.9 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 456 kg before mounting structure.

Is the Samsung XHB160-E LTYPE-42 suitable for outdoor use?

Yes — it is rated for outdoor use with IP66 front ingress protection and 7,000 nits of calibrated brightness.

16.43 mm pitchOutdoorDIP

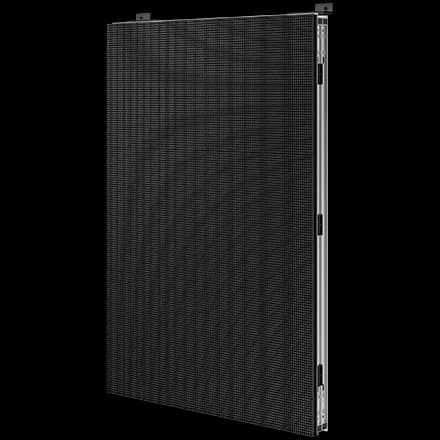

Samsung XHB160-E LTYPE-42 specs

Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether it's sunny or stormy.

Pitch

6.16 mm 8.21 mm 10.78 mm16.43 mm

Size

345×690 mm 345×1035 mm690×690 mm690×1035 mm

Nits

7,000 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 16.43 mm
Cabinet size (W×H×D): 690 × 690 × 690 mm
Weight: 30.4 kg
Weight per m²: 63.9 kg/m²
Cabinet type: Fixed install
Service access: Front & rear


Cabinet resolution: 42 × 42 px (1:1)
Pixel density: 3,705 px/m²
Brightness (calibrated): 7,000 nits
Refresh rate: 7,680 Hz
Contrast: 7,000:1
Viewing angle (H/V): 160° / 128°
LED type: DIP
Processing depth: 16 bit

Power & thermal

Max power: 390 W
Average power: 130 W
Max power per m²: 819 W/m²
Average power per m²: 273 W/m²
Thermal load: 1,331 BTU/h per cabinet

Environment

Rated for: Outdoor
IP rating (front): IP66
IP rating (rear): IP66
Operating temperature: -40 to 55 °C
LED lifetime: 100,000 h
Certifications: UL48, EMC Class A

Manufacturer details

Power supply: 100 to 240
Frame rates hz: 50 / 60
Cabinet variant: LTYPE-42
Weight published: 30.4 kg
Color temperature: 6,500K
Contrast published: 7,000:1
Operating humidity: 5 ~ 95%
Samsung model code: LH160XHBCRE
Modules per cabinet: 2x2 + 2x2
Pixel configuration: DIP R/G/B (XDC)
Brightness published: 7,000 nit

All variations in the XHB-E series

All Samsung cabinets →

Every Samsung XHB-E series cabinet and the exact pitch, size and brightness pairing it ships with.

Samsung XHB060-E Flat-126.16 mm345×690 mm7,000 nits
Samsung XHB060-E Flat-136.16 mm345×1035 mm7,000 nits
Samsung XHB060-E Flat-226.16 mm690×690 mm7,000 nits
Samsung XHB060-E Flat-236.16 mm690×1035 mm7,000 nits
Samsung XHB060-E LTYPE-426.16 mm690×690 mm7,000 nits
Samsung XHB060-E LTYPE-436.16 mm690×1035 mm7,000 nits
Samsung XHB080-E Flat-128.21 mm345×690 mm7,000 nits
Samsung XHB080-E Flat-138.21 mm345×1035 mm7,000 nits
Samsung XHB080-E Flat-228.21 mm690×690 mm7,000 nits
Samsung XHB080-E Flat-238.21 mm690×1035 mm7,000 nits
Samsung XHB080-E LTYPE-428.21 mm690×690 mm7,000 nits
Samsung XHB080-E LTYPE-438.21 mm690×1035 mm7,000 nits
Samsung XHB100-E Flat-1210.78 mm345×690 mm7,000 nits
Samsung XHB100-E Flat-1310.78 mm345×1035 mm7,000 nits
Samsung XHB100-E Flat-2210.78 mm690×690 mm7,000 nits
Samsung XHB100-E Flat-2310.78 mm690×1035 mm7,000 nits
Samsung XHB100-E LTYPE-4210.78 mm690×690 mm7,000 nits
Samsung XHB100-E LTYPE-4310.78 mm690×1035 mm7,000 nits
Samsung XHB160-E Flat-1216.43 mm345×690 mm7,000 nits
Samsung XHB160-E Flat-1316.43 mm345×1035 mm7,000 nits
Samsung XHB160-E Flat-2216.43 mm690×690 mm7,000 nits
Samsung XHB160-E Flat-2316.43 mm690×1035 mm7,000 nits
XHB160-E LTYPE-42this model16.43 mm690×690 mm7,000 nits
Samsung XHB160-E LTYPE-4316.43 mm690×1035 mm7,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 1,764 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
147,200cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
147,200cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
79,931cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
73,600cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
36,800cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
36,800cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB160-E LTYPE-42 in the calculator to lay out the real chains and validate them.
