How much power does the Samsung XHB080-E Flat-13 draw?

Each Samsung XHB080-E Flat-13 cabinet draws up to 300 W at full white and about 100 W with typical content — 841 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.

What is the resolution of the Samsung XHB080-E Flat-13?

One cabinet is 42 × 126 pixels at a 8.21 mm pixel pitch (14,832 px/m²). About 91 cabinets side by side reach 4K width (≈ 31.36 m).

How heavy is a Samsung XHB080-E Flat-13 wall?

A single cabinet weighs 15.9 kg (44.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 239 kg before mounting structure.

Is the Samsung XHB080-E Flat-13 suitable for outdoor use?

Yes — it is rated for outdoor use with IP66 front ingress protection and 7,000 nits of calibrated brightness.

8.21 mm pitchOutdoorSMD

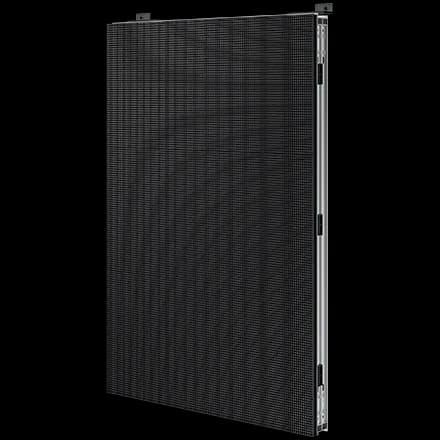

Samsung XHB080-E Flat-13 specs

Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether it's sunny or stormy.

Pitch

6.16 mm8.21 mm10.78 mm 16.43 mm

Size

345×690 mm345×1035 mm690×690 mm 690×1035 mm

Nits

7,000 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 8.21 mm
Cabinet size (W×H×D): 345 × 1,035 × 92 mm
Weight: 15.9 kg
Weight per m²: 44.6 kg/m²
Cabinet type: Fixed install
Service access: Front & rear


Cabinet resolution: 42 × 126 px (1:3)
Pixel density: 14,832 px/m²
Brightness (calibrated): 7,000 nits
Refresh rate: 7,680 Hz
Contrast: 7,000:1
Viewing angle (H/V): 160° / 128°
LED type: SMD
Processing depth: 16 bit

Power & thermal

Max power: 300 W
Average power: 100 W
Max power per m²: 841 W/m²
Average power per m²: 280 W/m²
Thermal load: 1,024 BTU/h per cabinet

Environment

Rated for: Outdoor
IP rating (front): IP66
IP rating (rear): IP66
Operating temperature: -40 to 55 °C
LED lifetime: 100,000 h
Certifications: UL48, EMC Class A

Manufacturer details

Power supply: 100 to 240
Frame rates hz: 50 / 60
Cabinet variant: Flat-13
Weight published: 15.9 Kg
Color temperature: 6,500K
Contrast published: 7,000:1
Operating humidity: 5 ~ 95%
Samsung model code: LH080XHBCIE
Modules per cabinet: 1x3
Pixel configuration: SMD 3-in-1 2727 (XDC-Cu)
Brightness published: 7,000 nit

All variations in the XHB-E series

All Samsung cabinets →

Every Samsung XHB-E series cabinet and the exact pitch, size and brightness pairing it ships with.

Samsung XHB060-E Flat-126.16 mm345×690 mm7,000 nits
Samsung XHB060-E Flat-136.16 mm345×1035 mm7,000 nits
Samsung XHB060-E Flat-226.16 mm690×690 mm7,000 nits
Samsung XHB060-E Flat-236.16 mm690×1035 mm7,000 nits
Samsung XHB060-E LTYPE-426.16 mm690×690 mm7,000 nits
Samsung XHB060-E LTYPE-436.16 mm690×1035 mm7,000 nits
Samsung XHB080-E Flat-128.21 mm345×690 mm7,000 nits
XHB080-E Flat-13this model8.21 mm345×1035 mm7,000 nits
Samsung XHB080-E Flat-228.21 mm690×690 mm7,000 nits
Samsung XHB080-E Flat-238.21 mm690×1035 mm7,000 nits
Samsung XHB080-E LTYPE-428.21 mm690×690 mm7,000 nits
Samsung XHB080-E LTYPE-438.21 mm690×1035 mm7,000 nits
Samsung XHB100-E Flat-1210.78 mm345×690 mm7,000 nits
Samsung XHB100-E Flat-1310.78 mm345×1035 mm7,000 nits
Samsung XHB100-E Flat-2210.78 mm690×690 mm7,000 nits
Samsung XHB100-E Flat-2310.78 mm690×1035 mm7,000 nits
Samsung XHB100-E LTYPE-4210.78 mm690×690 mm7,000 nits
Samsung XHB100-E LTYPE-4310.78 mm690×1035 mm7,000 nits
Samsung XHB160-E Flat-1216.43 mm345×690 mm7,000 nits
Samsung XHB160-E Flat-1316.43 mm345×1035 mm7,000 nits
Samsung XHB160-E Flat-2216.43 mm690×690 mm7,000 nits
Samsung XHB160-E Flat-2316.43 mm690×1035 mm7,000 nits
Samsung XHB160-E LTYPE-4216.43 mm690×690 mm7,000 nits
Samsung XHB160-E LTYPE-4316.43 mm690×1035 mm7,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 5,292 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
48,800cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
48,800cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
26,643cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
24,400cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
12,200cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
12,200cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB080-E Flat-13 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Samsung XHB080-E Flat-13 draw?: Each Samsung XHB080-E Flat-13 cabinet draws up to 300 W at full white and about 100 W with typical content — 841 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
What is the resolution of the Samsung XHB080-E Flat-13?: One cabinet is 42 × 126 pixels at a 8.21 mm pixel pitch (14,832 px/m²). About 91 cabinets side by side reach 4K width (≈ 31.36 m).
How heavy is a Samsung XHB080-E Flat-13 wall?: A single cabinet weighs 15.9 kg (44.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 239 kg before mounting structure.
Is the Samsung XHB080-E Flat-13 suitable for outdoor use?: Yes — it is rated for outdoor use with IP66 front ingress protection and 7,000 nits of calibrated brightness.

Size a wall with the XHB080-E Flat-13

Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.

Open in calculator Compare with competitors
