INFiLED ORMV7.8 Max mini specs

The outdoor LED display platform engineered for 24/7 commercial operation in the harshest environments — built to run, built to last, built to be seen.

Pitch
2.97 mm3.91 mm5.95 mm7.81 mm12.5 mm
Size
1000×1000 mm500×500 mm500×1000 mm
Nits
1,000 nits1,200 nits4,000 nits5,000 nits7,000 nits8,000 nits
Open in calculatorCompareControllersRunning costDatasheet

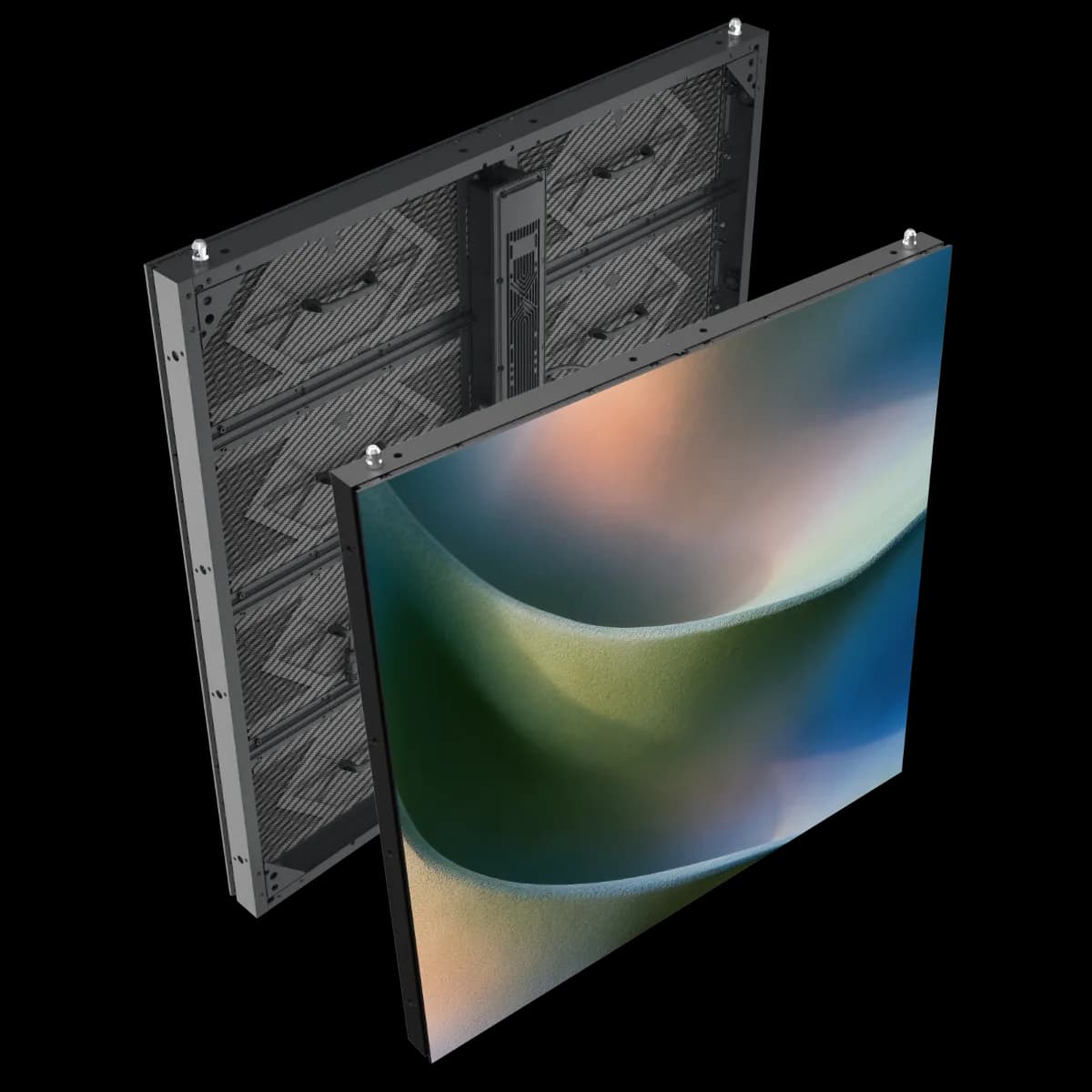

INFiLED ORMV7.8 Max mini LED cabinet

Physical

Pixel pitch
7.81 mm
Cabinet size (W×H×D)
500 × 500 × 93 mm
Weight
8.1 kg
Weight per m²
32.4 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
64 × 64 px (1:1)
Pixel density
16,384 px/m²
Brightness (calibrated)
8,000 nits
Refresh rate
3,840 Hz
Contrast
12,000:1
Viewing angle (H/V)
160° / 106°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
160 W
Average power
53 W
Max power per m²
640 W/m²
Average power per m²
212 W/m²
Thermal load
546 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MBI5251B
Scan rate
1/4
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/mvedge_brochure_2026.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Fixed Installation
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
7,81mm
Power published
160 / 53 W/panel (max / avg)
Cabinet material
Aluminum Profile
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
16.384pixels/㎡
Weight published
8,1kg (17,86lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
64x32pixels
Contrast published
12000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
8000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)

All variations in the MV series

All INFiLED cabinets →

Every INFiLED MV series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 4,096 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORMV7.8 Max mini in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORMV7.8 Max mini draw?
Each INFiLED ORMV7.8 Max mini cabinet draws up to 160 W at full white and about 53 W with typical content — 640 W/m² max. A 10-cabinet wall therefore needs up to 1,600 W plus headroom.
What is the resolution of the INFiLED ORMV7.8 Max mini?
One cabinet is 64 × 64 pixels at a 7.81 mm pixel pitch (16,384 px/m²). About 60 cabinets side by side reach 4K width (≈ 30.00 m).
How heavy is a INFiLED ORMV7.8 Max mini wall?
A single cabinet weighs 8.1 kg (32.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 122 kg before mounting structure.
Is the INFiLED ORMV7.8 Max mini suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 8,000 nits of calibrated brightness.
