INFiLED ORMV12.5 specs

The outdoor LED display platform engineered for 24/7 commercial operation in the harshest environments — built to run, built to last, built to be seen.

Pitch
2.97 mm3.91 mm5.95 mm7.81 mm12.5 mm
Size
1000×1000 mm500×500 mm500×1000 mm
Nits
1,000 nits1,200 nits4,000 nits5,000 nits7,000 nits8,000 nits
Open in calculatorCompareControllersRunning costDatasheet

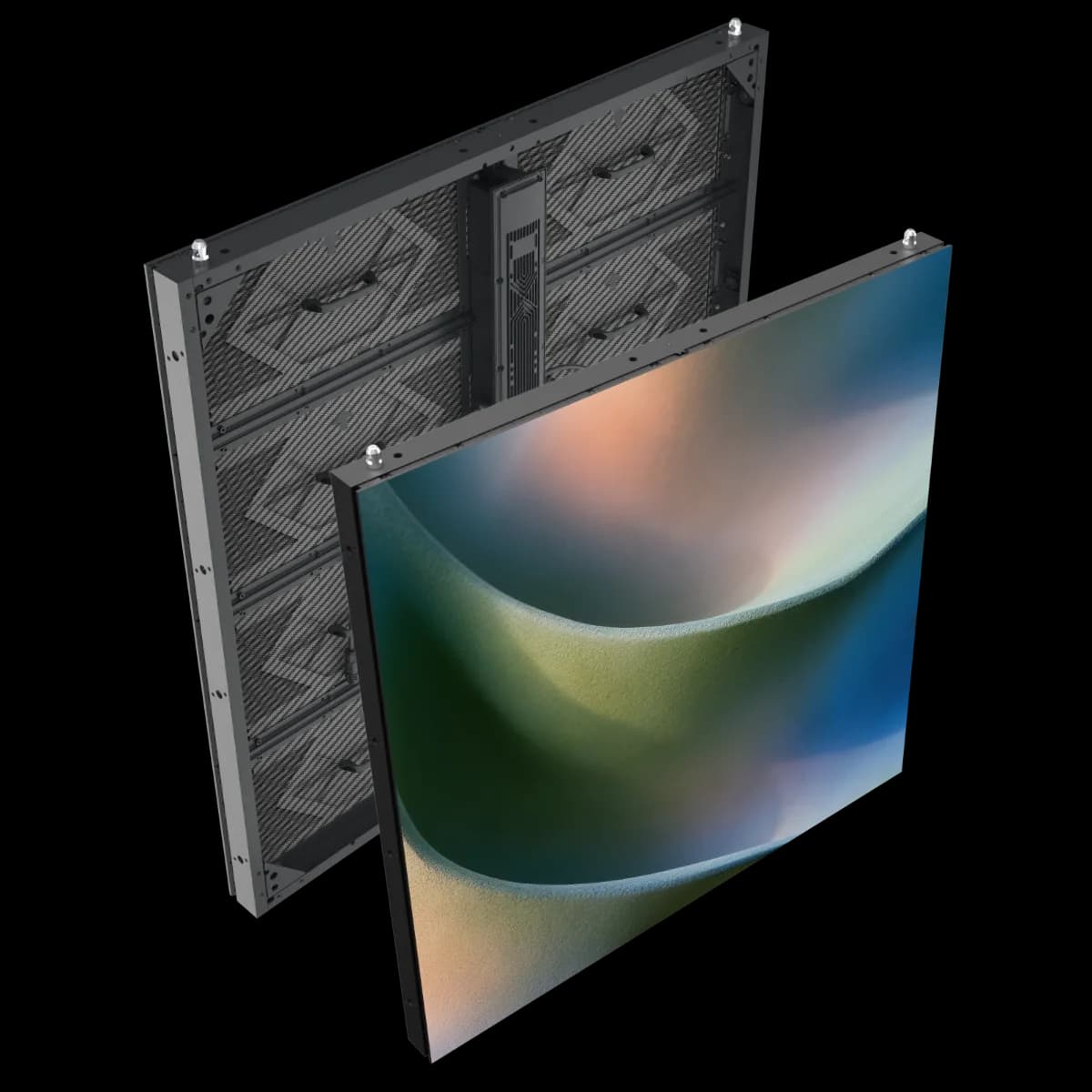

INFiLED ORMV12.5 LED cabinet

Physical

Pixel pitch
12.5 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 92 mm
Weight
19.6 kg
Weight per m²
19.6 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
80 × 80 px (1:1)
Pixel density
6,400 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Contrast
20,000:1
Viewing angle (H/V)
160° / 113°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
660 W
Average power
220 W
Max power per m²
660 W/m²
Average power per m²
220 W/m²
Thermal load
2,252 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
ICND2153S
Scan rate
1/2
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/mvedge_brochure_2026.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
0%
Site category
Fixed Installation
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:520-535nm/B:465-481nm
Receiving card
Novastar
Pitch published
12,5mm
Power published
660 / 220 W/panel (max / avg)
Cabinet material
Aluminum Profile
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
6.400pixels/㎡
Weight published
19,6kg (43,21lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
40x20pixels
Contrast published
20000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)

All variations in the MV series

All INFiLED cabinets →

Every INFiLED MV series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 6,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORMV12.5 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORMV12.5 draw?
Each INFiLED ORMV12.5 cabinet draws up to 660 W at full white and about 220 W with typical content — 660 W/m² max. A 10-cabinet wall therefore needs up to 6,600 W plus headroom.
What is the resolution of the INFiLED ORMV12.5?
One cabinet is 80 × 80 pixels at a 12.5 mm pixel pitch (6,400 px/m²). About 48 cabinets side by side reach 4K width (≈ 48.00 m).
How heavy is a INFiLED ORMV12.5 wall?
A single cabinet weighs 19.6 kg (19.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 294 kg before mounting structure.
Is the INFiLED ORMV12.5 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
