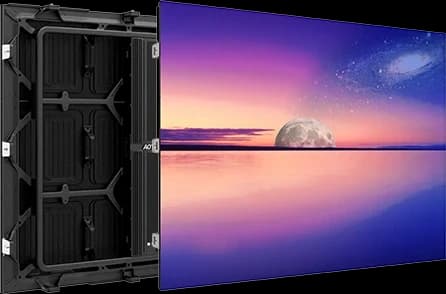

AOTO E8 specs
The E series targets both indoor and outdoor applications. The pixel pitch varies from 2.5mm to 10mm providing an optimal viewing distance from 3 to 20 meters, which satisfies most of the applications. E series is characterized with the following features: high IP standards, energy-saving, high image quality, power/data backup, front & rear installation, large format, and lightweight structure.
Physical
- Pixel pitch
- 8 mm
- Cabinet size (W×H×D)
- 960 × 720 × 77 mm
- Weight
- 19 kg
- Weight per m²
- 27.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 120 × 90 px (4:3)
- Pixel density
- 15,625 px/m²
- Brightness (calibrated)
- 8,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 110°
- LED type
- SMD
- Processing depth
- 20 bit
Power & thermal
- Max power
- 500 W
- Average power
- 167 W
- Max power per m²
- 723 W/m²
- Average power per m²
- 242 W/m²
- Thermal load
- 1,706 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -20 to 50 °C
Manufacturer details
- Power supply
- AC100-240V 50/60Hz
- Site category
- Fixed Installation
- Pitch published
- 8 mm
- Cabinet material
- die-cast aluminium, black
- Weight published
- 19±0.5 kg
- Module dimensions
- 480×240 mm
- Module resolution
- 60×30
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD 3-in-1, 1R1G1B
All variations in the E series
All AOTO cabinets →Every AOTO E series cabinet and the exact pitch, size and brightness pairing it ships with.
Controllers that drive this panel
All controllers →Each cabinet carries 10,800 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
24,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
24,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
13,055cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
12,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO E8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO E8 draw?
- Each AOTO E8 cabinet draws up to 500 W at full white and about 167 W with typical content — 723 W/m² max. A 10-cabinet wall therefore needs up to 5,000 W plus headroom.
- What is the resolution of the AOTO E8?
- One cabinet is 120 × 90 pixels at a 8 mm pixel pitch (15,625 px/m²). About 32 cabinets side by side reach 4K width (≈ 30.72 m).
- How heavy is a AOTO E8 wall?
- A single cabinet weighs 19 kg (27.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 285 kg before mounting structure.
- Is the AOTO E8 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 8,000 nits of calibrated brightness.
