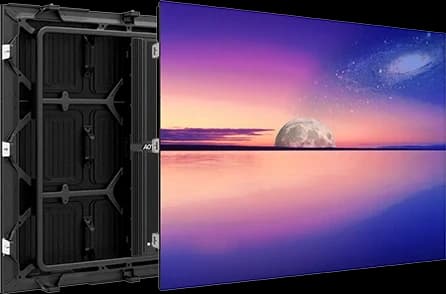

AOTO E4.8 specs
The E series targets both indoor and outdoor applications. The pixel pitch varies from 2.5mm to 10mm providing an optimal viewing distance from 3 to 20 meters, which satisfies most of the applications. E series is characterized with the following features: high IP standards, energy-saving, high image quality, power/data backup, front & rear installation, large format, and lightweight structure.
Physical
- Pixel pitch
- 4.8 mm
- Cabinet size (W×H×D)
- 960 × 720 × 77 mm
- Weight
- 19 kg
- Weight per m²
- 27.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 200 × 150 px (4:3)
- Pixel density
- 43,403 px/m²
- Brightness (calibrated)
- 5,500 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 150° / 130°
- LED type
- SMD
- Processing depth
- 20 bit
Power & thermal
- Max power
- 480 W
- Average power
- 137 W
- Max power per m²
- 694 W/m²
- Average power per m²
- 198 W/m²
- Thermal load
- 1,638 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -20 to 50 °C
Manufacturer details
- Power supply
- AC100-240V 50/60Hz
- Site category
- Fixed Installation
- Pitch published
- 4.8 mm
- Cabinet material
- die-cast aluminium, black
- Weight published
- 19±0.5 kg
- Module dimensions
- 480×240 mm
- Module resolution
- 100×50
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD 3-in-1, 1R1G1B
All variations in the E series
All AOTO cabinets →Every AOTO E series cabinet and the exact pitch, size and brightness pairing it ships with.
Controllers that drive this panel
All controllers →Each cabinet carries 30,000 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
8,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
8,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,700cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
4,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO E4.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO E4.8 draw?
- Each AOTO E4.8 cabinet draws up to 480 W at full white and about 137 W with typical content — 694 W/m² max. A 10-cabinet wall therefore needs up to 4,800 W plus headroom.
- What is the resolution of the AOTO E4.8?
- One cabinet is 200 × 150 pixels at a 4.8 mm pixel pitch (43,403 px/m²). About 19 cabinets side by side reach 4K width (≈ 18.24 m).
- How heavy is a AOTO E4.8 wall?
- A single cabinet weighs 19 kg (27.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 285 kg before mounting structure.
- Is the AOTO E4.8 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 5,500 nits of calibrated brightness.
