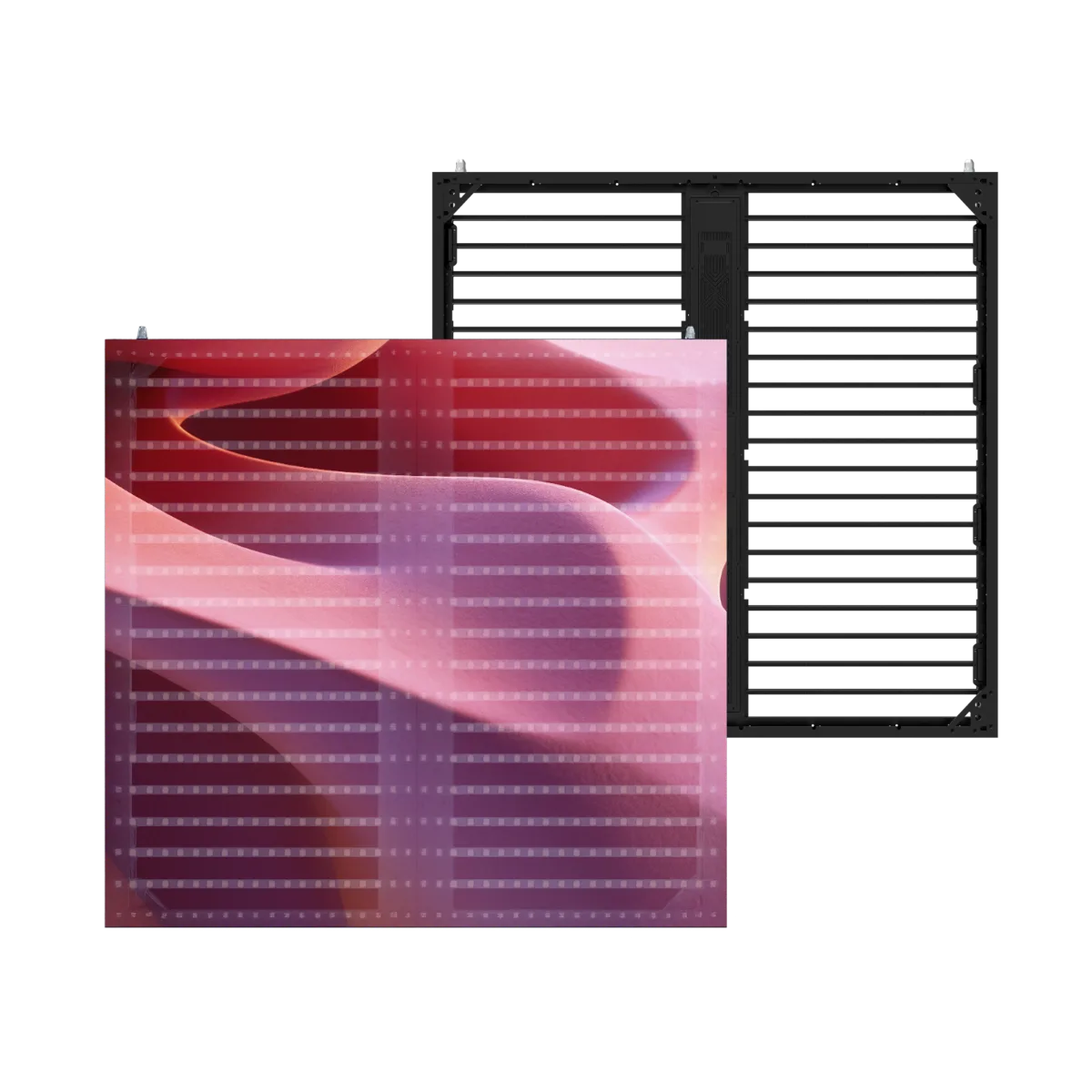

INFiLED ORMV16.67 Max LED cabinet

Physical

Pixel pitch
16.67 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 85 mm
Weight
12.1 kg
Weight per m²
12.1 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
60 × 60 px (1:1)
Pixel density
3,600 px/m²
Brightness (calibrated)
10,000 nits
Refresh rate
3,840 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 120°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
660 W
Average power
220 W
Max power per m²
660 W/m²
Average power per m²
220 W/m²
Thermal load
2,252 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MY9221
Scan rate
Static
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/mv-mesh_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
70%
Site category
Fixed Installation
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:618-628nm/G:518-530nm/B:464-474nm
Receiving card
Novastar
Pitch published
16,67mm
Power published
660 / 220 W/panel (max / avg)
Cabinet material
Aluminum Alloy
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
3.600pixels/㎡
Weight published
12,1kg (26,68lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
30x15pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
10000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)
