15 mm pitchOutdoorSMD

INFiLED ORMV1531 Pro specs

A transparent outdoor LED display that lets air, light, and architecture show through — while your content commands the facade at 8000 nits.

Pitch
15 mm16.67 mm25 mm
Size
1000×1000 mm
Nits
8,000 nits5,000 nits10,000 nits7,000 nits
Open in calculatorCompareControllersRunning costDatasheet

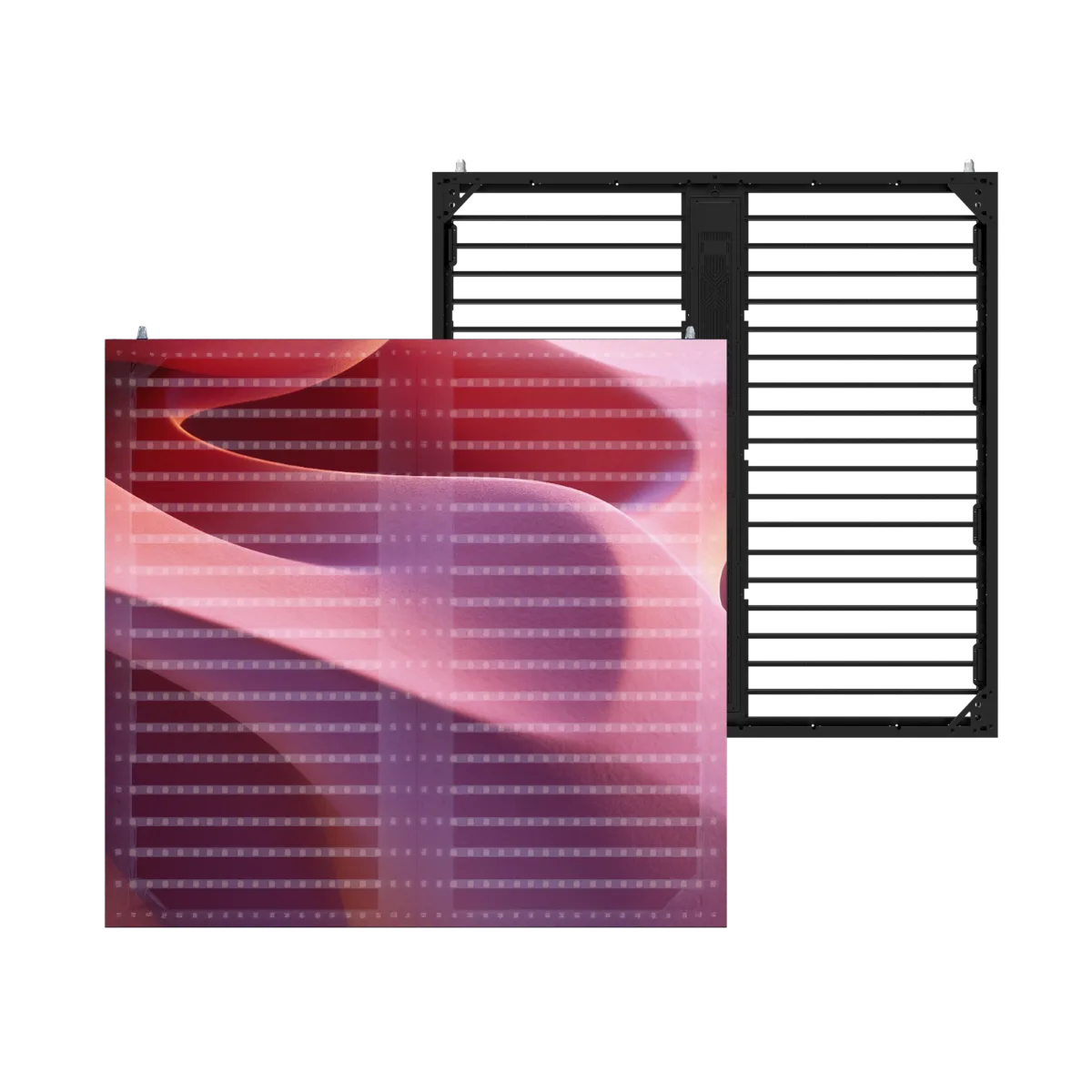

INFiLED ORMV1531 Pro LED cabinet

Physical

Pixel pitch
15 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 85 mm
Weight
12.1 kg
Weight per m²
12.1 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
64 × 32 px (2:1)
Pixel density
2,048 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 127°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
600 W
Average power
200 W
Max power per m²
600 W/m²
Average power per m²
200 W/m²
Thermal load
2,047 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
MY9221
Scan rate
Static
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/mv-mesh_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Transparency
80%
Site category
Fixed Installation
Display colors
4.4T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
15/31mm
Power published
600 / 200 W/panel (max / avg)
Cabinet material
Aluminum Alloy
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
2.048pixels/㎡
Weight published
12,1kg (26,68lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
32x8pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)

All variations in the MV Mesh series

All INFiLED cabinets →

Every INFiLED MV Mesh series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 2,048 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORMV1531 Pro in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORMV1531 Pro draw?
Each INFiLED ORMV1531 Pro cabinet draws up to 600 W at full white and about 200 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 6,000 W plus headroom.
What is the resolution of the INFiLED ORMV1531 Pro?
One cabinet is 64 × 32 pixels at a 15 mm pixel pitch (2,048 px/m²). About 60 cabinets side by side reach 4K width (≈ 60.00 m).
How heavy is a INFiLED ORMV1531 Pro wall?
A single cabinet weighs 12.1 kg (12.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 182 kg before mounting structure.
Is the INFiLED ORMV1531 Pro suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
