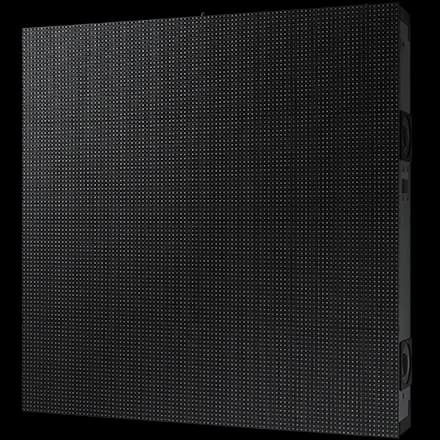

Samsung XPR160-S specs
Samsung's XPR series is ideal for a wide range of outdoor applications, from sports stadiums to dynamic outdoor advertising environments. This display features clear visibility with even more reliability.
Physical
- Pixel pitch
- 16.666 mm
- Cabinet size (W×H×D)
- 1,000 × 1,000 × 273 mm
- Weight
- 43.5 kg
- Weight per m²
- 43.5 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 60 × 60 px (1:1)
- Pixel density
- 3,600 px/m²
- Brightness (calibrated)
- 8,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 8,000:1
- Viewing angle (H/V)
- 160° / 90°
- LED type
- DIP
- Processing depth
- 16 bit
Power & thermal
- Max power
- 600 W
- Average power
- 200 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 2,047 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -40 to 55 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, UL, ULC
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 60
- Weight published
- 43.5Kg
- Color temperature
- 6,500K
- Contrast published
- 8,000:1
- Modules per cabinet
- 16
- Pixel configuration
- DIP (discrete lamp)
- Brightness published
- 8,000 nit
All variations in the XPR-S series
All Samsung cabinets →Every Samsung XPR-S series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung XPR060-S6.25 mm1000×1000 mm8,000 nits
- Samsung XPR080-S8.333 mm1000×1000 mm8,000 nits
- Samsung XPR100-S10.416 mm1000×1000 mm8,000 nits
- XPR160-Sthis model16.666 mm1000×1000 mm8,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 3,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
72,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
72,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
39,166cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
36,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
18,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
18,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XPR160-S in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung XPR160-S draw?
- Each Samsung XPR160-S cabinet draws up to 600 W at full white and about 200 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 6,000 W plus headroom.
- What is the resolution of the Samsung XPR160-S?
- One cabinet is 60 × 60 pixels at a 16.666 mm pixel pitch (3,600 px/m²). About 64 cabinets side by side reach 4K width (≈ 64.00 m).
- How heavy is a Samsung XPR160-S wall?
- A single cabinet weighs 43.5 kg (43.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 653 kg before mounting structure.
- Is the Samsung XPR160-S suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 8,000 nits of calibrated brightness.
