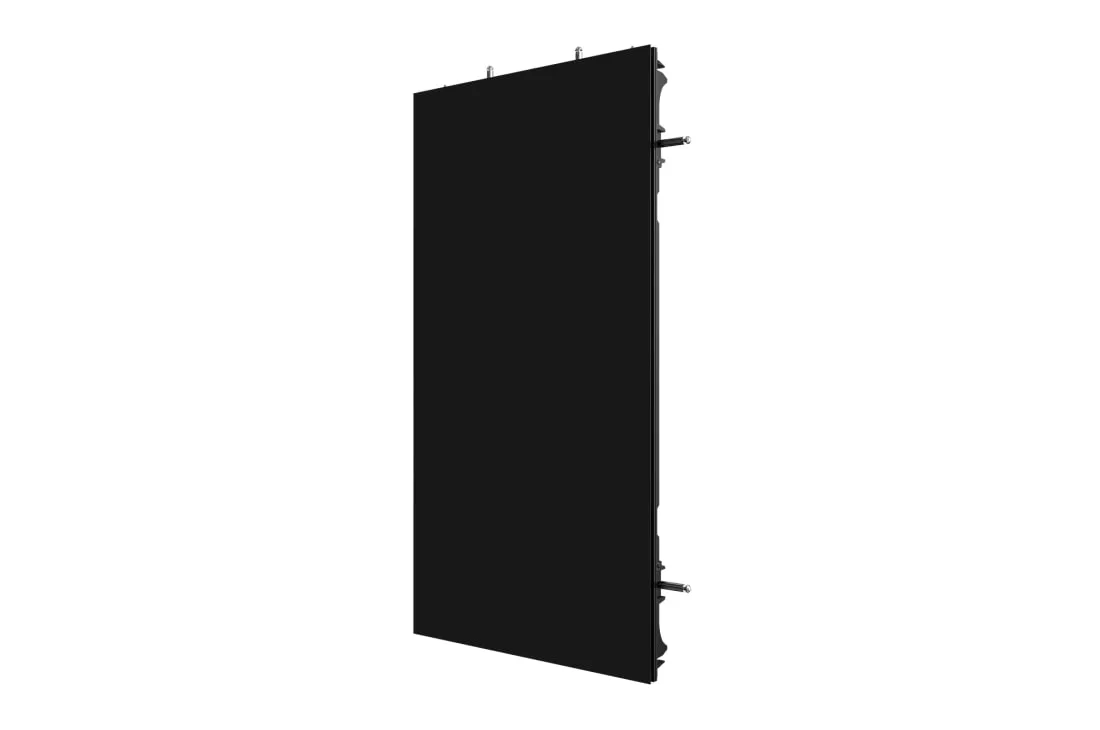

LG LSBC039 specs
With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
Physical
- Pixel pitch
- 3.906 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 68 mm
- Weight
- 12 kg
- Weight per m²
- 24 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 300 W
- Average power
- 100 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 200 W/m²
- Thermal load
- 1,024 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP5X
- IP rating (rear)
- IP5X
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Compact Series
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- 3 in 1 SMD
All variations in the LSBC series
All LG cabinets →Every LG LSBC series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG LSBC0191.95 mm500×1000 mm800 nits
- LG LSBC0262.604 mm500×1000 mm1,000 nits
- LG LSBC0292.976 mm500×1000 mm1,000 nits
- LSBC039this model3.906 mm500×1000 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSBC039 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG LSBC039 draw?
- Each LG LSBC039 cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
- What is the resolution of the LG LSBC039?
- One cabinet is 128 × 256 pixels at a 3.906 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a LG LSBC039 wall?
- A single cabinet weighs 12 kg (24 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 180 kg before mounting structure.
- Is the LG LSBC039 suitable for outdoor use?
- No — the LG LSBC039 is an indoor cabinet (IP5X front). Its 1,000 nits suit controlled lighting, not direct sun.
