LG LSAP012 specs

Compatible with the Megapixel VR HELIOS® Controller this Micro LED delivers stunning colors & true black. It offers IP50/IP20 rating, & is LG software compatible.

Pitch
0.78 mm0.94 mm1.25 mm
Size
600×338 mm
Nits
600 nits800 nits1,000 nits
Open in calculatorCompareControllersRunning cost

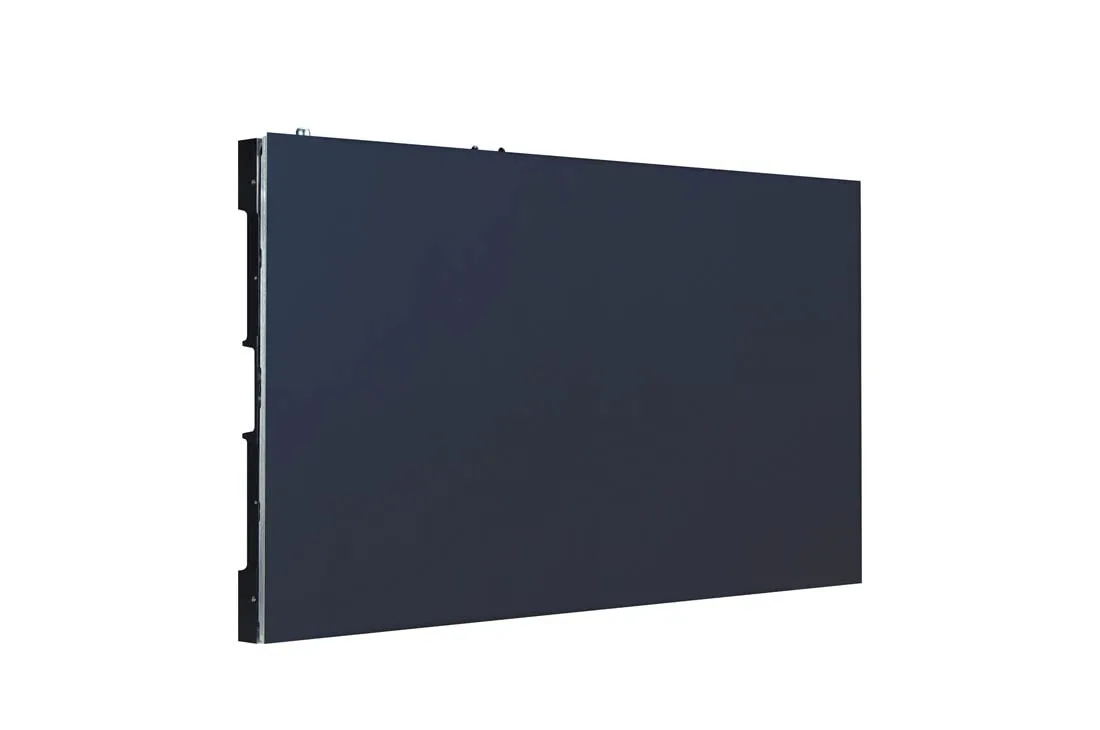

LG LSAP012 LED cabinet

Physical

Pixel pitch
1.25 mm
Cabinet size (W×H×D)
600 × 338 × 45 mm
Weight
7.8 kg
Weight per m²
38.5 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
480 × 270 px (16:9)
Pixel density
640,000 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
15,360 Hz
Contrast
24,000:1
Viewing angle (H/V)
150° / 150°
LED type
COB
Processing depth
22 bit

Power & thermal

Max power
90 W
Average power
45 W
Max power per m²
444 W/m²
Average power per m²
222 W/m²
Thermal load
307 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP50
IP rating (rear)
IP20
Operating temperature
0 to 40 °C
LED lifetime
100,000 h

Manufacturer details

Power supply
100 to 240
Frame rates hz
23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Short description
Micro LED Display with Megapixel HELIOS LED Processing Platform
Operating humidity
10 ~ 80%
Pixel configuration
Micro LED

All variations in the LSAP series

All LG cabinets →

Every LG LSAP series cabinet and the exact pitch, size and brightness pairing it ships with.

  • LG LSAP0070.78 mm600×338 mm600 nits
  • LG LSAP0090.94 mm600×338 mm800 nits
  • LSAP012this model1.25 mm600×338 mm1,000 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LSAP012 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LSAP012 draw?
Each LG LSAP012 cabinet draws up to 90 W at full white and about 45 W with typical content — 444 W/m² max. A 10-cabinet wall therefore needs up to 900 W plus headroom.
What is the resolution of the LG LSAP012?
One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
How heavy is a LG LSAP012 wall?
A single cabinet weighs 7.8 kg (38.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
Is the LG LSAP012 suitable for outdoor use?
No — the LG LSAP012 is an indoor cabinet (IP50 front). Its 1,000 nits suit controlled lighting, not direct sun.
