INFiLED IRWT1.25-SSC specs

The micro-pitch LED display engineered for control rooms, broadcast studios, and premium interiors where pixel density, surface protection, and permanence define the standard.

Pitch
0.93 mm1.25 mm1.56 mm
Size
600×338 mm
Nits
1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

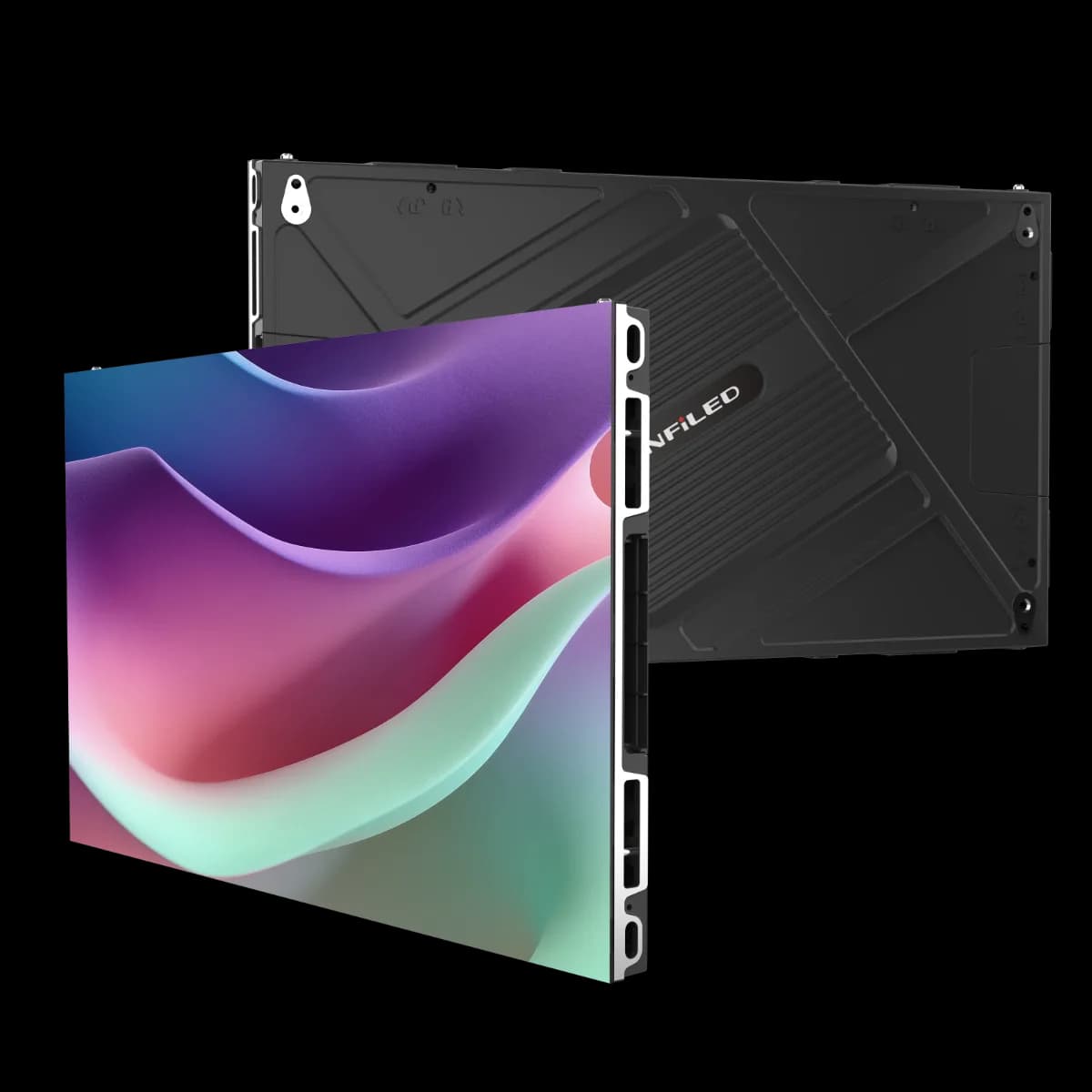

INFiLED IRWT1.25-SSC LED cabinet

Physical

Pixel pitch
1.25 mm
Cabinet size (W×H×D)
600 × 338 × 30 mm
Weight
4.5 kg
Weight per m²
22.2 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
480 × 270 px (16:9)
Pixel density
640,000 px/m²
Brightness (calibrated)
1,000 nits
Refresh rate
1,920 Hz
Contrast
100,000:1
Viewing angle (H/V)
160° / 160°
LED type
COB
Processing depth
13 bit

Power & thermal

Max power
60 W
Average power
20 W
Max power per m²
296 W/m²
Average power per m²
99 W/m²
Thermal load
205 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP30
IP rating (rear)
IP30
Operating temperature
-10 to 45 °C
LED lifetime
100,000 h
Certifications
CE, FCC, RoHS, ETL

Manufacturer details

Driver ic
PWM driver
Scan rate
1/45
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/aaff_brochure_wt_2026cob.pdf
Control mode
Synchronous display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, MINI DP, VGA, SDI, HD, SDI
Transparency
0%
Site category
Fixed Installation
Display colors
0.55 T
Frame rates hz
50/60 Hz
Led wavelength
R: 620-625nm, G:533-535nm, B: 470-472nm
Receiving card
NovaStar
Pitch published
1.25mm
Power published
60 / 20 W/panel (max / avg)
Cabinet material
Die-casting Aluminum
Control distance
Ethernet cable≤100m or Fiber Optic≤15km
Physical density
640,000 pixels/m²
Weight published
4.5kg (9.92lb)
Color temperature
6500K(3000K~9000K adjustable)
Module dimensions
150x168.75mm
Module resolution
120x135pixels
Contrast published
100,000:1
Lifetime published
≥100000h
Operating humidity
10-90%RH Non-condensing
Grayscale published
13 bit
Pixel configuration
Flip chip COB
Brightness published
1000nits
Brightness adjustment
0～100% 256 levels
Service access published
Front

All variations in the WT series

All INFiLED cabinets →

Every INFiLED WT series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED IRWT1.25-SSC in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED IRWT1.25-SSC draw?
Each INFiLED IRWT1.25-SSC cabinet draws up to 60 W at full white and about 20 W with typical content — 296 W/m² max. A 10-cabinet wall therefore needs up to 600 W plus headroom.
What is the resolution of the INFiLED IRWT1.25-SSC?
One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
How heavy is a INFiLED IRWT1.25-SSC wall?
A single cabinet weighs 4.5 kg (22.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 68 kg before mounting structure.
Is the INFiLED IRWT1.25-SSC suitable for outdoor use?
No — the INFiLED IRWT1.25-SSC is an indoor cabinet (IP30 front). Its 1,000 nits suit controlled lighting, not direct sun.
