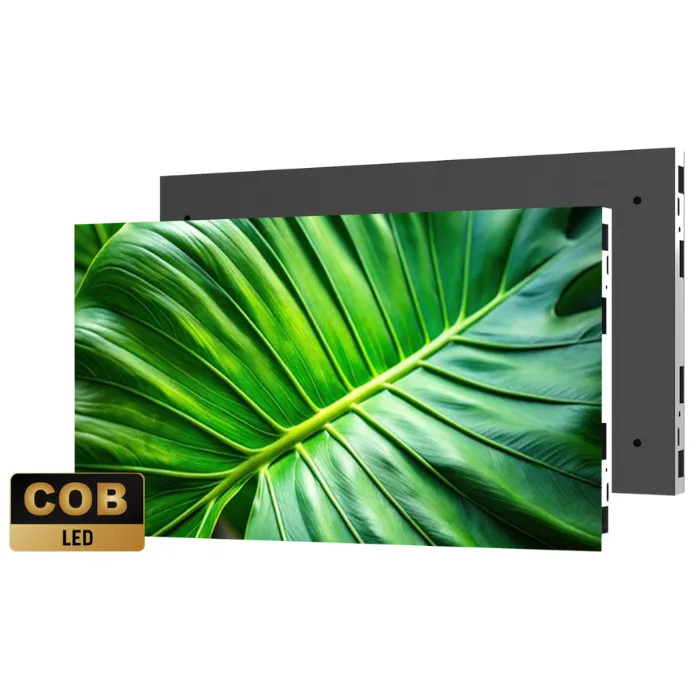

Planar Komodo 1.2 specs
The Planar® Komodo Series is a premium line of fine-pitch LED video walls built with Chip-on-Board (COB) MicroLED technology that delivers durability, energy efficiency, superior color uniformity, and wide viewing angles. It is optimized for industry-standard resolutions and supports 16:9 and 21:9 configurations. A high-bandwidth, future-ready system architecture ensures uncompromising reliability, long-term compatibility, and exceptional image quality for the most visually discerning indoor applications.
Physical
- Pixel pitch
- 1.25 mm
- Cabinet size (W×H×D)
- 600 × 338 × 70 mm
- Weight
- 4.8 kg
- Weight per m²
- 23.7 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 640,000 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Viewing angle (H/V)
- 170° / 150°
- LED type
- COB
Power & thermal
- Max power
- 85 W
- Average power
- 28 W
- Max power per m²
- 420 W/m²
- Average power per m²
- 138 W/m²
- Thermal load
- 290 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Usage
- 24x7
- Marketed by
- Leyard Europe (EMEA)
- Power published
- 85 W/Cabinet, 450 W/m2
- Color temperature
- 3000-10000K
- Refresh published
- 3840-7680Hz
- Module composition
- 2x2
- Pixel configuration
- COB (Chip-on-Board) MicroLED
All variations in the Komodo series
All Planar cabinets →Every Planar Komodo series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar Komodo 0.70.75 mm480×270 mm1,000 nits
- Planar Komodo 0.90.9375 mm600×338 mm1,000 nits
- Komodo 1.2this model1.25 mm600×338 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar Komodo 1.2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar Komodo 1.2 draw?
- Each Planar Komodo 1.2 cabinet draws up to 85 W at full white and about 28 W with typical content — 420 W/m² max. A 10-cabinet wall therefore needs up to 850 W plus headroom.
- What is the resolution of the Planar Komodo 1.2?
- One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a Planar Komodo 1.2 wall?
- A single cabinet weighs 4.8 kg (23.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 72 kg before mounting structure.
- Is the Planar Komodo 1.2 suitable for outdoor use?
- No — the Planar Komodo 1.2 is an indoor cabinet. Its 1,000 nits suit controlled lighting, not direct sun.
