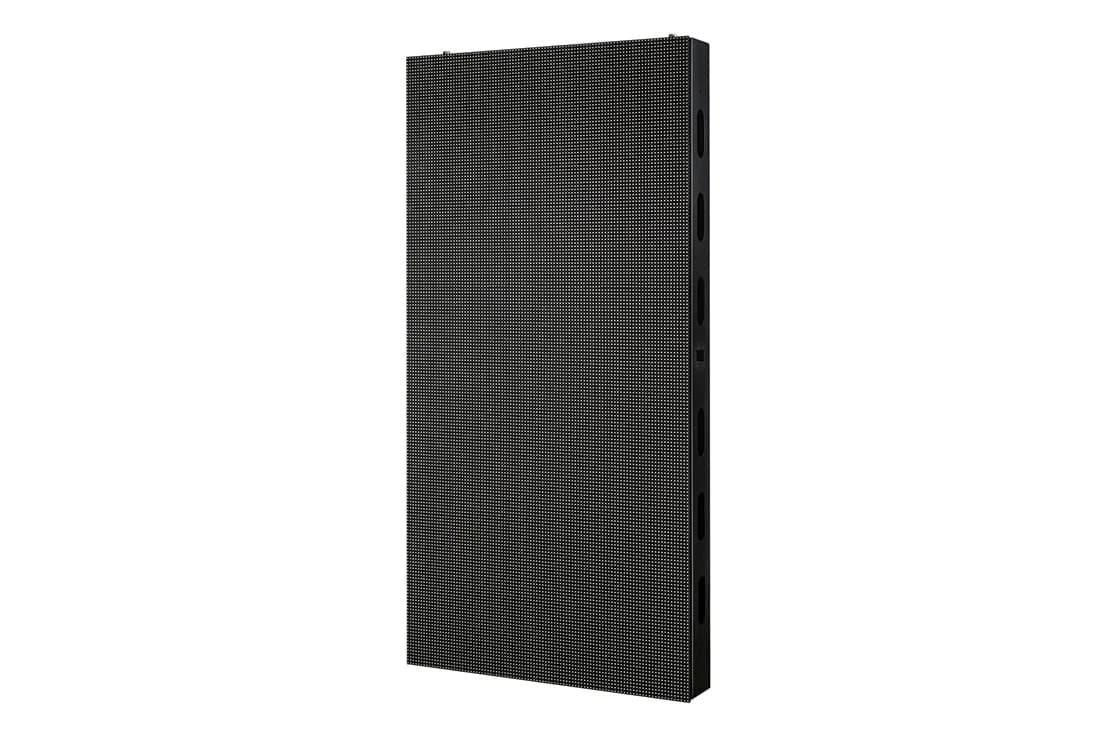

LG GNEA083 specs
GNEA083 is a high bright DVLED with an IP67 rating. It offers a high refresh rate and easy to install and maintain.
Physical
- Pixel pitch
- 8.33 mm
- Cabinet size (W×H×D)
- 800 × 1,600 × 144 mm
- Weight
- 40 kg
- Weight per m²
- 31.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Rear
- Cabinet resolution
- 96 × 192 px (1:2)
- Pixel density
- 14,400 px/m²
- Brightness (calibrated)
- 6,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 125°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 950 W
- Average power
- 380 W
- Max power per m²
- 742 W/m²
- Average power per m²
- 297 W/m²
- Thermal load
- 3,241 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP67
- IP rating (rear)
- IP67
- Operating temperature
- -30 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, FCC, ETL, Seaside
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Short description
- Outdoor LED Display for Seaside Environments
- Operating humidity
- 0 ~ 90%
- Pixel configuration
- Single SMD
All variations in the GNEA series
All LG cabinets →Every LG GNEA series cabinet and the exact pitch, size and brightness pairing it ships with.
- LG GNEA0626.25 mm800×1600 mm6,000 nits
- GNEA083this model8.33 mm800×1600 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 18,432 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
14,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
14,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
7,649cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
7,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG GNEA083 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the LG GNEA083 draw?
- Each LG GNEA083 cabinet draws up to 950 W at full white and about 380 W with typical content — 742 W/m² max. A 10-cabinet wall therefore needs up to 9,500 W plus headroom.
- What is the resolution of the LG GNEA083?
- One cabinet is 96 × 192 pixels at a 8.33 mm pixel pitch (14,400 px/m²). About 40 cabinets side by side reach 4K width (≈ 32.00 m).
- How heavy is a LG GNEA083 wall?
- A single cabinet weighs 40 kg (31.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 600 kg before mounting structure.
- Is the LG GNEA083 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP67 front ingress protection and 6,000 nits of calibrated brightness.
