Sharp LD-FA122 specs

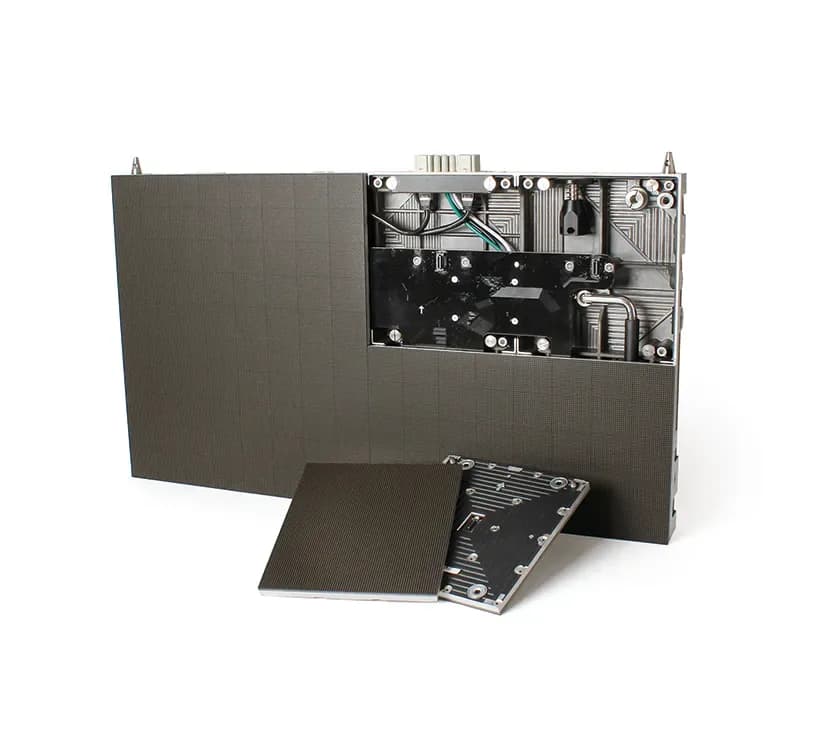

The Sharp FA Series provides crystal clear images for the ultimate visual experience and are the ideal solutions for today's most demanding applications. With 7 different fine pixel pitches (0.95mm, 1.2mm, 1.5mm, 1.9mm, 2.5mm, 3.1mm and 3.8mm) the optimum display resolution can be achieved regardless of viewing distance. The LD-FA122 is a 1.26mm pixel pitch module designed for vibrant and colorful content visualization delivering unmatched brightness among fine-pitch dvLEDs. Control rooms, corporate signage, retail and airport signage, situational awareness, broadcast and museums are just some of the applications where the Sharp FA series is designed to be integrated. The FA Series is engineered with high quality Multi-Color LEDs that deliver industry-leading imaging and reliability with no external cables required for installation. Built-in data and power redundancy with a front serviceable design helps to minimize downtime and deliver unmatched reliability. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
Physical
- Pixel pitch
- 1.2667 mm
- Cabinet size (W×H×D)
- 608 × 342 × 49 mm
- Weight
- 8.8 kg
- Weight per m²
- 42.3 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 623,269 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 170° / 170°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 125 W
- Average power
- 66 W
- Max power per m²
- 601 W/m²
- Average power per m²
- 317 W/m²
- Thermal load
- 427 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CCC, CE, ETL, FCC Class A, RoHS
Manufacturer details
- Dimming
- 256 levels
- Scan rate
- 1/27 dynamic scan
- Data input
- 2x 1000BaseT RJ-45
- Redundancy
- data + power redundancy (2× RJ-45)
- Brochure url
- https://business.sharpusa.com/Portals/0/downloads/Literature/ld-fa092-fa122-fa152-fa192-fa252-fa312-fa382-brochure.pdf
- Product group
- 1.26mm dvLED display
- Site category
- US catalogue
- Frame rates hz
- 60
- Cabinet material
- Aluminum Cabinet
- Color temperature
- 3000-9500 K
- Contrast published
- 5000:1
- Lifetime published
- 100,000 hours
- Operating humidity
- 10–80 %
- Grayscale published
- Up to 16 bit
- Pixel configuration
- Multi-Color SMD (1010) / 3-1 SMD (Black)
- Brightness published
- 800 cd/m² typical / 880 cd/m² maximum
- Refresh rate published
- Up to 3840 Hz
All variations in the LD-FA series
All Sharp cabinets →Every Sharp LD-FA series cabinet and the exact pitch, size and brightness pairing it ships with.
- Sharp LD-FA0920.95 mm608×342 mm600 nits
- Sharp LD-FA092-U0.95 mm3660×2160 mm600 nits
- LD-FA122this model1.2667 mm608×342 mm800 nits
- Sharp LD-FA122-F1.2667 mm2444×1476 mm800 nits
- Sharp LD-FA122-U1.2667 mm4876×2844 mm800 nits
- Sharp LD-FA1521.5833 mm608×342 mm800 nits
- Sharp LD-FA152-F1.5833 mm3052×1818 mm800 nits
- Sharp LD-FA1921.9 mm608×342 mm800 nits
- Sharp LD-FA192-F1.9 mm3660×2160 mm800 nits
- Sharp LD-FA2522.5333 mm608×342 mm1,200 nits
- Sharp LD-FA252-F2.5333 mm4876×2844 mm1,200 nits
- Sharp LD-FA3123.1667 mm608×342 mm1,200 nits
- Sharp LD-FA3823.8 mm608×342 mm1,200 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-FA122 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Sharp LD-FA122 draw?
- Each Sharp LD-FA122 cabinet draws up to 125 W at full white and about 66 W with typical content — 601 W/m² max. A 10-cabinet wall therefore needs up to 1,250 W plus headroom.
- What is the resolution of the Sharp LD-FA122?
- One cabinet is 480 × 270 pixels at a 1.2667 mm pixel pitch (623,269 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.86 m).
- How heavy is a Sharp LD-FA122 wall?
- A single cabinet weighs 8.8 kg (42.3 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 132 kg before mounting structure.
- Is the Sharp LD-FA122 suitable for outdoor use?
- No — the Sharp LD-FA122 is an indoor cabinet (IP20 front). Its 800 nits suit controlled lighting, not direct sun.
Size a wall with the LD-FA122
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
