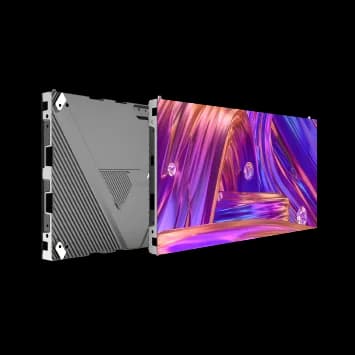

Absen KLCOB1.2 V2 specs
The KLCOB V2 series is the professional MicroLED solution by Absen. The product adopts Micro LED technology, which is stable and reliable, and has strong protective performance.
Physical
- Pixel pitch
- 1.25 mm
- Cabinet size (W×H×D)
- 600 × 338 × 39 mm
- Weight
- 4.5 kg
- Weight per m²
- 22.2 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 639,053 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 15,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- COB
- Processing depth
- 19 bit
Power & thermal
- Max power
- 71 W
- Average power
- 24 W
- Max power per m²
- 350 W/m²
- Average power per m²
- 118 W/m²
- Thermal load
- 242 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- 10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CCC, CE, ETL, FCC, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • business display. • Flip chip technology provides high brightness and efficient heat dissipation • The surface is covered with a black coating of polymer material, which brings amazing black consistency • Lightweight design, the max. weight of panel is 4.5kg(9.92lbs), thickness is 39.3mm(1.54") • Easy to clean, a wet towel can be used for usual cleaning Excellent flatness and front maintenance • High reliability, dual backup power and signal ,two power source inputs
- Operating humidity
- 10 ~ 80%
- Pixel configuration
- Flip Chip RGB
All variations in the KLCOB V2 series
All Absen cabinets →Every Absen KLCOB V2 series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen KLCOB0.7 V20.78 mm600×338 mm800 nits
- Absen KLCOB0.9 V20.94 mm600×338 mm800 nits
- KLCOB1.2 V2this model1.25 mm600×338 mm800 nits
- Absen KLCOB1.5 V21.56 mm600×338 mm800 nits
- Absen KLCOB1.8 V21.88 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen KLCOB1.2 V2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen KLCOB1.2 V2 draw?
- Each Absen KLCOB1.2 V2 cabinet draws up to 71 W at full white and about 24 W with typical content — 350 W/m² max. A 10-cabinet wall therefore needs up to 710 W plus headroom.
- What is the resolution of the Absen KLCOB1.2 V2?
- One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (639,053 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a Absen KLCOB1.2 V2 wall?
- A single cabinet weighs 4.5 kg (22.2 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 68 kg before mounting structure.
- Is the Absen KLCOB1.2 V2 suitable for outdoor use?
- No — the Absen KLCOB1.2 V2 is an indoor cabinet (IP40 front). Its 800 nits suit controlled lighting, not direct sun.
