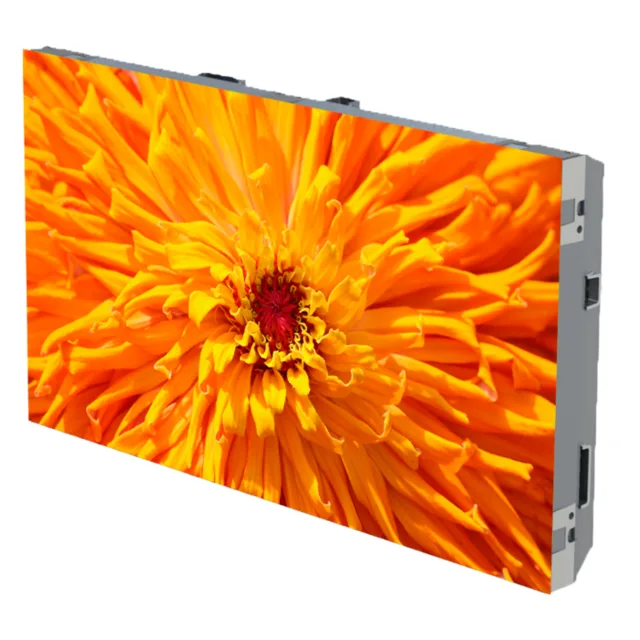

Planar DLU-1.2 specs
Planar® DirectLight® Ultra™ Series LED video walls deliver an always-on, high-performance, high-resolution display experience with the finest pixel pitches from 0.7 to 1.2 millimeters for mission-critical and high-end applications. The Planar DirectLight Ultra Series features several display technology advancements, including MicroLED, that combine to deliver high performance.
Physical
- Pixel pitch
- 1.25 mm
- Cabinet size (W×H×D)
- 600 × 338 × 69 mm
- Weight
- 9 kg
- Weight per m²
- 44.4 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 480 × 270 px (16:9)
- Pixel density
- 640,000 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 7,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 28 W
- Average power
- 9 W
- Max power per m²
- 140 W/m²
- Average power per m²
- 44 W/m²
- Thermal load
- 97 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 35 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Power supply
- Planar RPS
- Frame rates hz
- 50/60
- Pitch published
- 1.2
- Color temperature
- 3000-10000 adjustable
- Module dimensions
- 150 x 168.75 mm
- Module resolution
- 120 x 135
- Module composition
- 4 x 2
- Pixel configuration
- SMD RGB
All variations in the DirectLight Ultra series
All Planar cabinets →Every Planar DirectLight Ultra series cabinet and the exact pitch, size and brightness pairing it ships with.
- Planar DLU-0.70.78125 mm600×338 mm1,200 nits
- Planar DLU-0.90.9375 mm600×338 mm1,600 nits
- DLU-1.2this model1.25 mm600×338 mm800 nits
Controllers that drive this panel
All controllers →Each cabinet carries 129,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,087cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Planar DLU-1.2 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Planar DLU-1.2 draw?
- Each Planar DLU-1.2 cabinet draws up to 28 W at full white and about 9 W with typical content — 140 W/m² max. A 10-cabinet wall therefore needs up to 284 W plus headroom.
- What is the resolution of the Planar DLU-1.2?
- One cabinet is 480 × 270 pixels at a 1.25 mm pixel pitch (640,000 px/m²). About 8 cabinets side by side reach 4K width (≈ 4.80 m).
- How heavy is a Planar DLU-1.2 wall?
- A single cabinet weighs 9 kg (44.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 135 kg before mounting structure.
- Is the Planar DLU-1.2 suitable for outdoor use?
- No — the Planar DLU-1.2 is an indoor cabinet. Its 800 nits suit controlled lighting, not direct sun.
Size a wall with the DLU-1.2
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
