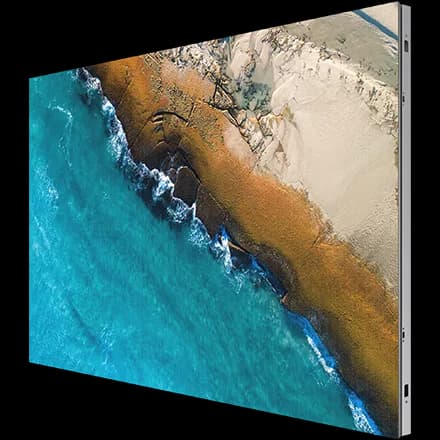

Samsung IW009B specs
Make a bold statement with The Wall. Samsung's rich R&D heritage and LED expertise culminates in The Wall, delivering the ultimate viewing experience. Make every experience immersive and deliver a perfect view of your business.
Physical
- Pixel pitch
- 0.945 mm
- Cabinet size (W×H×D)
- 1,210 × 680 × 60 mm
- Weight
- 22.1 kg
- Weight per m²
- 26.9 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 1,280 × 720 px (16:9)
- Pixel density
- 1,119,789 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 12,000:1
- Viewing angle (H/V)
- 170° / 155°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 264 W
- Average power
- 161 W
- Max power per m²
- 321 W/m²
- Average power per m²
- 196 W/m²
- Thermal load
- 901 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 150,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class B, TUV Eye Comfort
Manufacturer details
- Usage
- indoor
- Features
- led-hdr,hdr10,hdr10+,vxt,power-redundancy
- Power supply
- 100 to 240
- Weight published
- 22.1 Kg
- Color temperature
- 6,500K ± 500K
- Contrast published
- 12,000:1
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH009IWBMES
- Pixel configuration
- Flip-chip RGB LED (1R1G1B)
- Brightness published
- 1,200 nit / 600 nit
- Installation options
- flat
All variations in the IWB series
All Samsung cabinets →Every Samsung IWB series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IW006B0.63 mm1210×680 mm400 nits
- IW009Bthis model0.945 mm1210×680 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 921,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- NovaStar MX6000 ProNovaStarConfirm ecosystem
152cabinets
64 × Mixed141M px total · capacity-bound
Wire it - Brompton Technology Tessera SQ200BromptonConfirm ecosystem
38cabinets
2 × Fibre36M px total · port-bound
Wire it - NovaStar MX2000 ProNovaStarConfirm ecosystem
38cabinets
16 × Mixed35.4M px total · capacity-bound
Wire it - LG CEAAManufacturer's ownConfirm ecosystem
36cabinets
12 × Fibre33.2M px total · port-bound
Wire it - Megapixel VR HELIOS 8KMegapixelConfirm ecosystem
32cabinets
8 × Fibre35M px total · port-bound
Wire it - Samsung SNOW-AAEManufacturer's ownConfirm ecosystem
32cabinets
8 × Fibre33.2M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IW009B in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IW009B draw?
- Each Samsung IW009B cabinet draws up to 264 W at full white and about 161 W with typical content — 321 W/m² max. A 10-cabinet wall therefore needs up to 2,640 W plus headroom.
- What is the resolution of the Samsung IW009B?
- One cabinet is 1,280 × 720 pixels at a 0.945 mm pixel pitch (1,119,789 px/m²). About 3 cabinets side by side reach 4K width (≈ 3.63 m).
- How heavy is a Samsung IW009B wall?
- A single cabinet weighs 22.1 kg (26.9 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 332 kg before mounting structure.
- Is the Samsung IW009B suitable for outdoor use?
- No — the Samsung IW009B is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
