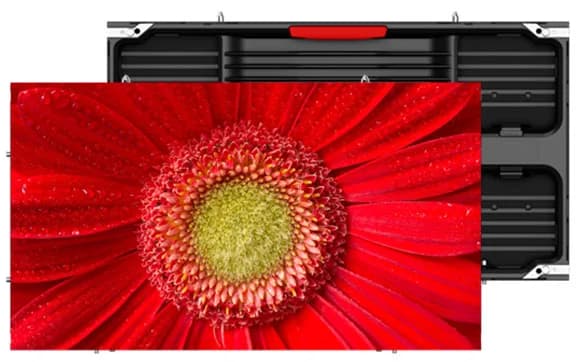

Leyard MGP0.9 specs
Planar® MGP Series fine pixel pitch LED video wall displays offer organizations a seamless, high resolution visual experience, at a value similar to a tiled LCD video wall, ideal for traditionally budget-conscious markets like house of worship, education and midsized business.
Physical
- Pixel pitch
- 0.9375 mm
- Cabinet size (W×H×D)
- 600 × 338 × 53 mm
- Weight
- 6.1 kg
- Weight per m²
- 30 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 640 × 360 px (16:9)
- Pixel density
- 1,137,778 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
Power & thermal
- Max power
- 120 W
- Average power
- 40 W
- Max power per m²
- 593 W/m²
- Average power per m²
- 198 W/m²
- Thermal load
- 409 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Marketed by
- Leyard Europe (EMEA)
- Frame rates hz
- 50/60
- Pitch published
- 0.937
- Power published
- 120 W/Cabinet
- Color temperature
- 3000-10000
- Module dimensions
- 150x337.5 mm
- Module composition
- 4x1
- Pixel configuration
- SMD
All variations in the MGP series
All Leyard cabinets →Every Leyard MGP series cabinet and the exact pitch, size and brightness pairing it ships with.
- Leyard MGP-0.9 micro0.9375 mm600×338 mm1,500 nits
- MGP0.9this model0.9375 mm600×338 mm600 nits
- Leyard MGP1.21.25 mm600×338 mm600 nits
- Leyard MGP1.51.5625 mm600×338 mm600 nits
- Leyard MGP1.81.875 mm600×338 mm600 nits
- Leyard MGP2.52.5 mm600×338 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 230,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
611cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Leyard MGP0.9 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Leyard MGP0.9 draw?
- Each Leyard MGP0.9 cabinet draws up to 120 W at full white and about 40 W with typical content — 593 W/m² max. A 10-cabinet wall therefore needs up to 1,200 W plus headroom.
- What is the resolution of the Leyard MGP0.9?
- One cabinet is 640 × 360 pixels at a 0.9375 mm pixel pitch (1,137,778 px/m²). About 6 cabinets side by side reach 4K width (≈ 3.60 m).
- How heavy is a Leyard MGP0.9 wall?
- A single cabinet weighs 6.1 kg (30 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 91 kg before mounting structure.
- Is the Leyard MGP0.9 suitable for outdoor use?
- No — the Leyard MGP0.9 is an indoor cabinet. Its 600 nits suit controlled lighting, not direct sun.
