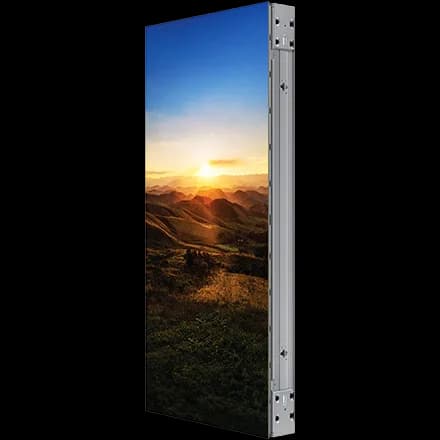

Samsung IV021C specs
The ultimate picture quality comes to your studio with The Wall IVC Virtual LED Series. Tap into powerful production capabilities and display stunning scenes on the screen. Samsung's visual technology helps you capture impressive levels of detail, texture, volume, and shades in virtual content creation environments.
Physical
- Pixel pitch
- 2.1 mm
- Cabinet size (W×H×D)
- 403 × 907 × 83 mm
- Weight
- 13.3 kg
- Weight per m²
- 36.4 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 192 × 432 px (4:9)
- Pixel density
- 226,864 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 12,288 Hz
- Contrast
- 35,000:1
- Viewing angle (H/V)
- 170° / 155°
- LED type
- COB
- Processing depth
- 16 bit
Power & thermal
- Max power
- 180 W
- Average power
- 80 W
- Max power per m²
- 492 W/m²
- Average power per m²
- 219 W/m²
- Thermal load
- 614 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- 0 to 40 °C
- LED lifetime
- 150,000 h
- Certifications
- IEC 62368-1, IEC 60950-1, EMC Class A
Manufacturer details
- Usage
- indoor,virtual-production
- Features
- hdr10,hdr10+
- Power supply
- 100 to 240
- Frame rates hz
- up to 384
- Weight published
- 13.3 (kg
- Color temperature
- 6,500K ± 500K
- Contrast published
- 35,000:1
- Operating humidity
- 10 ~ 80%
- Samsung model code
- LH021IVCMVS
- Pixel configuration
- Flip-chip RGB LED
- Brightness published
- 1,500 nit
- Installation options
- flat,concave,inner-l,hanging,stacking
All variations in the IVC series
All Samsung cabinets →Every Samsung IVC series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung IV016C1.68 mm403×907 mm1,500 nits
- IV021Cthis model2.1 mm403×907 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 82,944 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,699cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung IV021C in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung IV021C draw?
- Each Samsung IV021C cabinet draws up to 180 W at full white and about 80 W with typical content — 492 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
- What is the resolution of the Samsung IV021C?
- One cabinet is 192 × 432 pixels at a 2.1 mm pixel pitch (226,864 px/m²). About 20 cabinets side by side reach 4K width (≈ 8.06 m).
- How heavy is a Samsung IV021C wall?
- A single cabinet weighs 13.3 kg (36.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 200 kg before mounting structure.
- Is the Samsung IV021C suitable for outdoor use?
- No — the Samsung IV021C is an indoor cabinet (IP20 front). Its 1,500 nits suit controlled lighting, not direct sun.
