2.23214 mm pitchIndoorSMD

ROE Visual RB2.2 specs

How to comprise the latest technology into an advanced LED panel and translate that into an outstanding viewing experience? ROE Visual has done just that. Equipped with specialized LEDs for different segments, the Ruby platform developed Ruby VP series for Film and Broadcast, and Ruby Rental series. The Ruby LED panels are a new generation of LED panels equipped with beneficial features from build to performance.

Pitch
1.25 mm1.5625 mm1.95312 mm2.23214 mm2.60417 mm
Size
500×500 mm
Nits
800 nits1,500 nits2,500 nits
Open in calculatorCompareControllersRunning cost

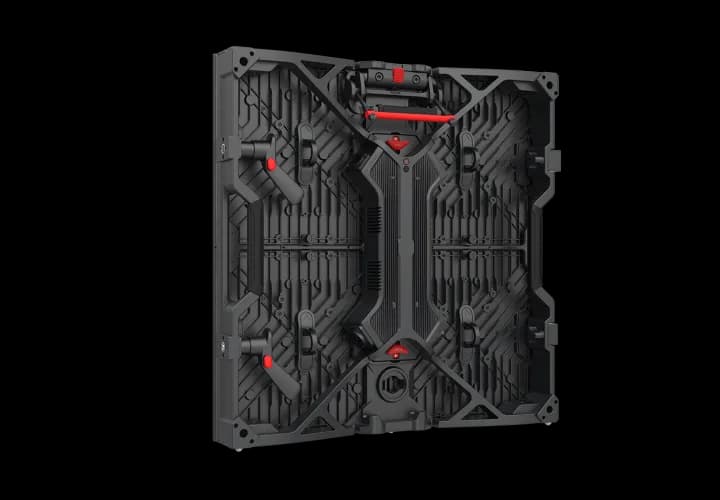

ROE Visual RB2.2 LED cabinet

Physical

Pixel pitch
2.23214 mm
Cabinet size (W×H×D)
500 × 500 × 73 mm
Weight
8.2 kg
Weight per m²
33 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
224 × 224 px (1:1)
Pixel density
200,704 px/m²
Brightness (calibrated)
1,500 nits
Refresh rate
7,680 Hz
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
160 W
Average power
80 W
Max power per m²
640 W/m²
Average power per m²
320 W/m²
Thermal load
546 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, CB, ETL, FCC, UKCA, WEEE

Manufacturer details

Scan rate
1/8
Curve range
Concave 5° ~ Convex 5°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Ruby/ruby-1.5fand1.9fand2.2fand2.6f-(vp)-brochure.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Btu published
545 / 250
Pitch published
2.23mm
Power published
160W / 80W
Weight published
8.24kg / 18.17lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1212 Black
Brightness published
1500nits
Dimensions published
500mm x 500mm x 73mm 19.7” x 19.7” x 2.87”
Service access published
Front / Rear

All variations in the Ruby series

All ROE Visual cabinets →

Every ROE Visual Ruby series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 50,176 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual RB2.2 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual RB2.2 draw?
Each ROE Visual RB2.2 cabinet draws up to 160 W at full white and about 80 W with typical content — 640 W/m² max. A 10-cabinet wall therefore needs up to 1,600 W plus headroom.
What is the resolution of the ROE Visual RB2.2?
One cabinet is 224 × 224 pixels at a 2.23214 mm pixel pitch (200,704 px/m²). About 17 cabinets side by side reach 4K width (≈ 8.50 m).
How heavy is a ROE Visual RB2.2 wall?
A single cabinet weighs 8.2 kg (33 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 124 kg before mounting structure.
Is the ROE Visual RB2.2 suitable for outdoor use?
No — the ROE Visual RB2.2 is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
